IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
KA82-2500F Tape programming machine
1.Supports tape‑in IC feeding. Compatible with tape‑and‑reel incoming materials for automatic IC programming workflow.
2.Equipped with 12 programming stations; 1‑12 stations configurable to meet different high‑volume production requirements.
3.Automatically records OK & NG chip counts for production traceability. User‑friendly interface ensures simple and convenient operation.
4.Supports flexible product change‑over to adapt to various IC chip programming projects.
Please include the IC model, package, input format and target UPH.
KA82-2500F tape programming machine
1.Supports tape‑in IC feeding. Accepts tape‑and‑reel packaged ICs as incoming material to build a streamlined automatic programming workflow.
2.Comes with 12 programming stations in total. 1‑12 stations are configurable, allowing flexible setup to match variable high‑volume production targets.
3.Automatically counts and records OK & NG chip quantities, providing complete production traceability for quality‑control review. Intuitive human‑machine interface delivers simple, convenient operation for operators.
4.Optimized mechanical structure enables stable long‑duration continuous operation, reducing unexpected downtime during mass‑production runs.
5.Quick product change‑over design. Easy adjustment to handle different IC types, saving setup time for frequent‑order switching.
6.Real‑time production data display, operators can directly check running status, throughput and yield on the machine screen.
Technical parameters：
| Output efficiency | 2500UPH |
| Overall size | 1600*1100*1600mm |
| Supports ic packaging | SOP/SSOP/TSSOP/QFP..... |
| Programmming station | 12 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | PLC |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Total weight | 310 KG |
Suitable for programming chip packaging:
Product dimensions:

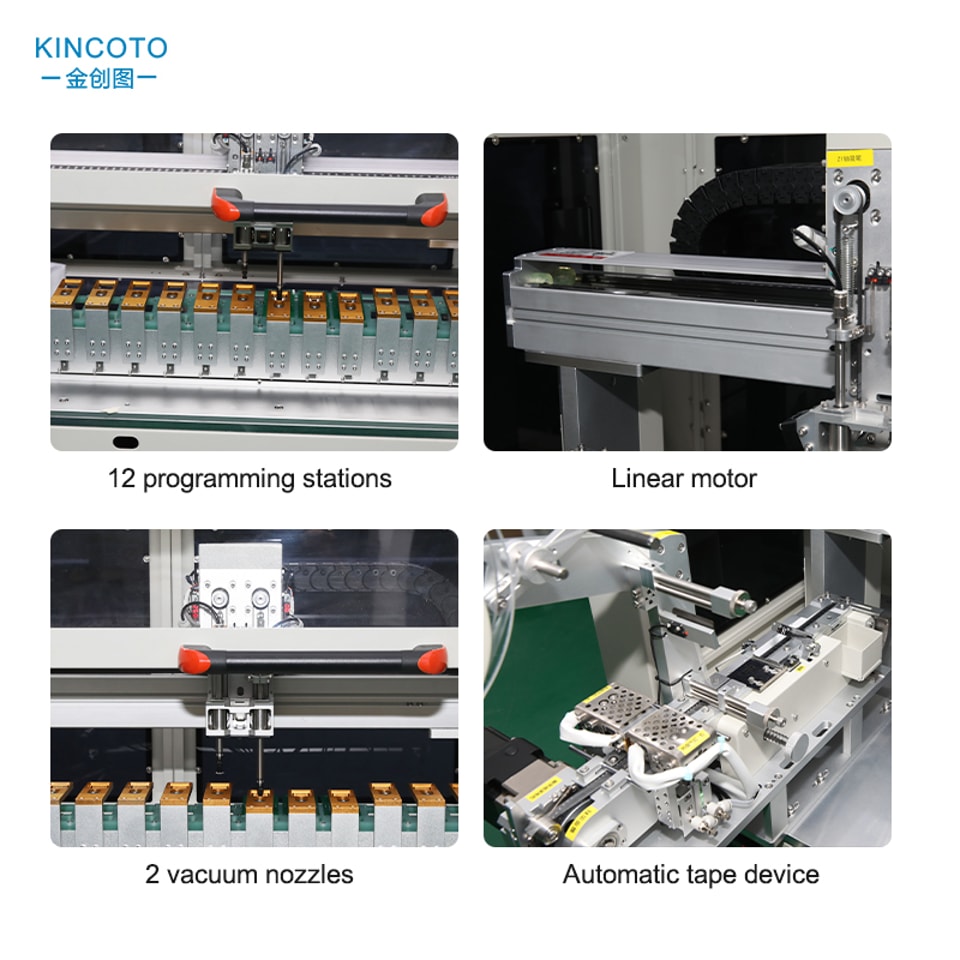

Product Structure：
Package：
Group photo during factory visit：
