IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
KA42-5000 Automatic tape programming machine
1.Supports tape‑in & tape‑out; auto tape‑and‑reel packaging after IC programming.
2.Max 6500 UPH throughput, 1‑8 configurable programming stations; auto OK/NG sorting.
3.High‑precision pick‑and‑place, user‑friendly operation.
4.Save & recall programming recipes anytime; interchangeable sockets support multiple IC packages.
Please include the IC model, package, input format and target UPH.

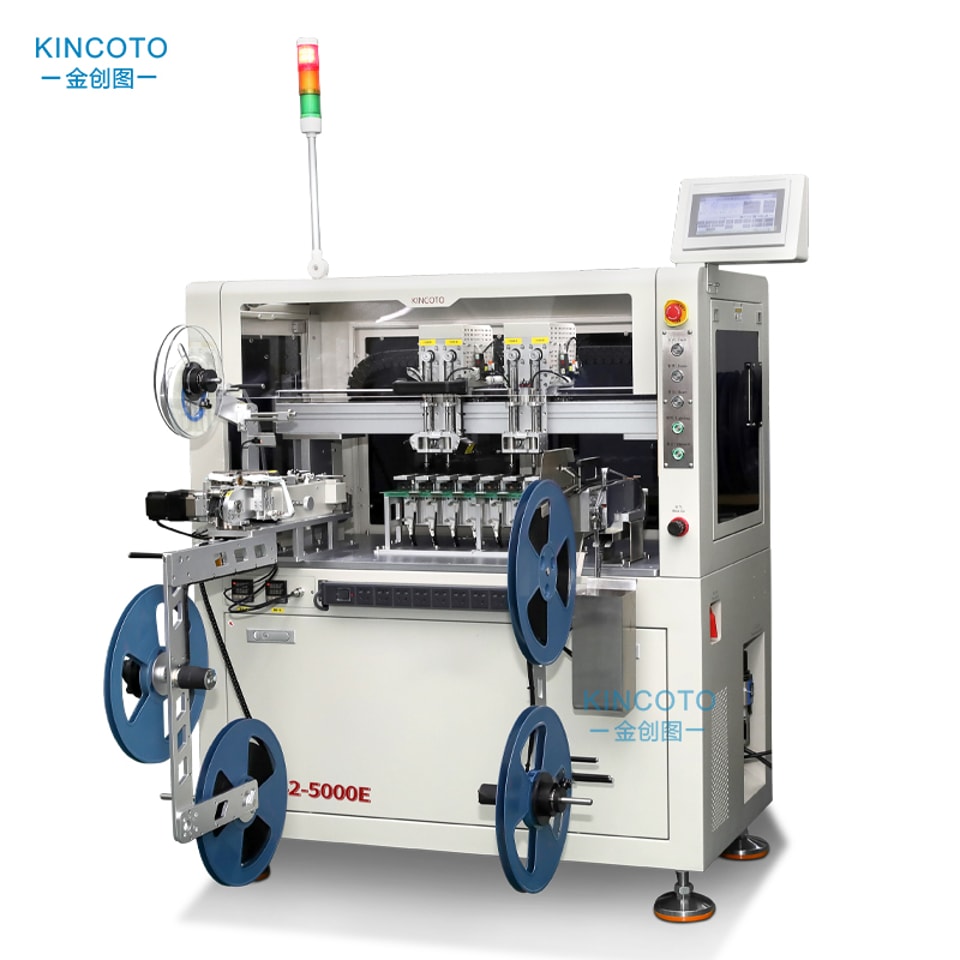

KA42-5000 Automatic tape programming machine
1.Supports tape‑in & tape‑out processing. Automatically completes tape‑and‑reel packaging after IC programming for unattended tape‑to‑tape production.
2.Delivers max throughput of 6500 UPH. 1‑8 configurable programming stations to match diverse production demands, with automatic OK/NG sorting for defective chip separation.
3.High‑precision pick‑and‑place performance. User‑friendly interface simplifies operation and lowers operator learning cost.
4.Save and quickly recall programming recipes for repeated orders. Interchangeable programming sockets support multiple IC packages for fast product change‑over.
5.Stable mechanical design ensures long‑term continuous running, minimizing unexpected downtime in mass‑volume production.
Technical parameters：
| Output efficiency | 6500UPH |
| Overall size | 1150*1080*1450mm |
| Supports ic packaging | SOP/SSOP/TSSOP/QFP..... |
| Programmming station | 8 stations |
| Pick-and-place device | 4 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | PLC |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Total weight | 255 KG |
Suitable for programming chip packaging:
Product dimensions:

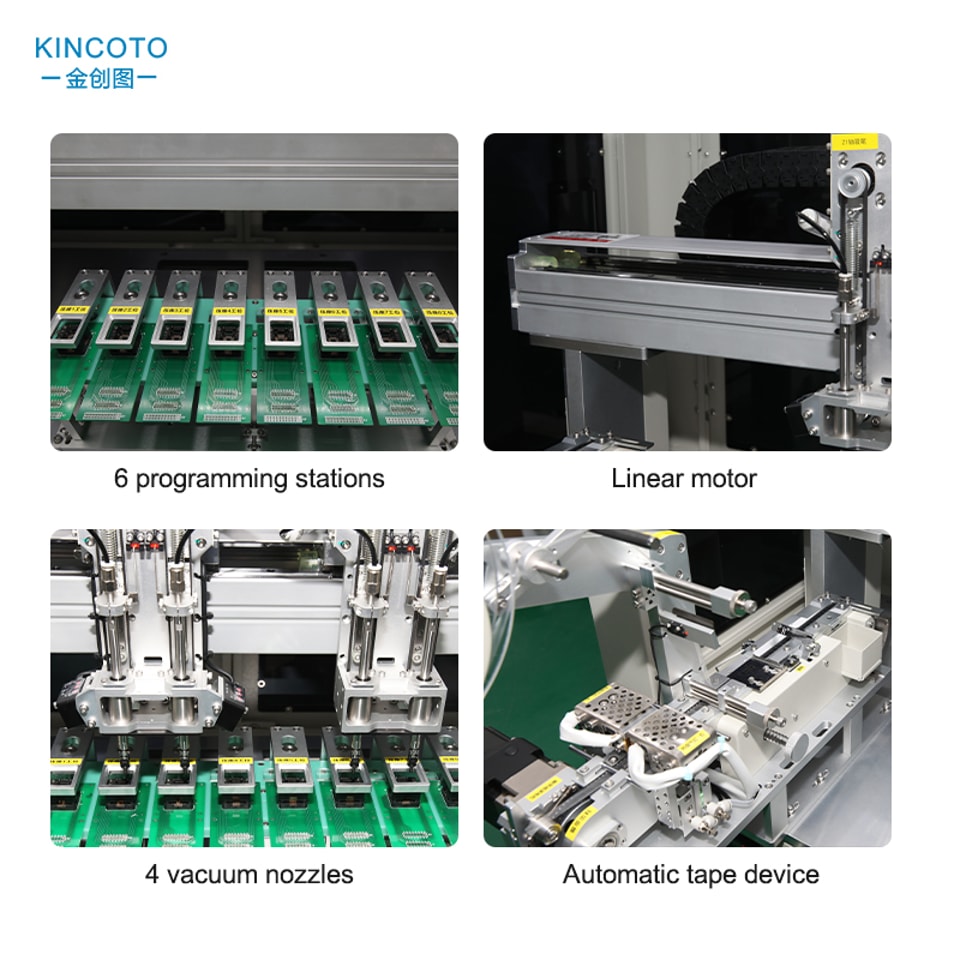

Product Structure：
Package：
Group photo during factory visit：
