IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
KA42‑3000 Automatic Tape programming machine with AOI
1.Supports tape‑in & tape‑out for ICs; auto‑tape‑and‑reel packaging after programming.
2.Max 2500 UPH, 4 programming stations; 1‑4 stations configurable; auto OK/NG sorting.
3.AOI offset correction for precise pick‑and‑place; camera detects chip orientation.
4.Save & recall programming recipes anytime; replaceable sockets support multiple IC packages.
Please include the IC model, package, input format and target UPH.

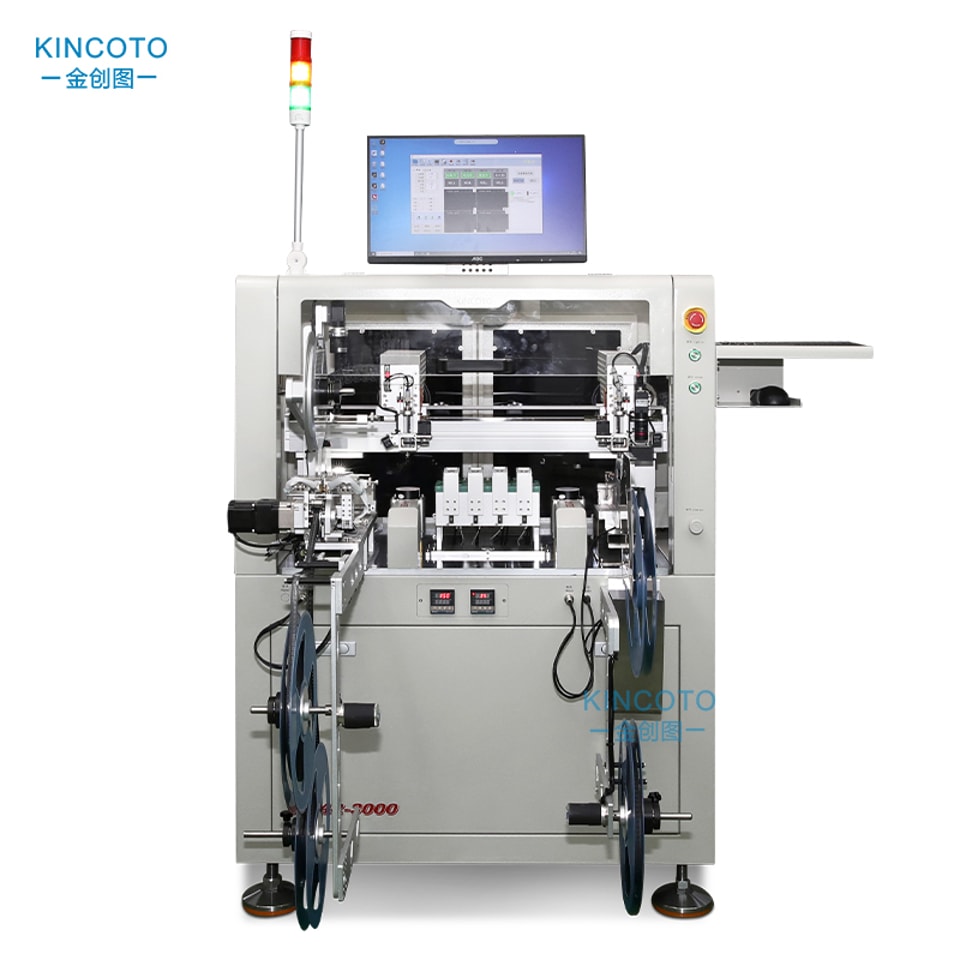

KA42-3000 Automatic tape programming machine with AOI
1.Supports tape‑in & tape‑out processing. Automatically performs tape‑and‑reel packaging after IC programming to realize unattended tape‑to‑tape mass production.
2.Max throughput up to 2500 UPH with 1‑4 configurable programming stations. Flexible setup adapts to different output requirements, and auto OK/NG sorting simplifies defective‑product handling.
3.Equipped with AOI offset correction for high‑precision pick‑and‑place. The vision camera detects chip orientation effectively to avoid reverse‑loading faults and reduce production rejects.
4.Store and quickly recall programming recipes for repeated orders. Interchangeable programming sockets support multiple IC packages, enabling fast product change‑over and lowering setup time.
5.Stable mechanical structure guarantees long‑run continuous operation, well‑suited for factory‑scale IC programming tasks.
Technical parameters：
| Output efficiency | 2500UPH |
| Overall size | 950*1080*1600mm |
| Supports ic packaging | SOP/SSOP/TSSOP/QFP..... |
| Programmming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | Motion control card |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Total weight | 280KG |
Suitable for programming chip packaging:
Product dimensions:

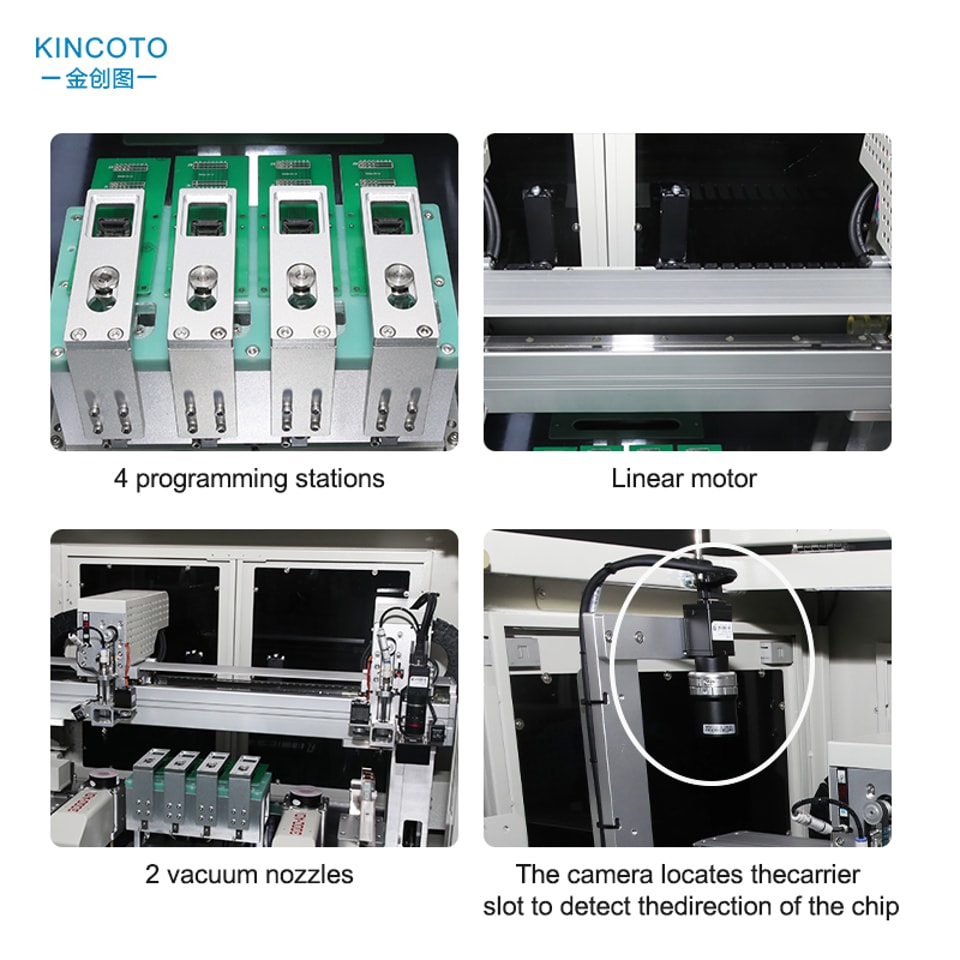

Product Structure：
Package：
