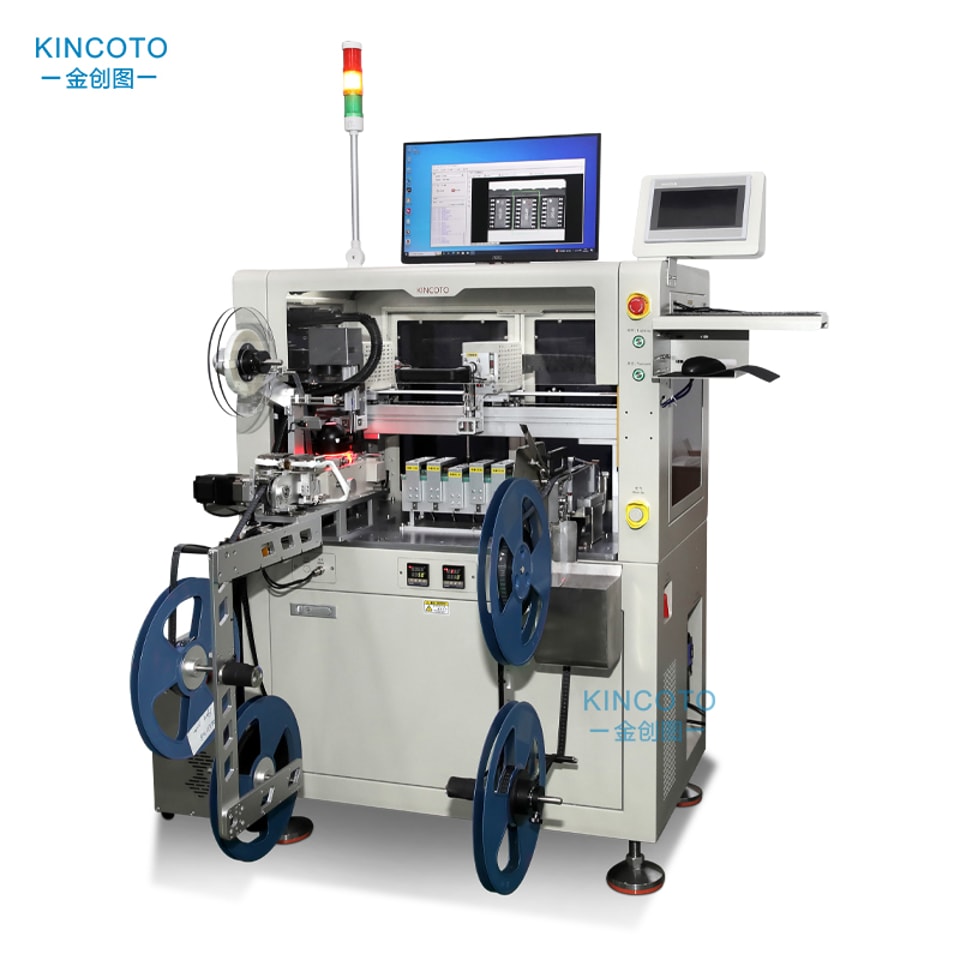

KA42-3000 Tape & Reel Programming Machine (with Laser Marking Function)
Output Efficiency: 3000UPH
Supported IC Packages: QFN, SOP, SSOP, TSSOP, SON, QFP, and more
Operation Modes: tape in/tape out
Functions: Laser Erasing & Marking + IC Programming(External offline programmer required)
Programming Stations: 6 stations (1-6 independently selectable)
Please include the IC model, package, input format and target UPH.
KA42-3000 Tape & Reel Programming Machine (with Laser Marking Function)
♦All-in-One Programming + Laser Marking – Integrated laser marking module for non-contact marking (logos, date codes, serial numbers) with no physical damage to chips
♦External Programmer Compatible – Standard signal interface (START, BUSY, OK, NG) connects to customer‘s own offline programmer – flexible and cost-effective

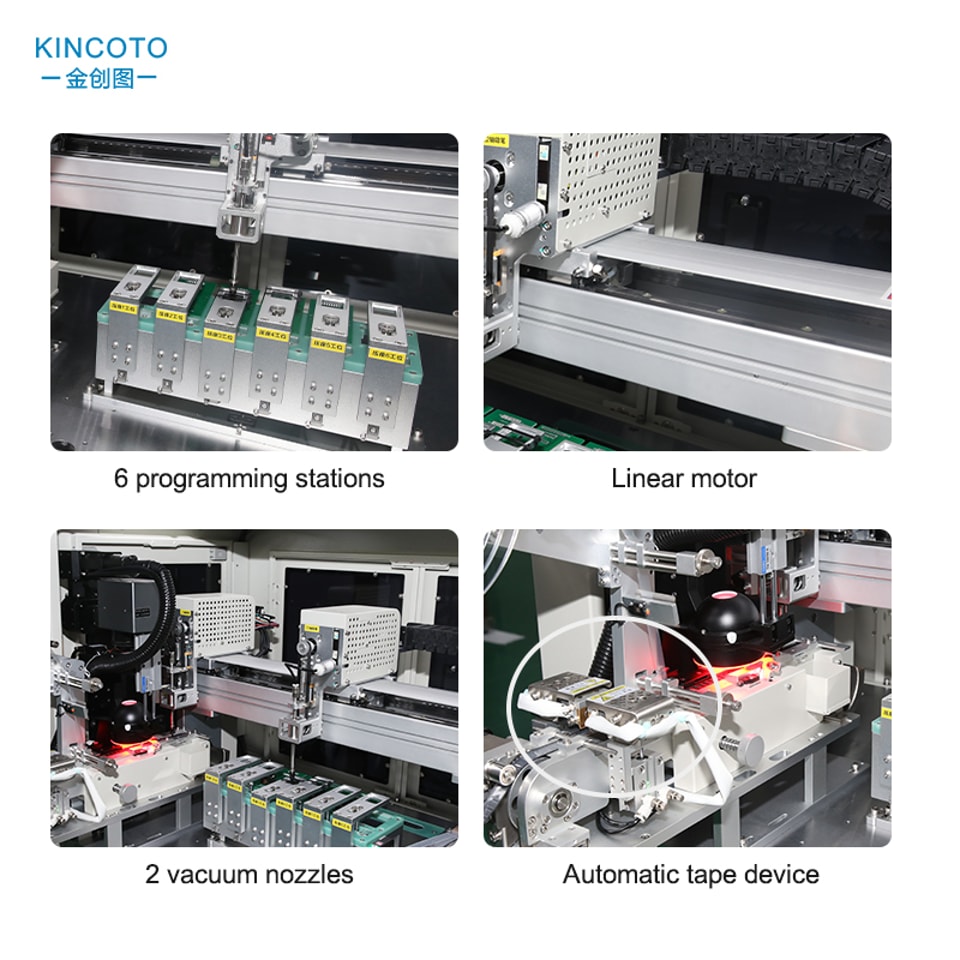

♦6 Programming Stations – 6 stations for parallel programming with adjustable low-contact-force design for fast response and consistent pressure
♦±0.03mm High Precision – Linear motor + 2 vacuum nozzles for accurate pick-and-place; built-in brake function prevents dropping during power failure, protecting chips from damage
♦Customized Programming Sockets – Plug-in sockets customized according to chip dimensions provided by customer; quick changeover between different IC types
♦Adjustable Hot-Compression Sealing Film Discharge Device – Supports 8–32mm tape widths with adjustable track for high compatibility
♦PLC Control – Stable and reliable control system for consistent programming and marking quality
♦MES System Integration – Full production traceability and data logging for quality control
♦Optional Functions – Dot marking, AOI detection for enhanced quality control
Technical parameters：
| Output Efficiency | 3,000 UPH |
| Host Size (L×W×H) | 950 × 580 × 1450 mm |
| Overall Size (L×W×H) | 950 × 1080 × 1450 mm |
| Supported IC Packages | QFN, SOP, SSOP, TSSOP, SON, QFP, and more |
| Programming Stations | 6 stations (1-6 independently selectable) |
| Pick & Place Device | 2 vacuum nozzles |
| Pick & Place Accuracy | ±0.03 mm |
| Monitor | 7" LCD touchscreen |
| Control Mode | PLC control |
| Functions | Laser Erasing & Marking + IC Programming (external programmer required) |
| Programmer Type | External offline programmer required |
| Signal Interface | START, BUSY, OK, NG standard signals for programmer connection |
| X-axis Drive | Linear motor |
| Tape Feeder | Standard 12–16 mm, optional 8/24/32/44 mm |
| Tape Discharging | Adjustable automatic hot-pressing film sealing device |
| Input Voltage | AC220V / 50Hz |
| Programming Mode | Down-pressure socket (plug-in type for quick changeover) |
| Power | 0.25 KW |
| Air Source | 0.4–0.6 MPA |
| Total Weight | 240 KG |
| Optional Functions | Dot marking, AOI detection |

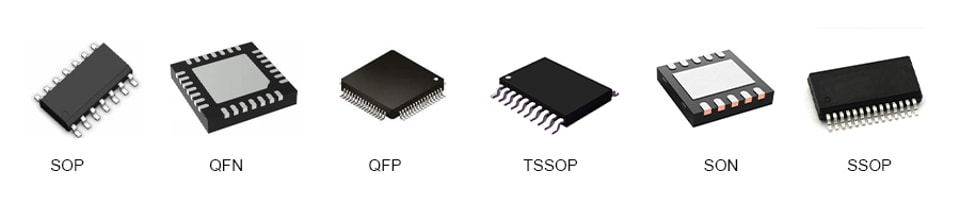

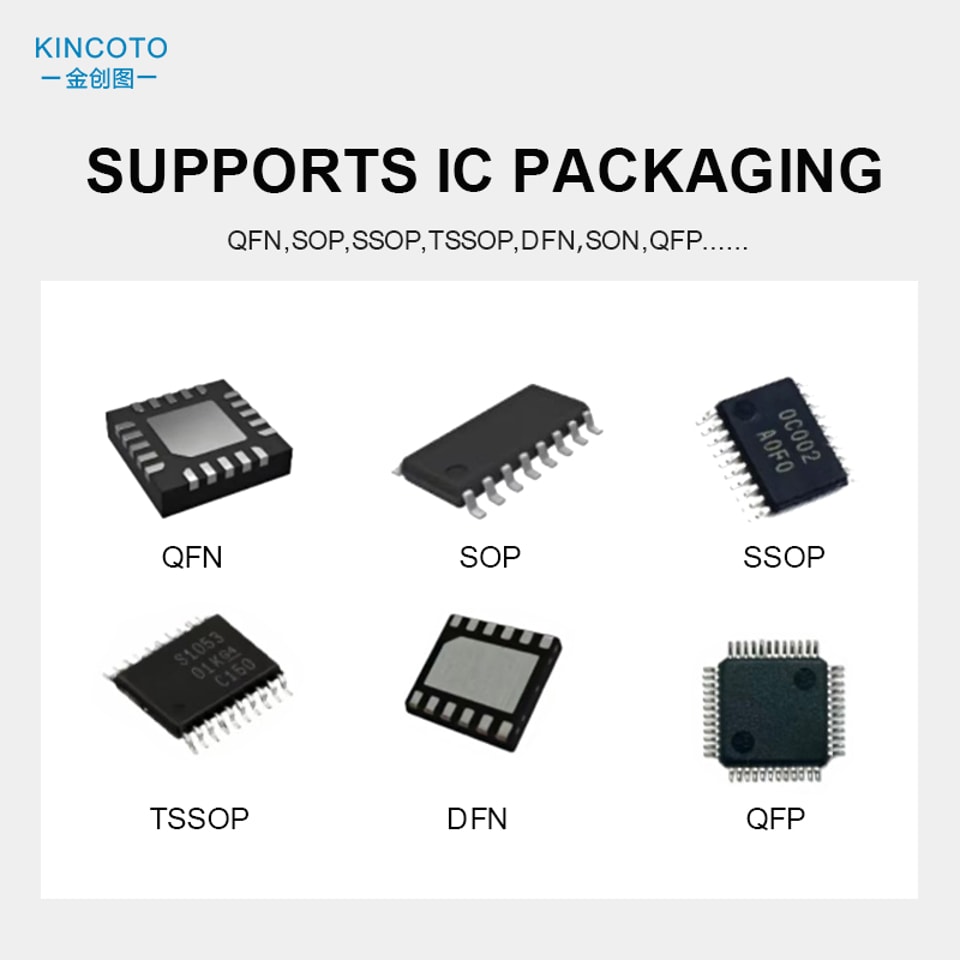

Suitable for programming chip packaging:

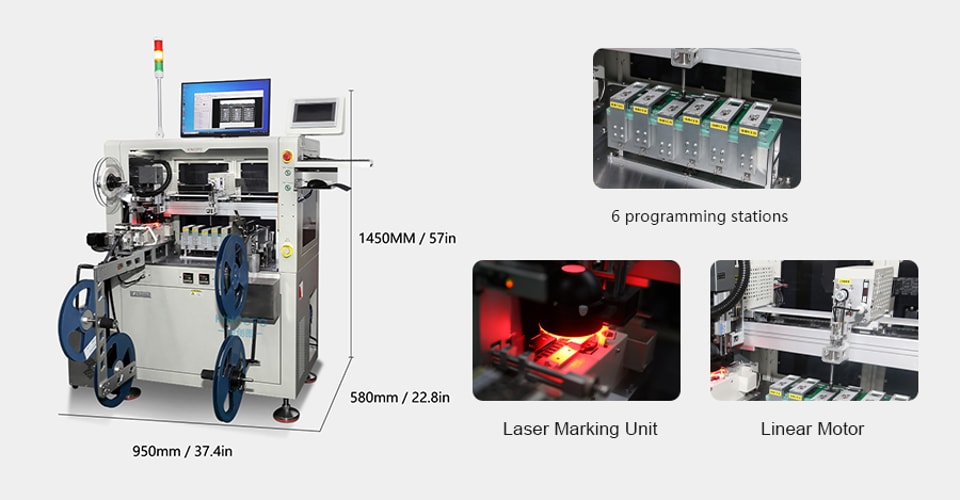

Product dimensions:

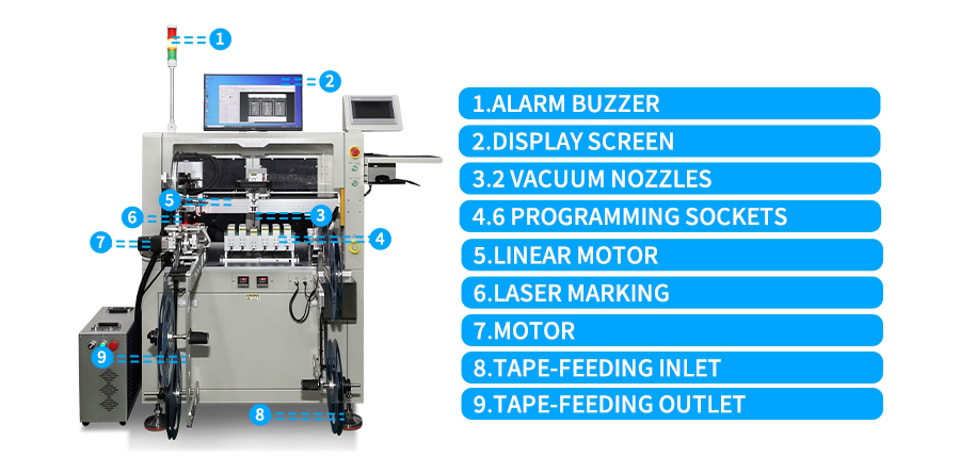

Product Structure：
Package：
