KINCOTO EQUIPMENT

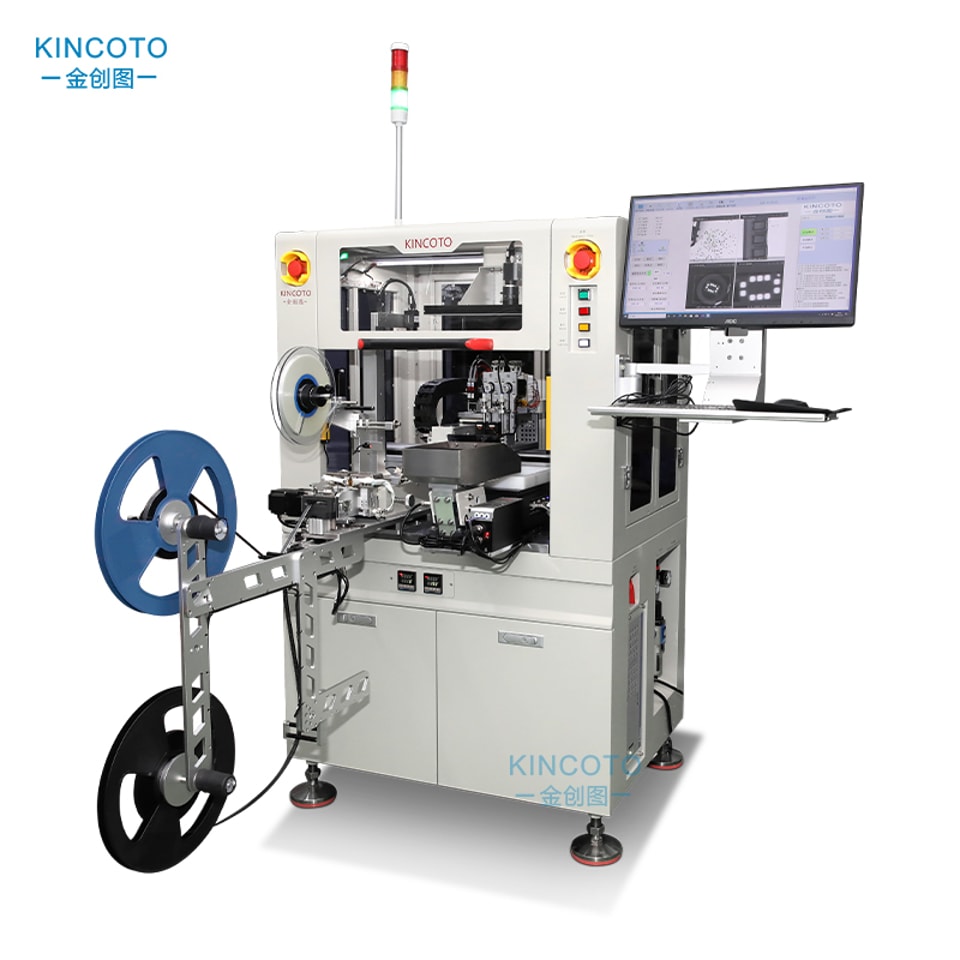

Bulk to Tape Packaging Machine (Single Head)
Output Efficiency: 2,500 UPH
Supported IC Packages: QFN, SOP
Operation Modes: loose bulk in/tape out
Machine function: packaging conversion
Visual System: high-precision CCD vision system
Please include the IC model, package, input format and target UPH.
Bulk to Tape Packaging Machine (Single Head)

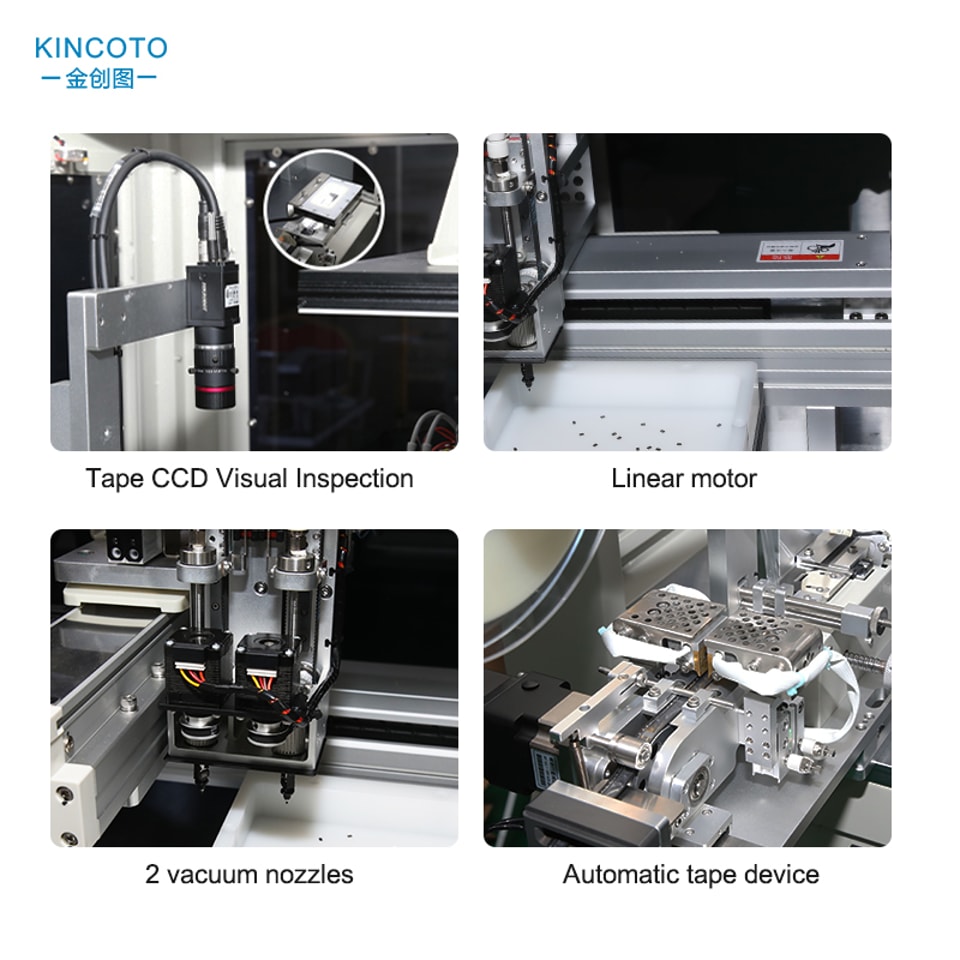

♦Bulk Material Feeding – Flexible vibratory feeder accepts loose bulk ICs – no tubes or trays required
♦Dual-Nozzle Pick & Place – 2 vacuum nozzles for increased productivity and faster cycle times
♦Dual CCD Vision System – Upper CCD (2000W) and lower CCD (130W) for precise orientation, angle detection, and pin inspection
♦All-in-One Process – Bulk feed → orientation detection → pick & place → heat sealing → reel winding – fully automated
♦High-Precision Linear Motor Drive – ±0.05mm accuracy with superior wear resistance and longer service life
♦Wide Tape Compatibility – Supports 8–44mm carrier tape widths for flexible packaging options
♦Heat Sealing Only – Stable and reliable heat sealing for consistent packaging quality
♦Bent Pin Detection – CCD vision system detects bent pins and defects before packaging
♦Compact Footprint – Small host size of 890×680×1475mm – saves valuable factory floor space
♦Pure Packaging Solution – Dedicated packaging machine with no programming, no marking, no printing – focused exclusively on packaging conversion
Technical parameters：
| Output Efficiency | 2500 UPH |
| Host Size (L×W×H) | 890 × 680 × 1475 mm |
| Host + Ribbon + Monitor (L×W×H) | 1380 × 1430 × 1560 mm |
| Voltage | AC220V / 50Hz |
| Supported IC Packages | QFN, SOP and more |
| Feeding Device | Flexible Vibratory Feeder × 1,Feeding Hopper × 1 |
| Discharge Device | Tape output |
| Sealing Type | Heat sealing |
| Support Tape Specification | 8 – 44 mm |
| Visual System | Upper CCD (2000W) + Lower CCD (130W) |
| Pick & Place Device | 2 vacuum nozzles |
| Control Mode | PLC |
| Monitor | 19" LCD |
| Drive Structure | Linear motor |
| Pick & Place Accuracy | ±0.05 mm |
| Air Source | 0.4 – 0.6 MPA |
| Total Weight | 650 KG |
| Power Consumption | 0.3 KW |

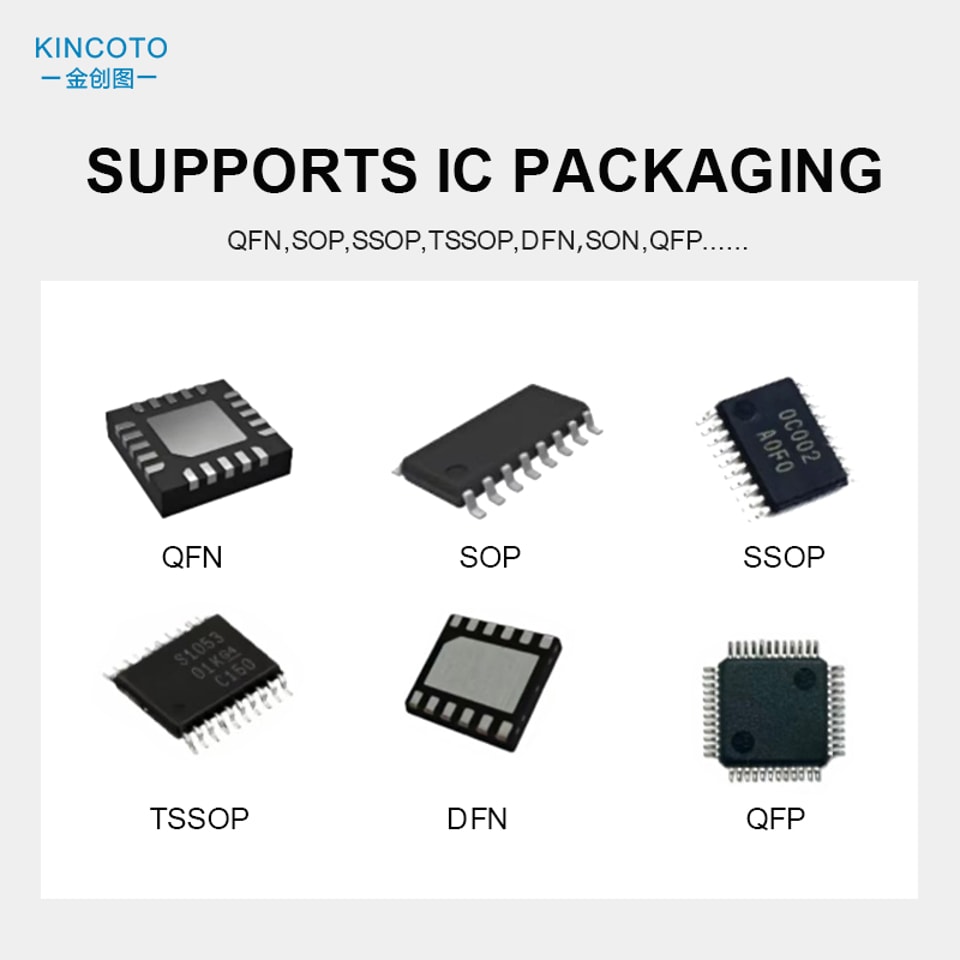

Suitable for programming chip packaging:

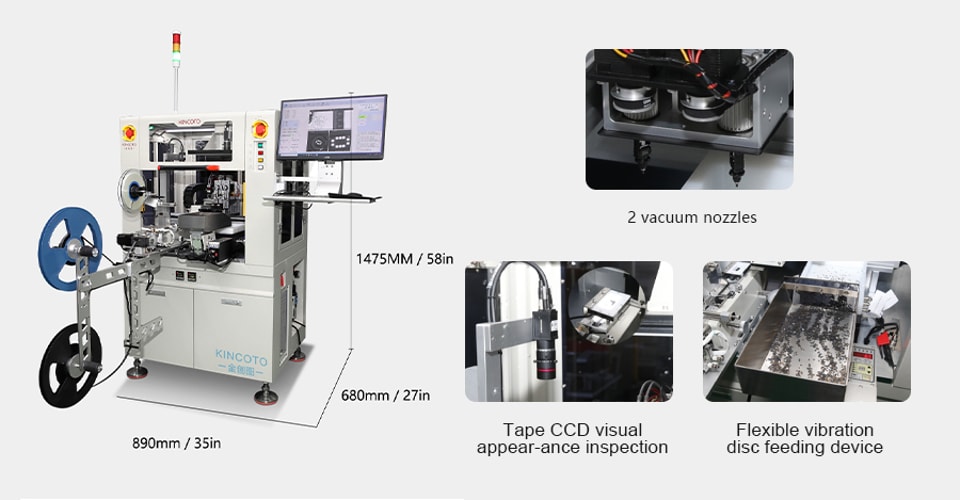

Product dimensions:

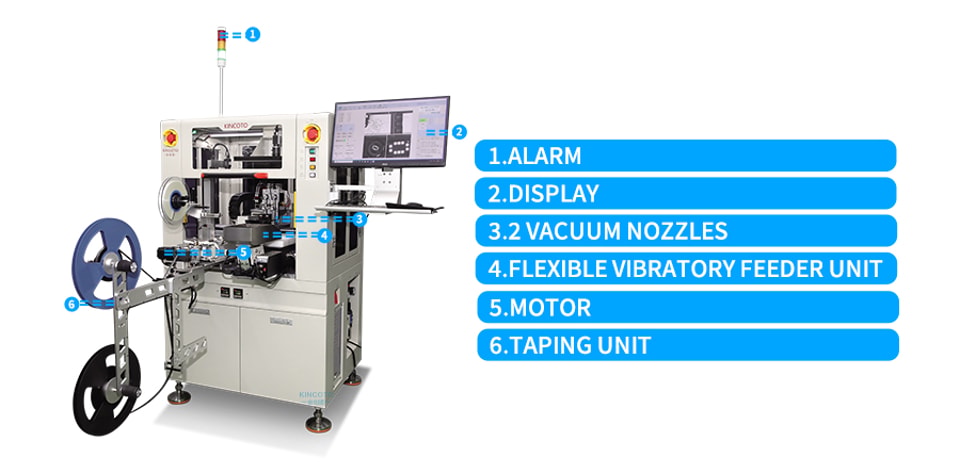

Product Structure：
Package：
Group photo during factory visit：
