KA42-3000 Automatic tape programming machine
1.Supports tape‑in & tape‑out for reel‑packaged ICs, auto‑re‑packing after programming.
2.Max throughput 3500UPH, configurable 1‑6 programming stations, auto OK/NG sorting.
3.High‑precision pick‑and‑place, user‑friendly operation.
4.Save & recall programming recipes anytime; quick‑swap sockets for different IC packages.
Please include the IC model, package, input format and target UPH.

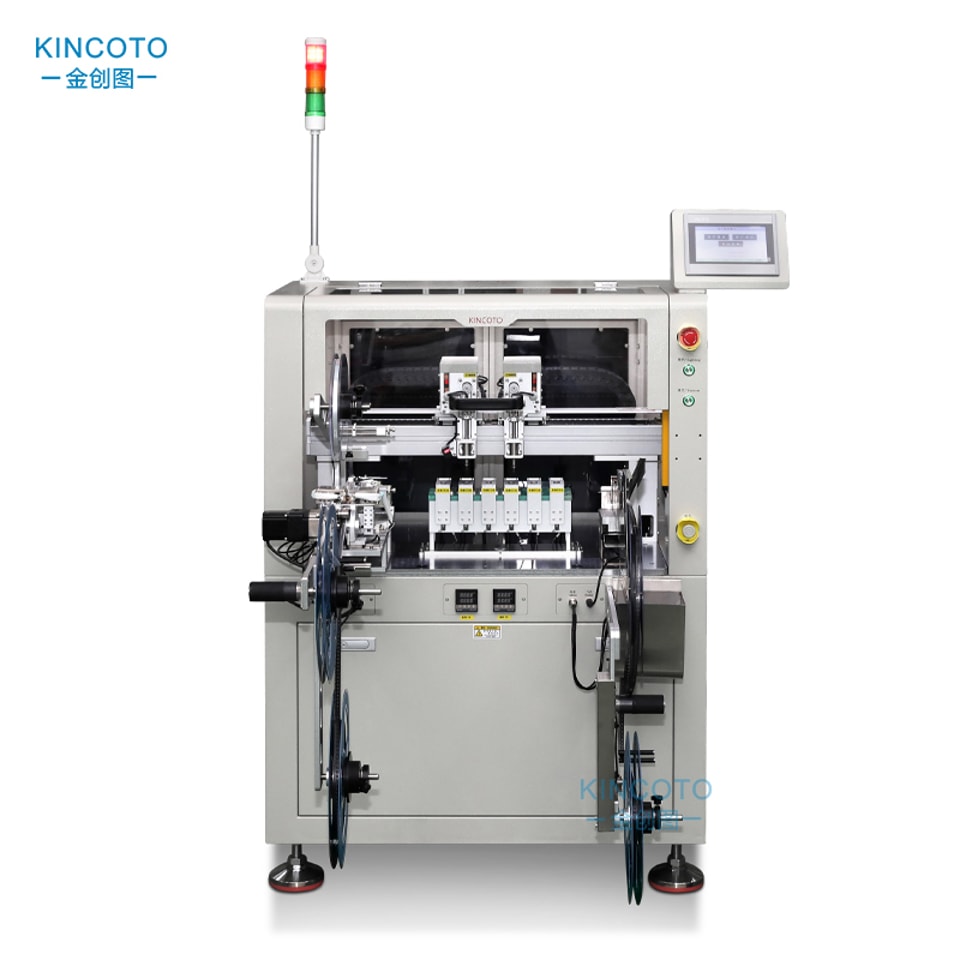

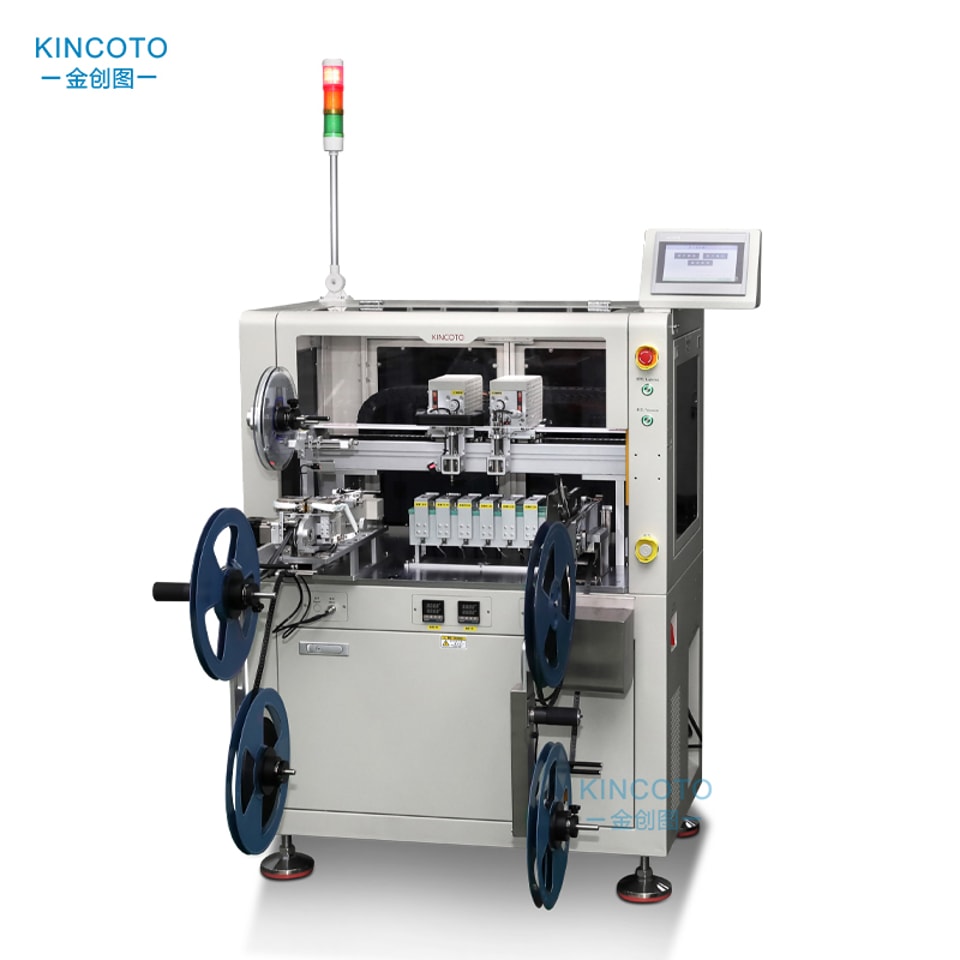

KA42-3000 Automatic tape programming machine
1.Supports reel‑to‑reel tape‑in & tape‑out, auto‑re‑pack ICs upon programming completion for smooth mass production.
2.Max throughput 3500UPH; 1‑6 configurable programming stations with automatic OK/NG sorting.
3.High‑precision pick‑and‑place mechanism, stable feeding and user‑friendly HMI operation.
4.Save and recall programming recipes for fast product changeover; quick‑swap sockets for various IC packages.
5.Multi‑level alarm for material shortage, feeding deviation and programming errors.
6.Compatible with QFN, SOP, SSOP, TSSOP, DFN, QFP mainstream IC packages.
7.MES‑compatible interface for production data traceability; compact structure for easy maintenance.
Technical parameters：
| Output efficiency | 3500UPH |
| Overall size | 950*1080*1450mm |
| Supports ic packaging | SOP/SSOP/TSSOP/QFP..... |
| Programmming station | 6 stations |
| Pick and place accuracy | ±0.03MM |
| Control mode | PLC |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Total weight | 257KG |
Suitable for programming chip packaging:
Product dimensions:

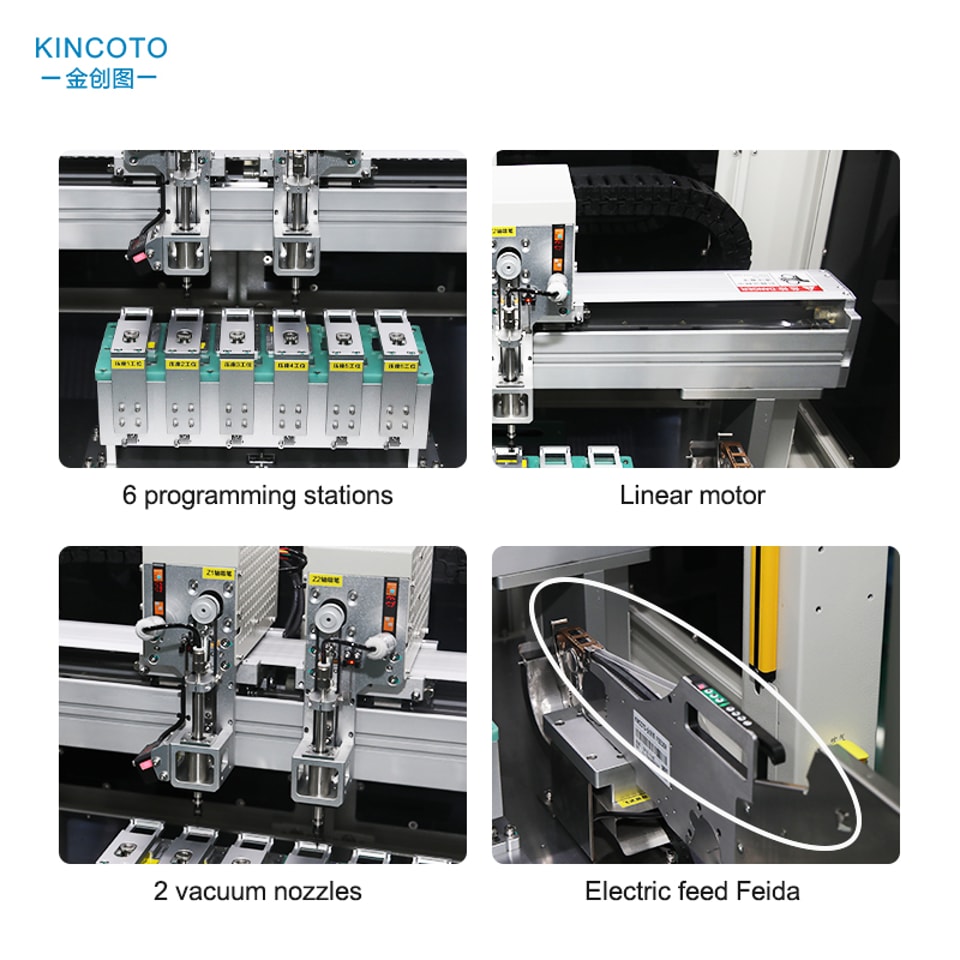

Product Structure：
Package：
Group photo during factory visit：
