IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
KA42‑2000 Automatic Tape Reel IC Programming Machine 2000UPH 4 Programming Stations Reel‑to‑Reel IC Burner, Support SOP SSOP QFN TSSOP Package
1.Supports tape‑in & tape‑out for reel‑packaged ICs, auto‑re‑packing after programming completion.
2.Configurable 1‑4 programming stations; auto OK/NG sorting.
3.High pick‑and‑place accuracy, user‑friendly operation.
4.Save & recall programming recipes anytime.
Please include the IC model, package, input format and target UPH.

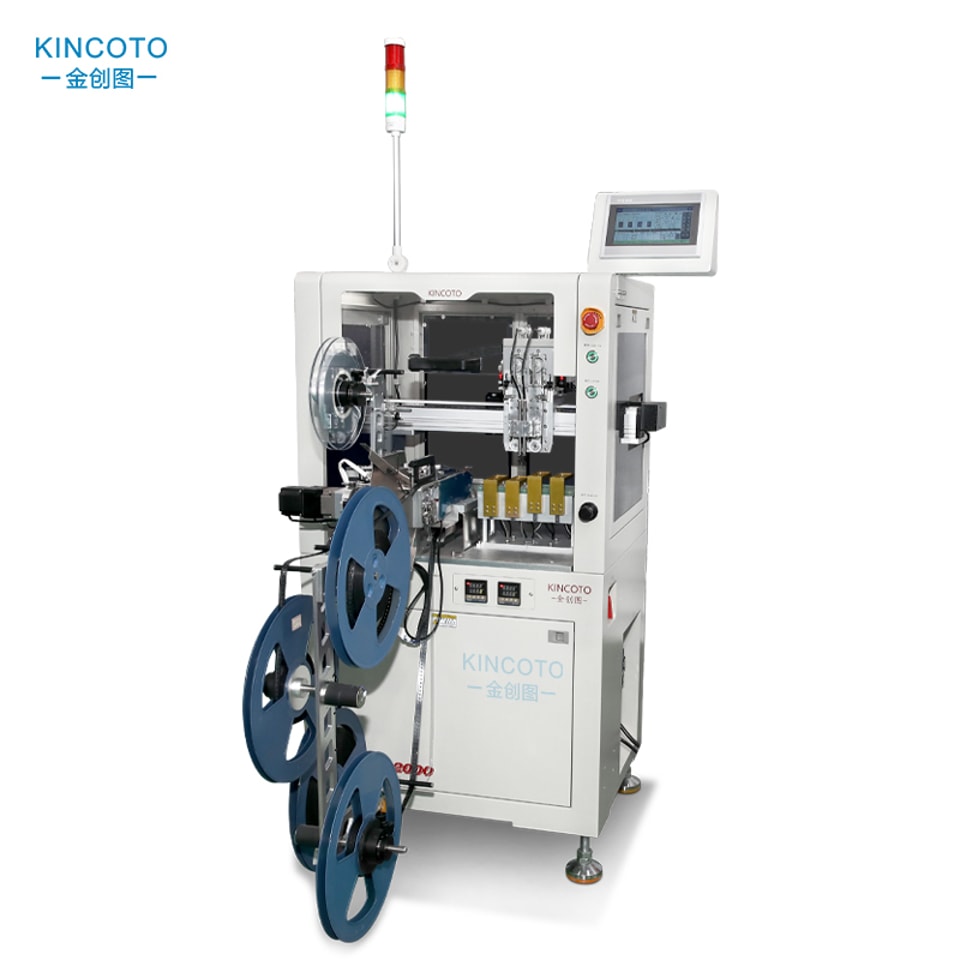

KA42-2000 Automatic tape programming machine
1.Tape‑in & tape‑out reel‑to‑reel processing, auto re‑packing after programming
2.1‑4 configurable programming stations, automatic OK/NG sorting for mass production
3.Compatible with QFN, SOP, SSOP, TSSOP, DFN, QFP and more mainstream IC packages
4.High‑precision pick‑and‑place, stable feeding, intuitive human‑machine interface
5.Store & load programming recipes, fast chip model switching
6.Max throughput 2000UPH for high‑volume production
7.Multi‑alarm protection for material shortage & working anomalies
Technical parameters：
| Output efficiency | 2000UPH |
| Overall size | 870*1170*1630mm |
| Supports ic packaging | SOP/SSOP/TSSOP/QFP..... |
| Programmming station | 4 stations |
| Pick and place accuracy | ±0.03MM |
| Control mode | Embedded control panel |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Air source | 0.4-0.6MPA |
| Total weight | 140KG |
Suitable for programming chip packaging:
Product dimensions:

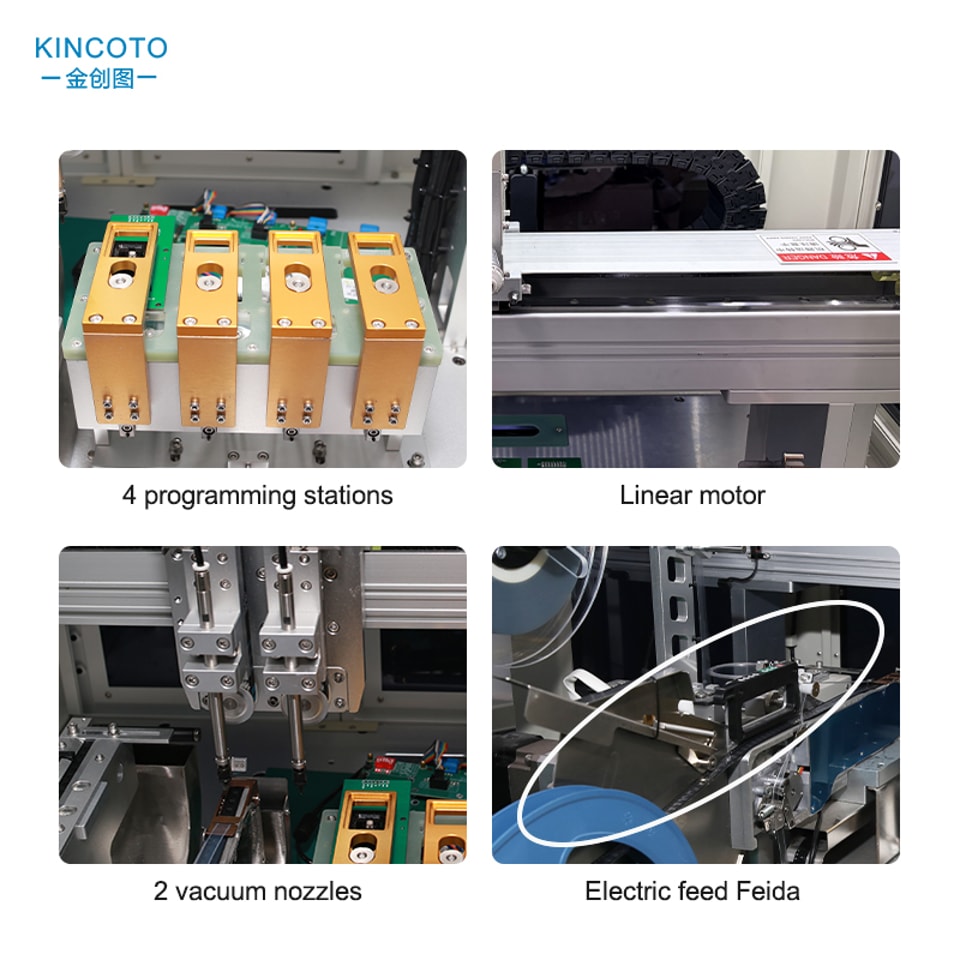

Product Structure：
Package：

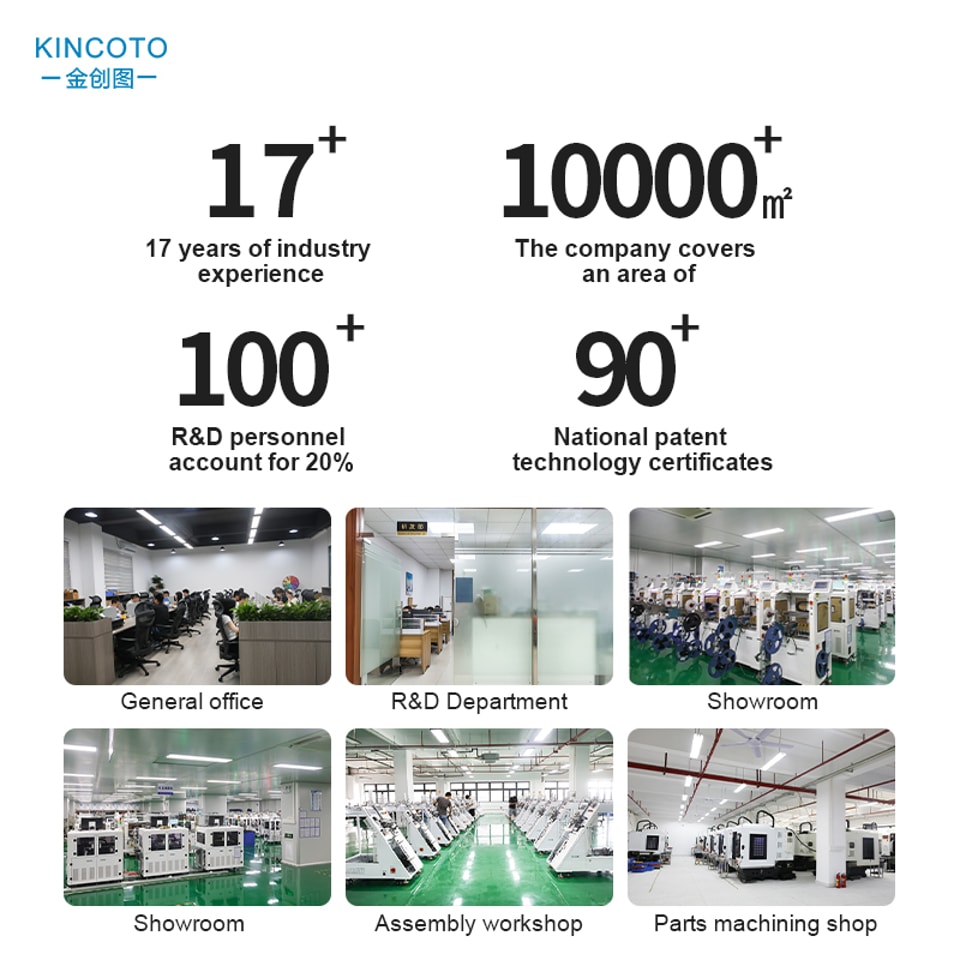

Group photo during factory visit：
