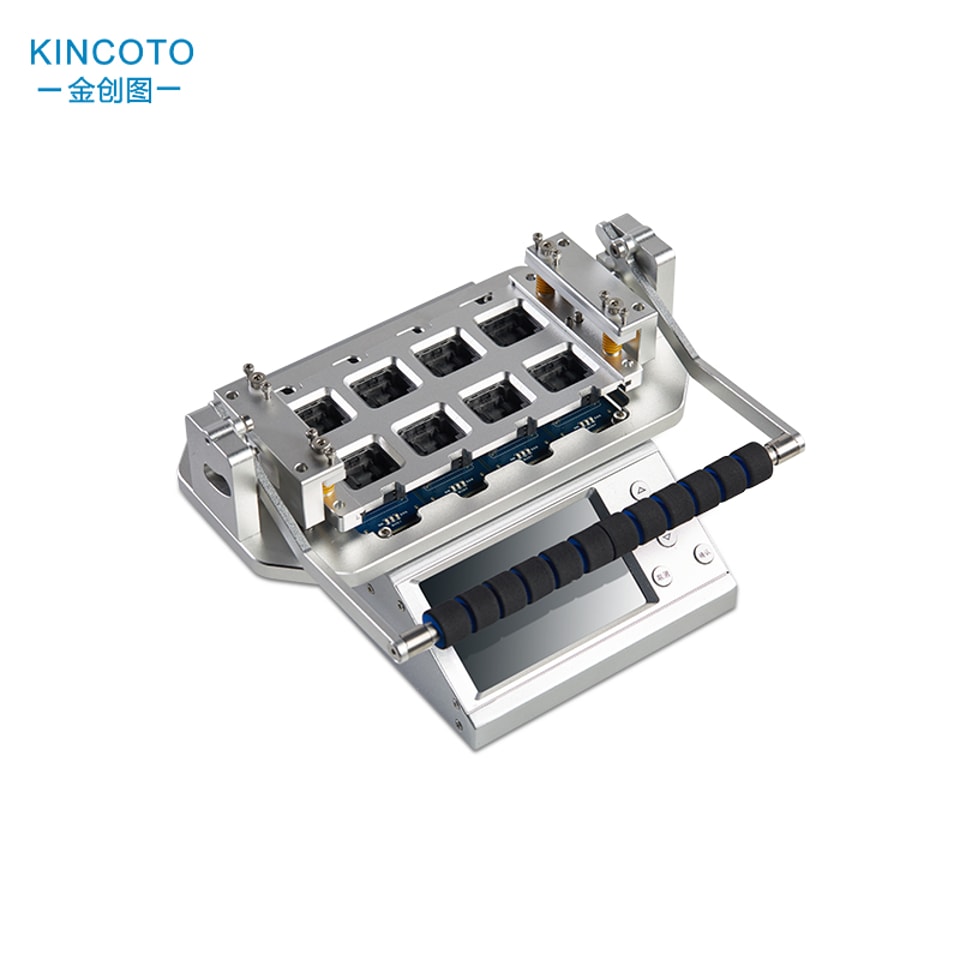

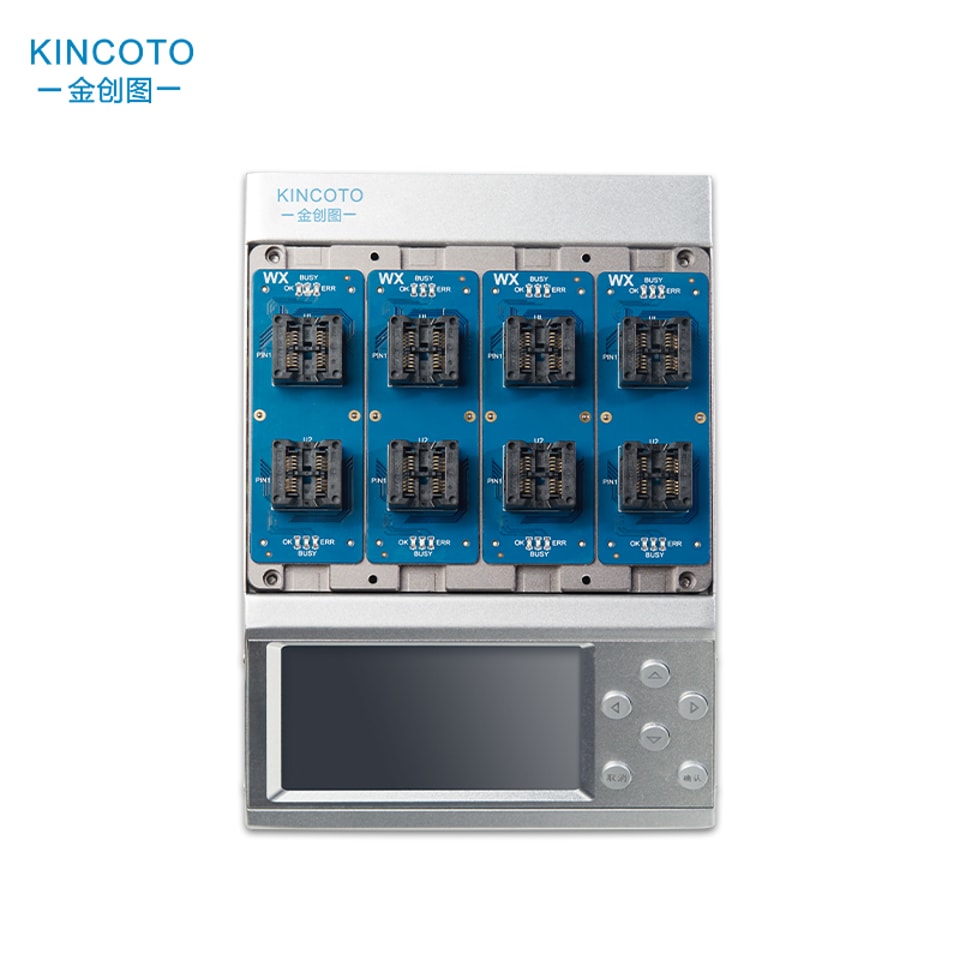

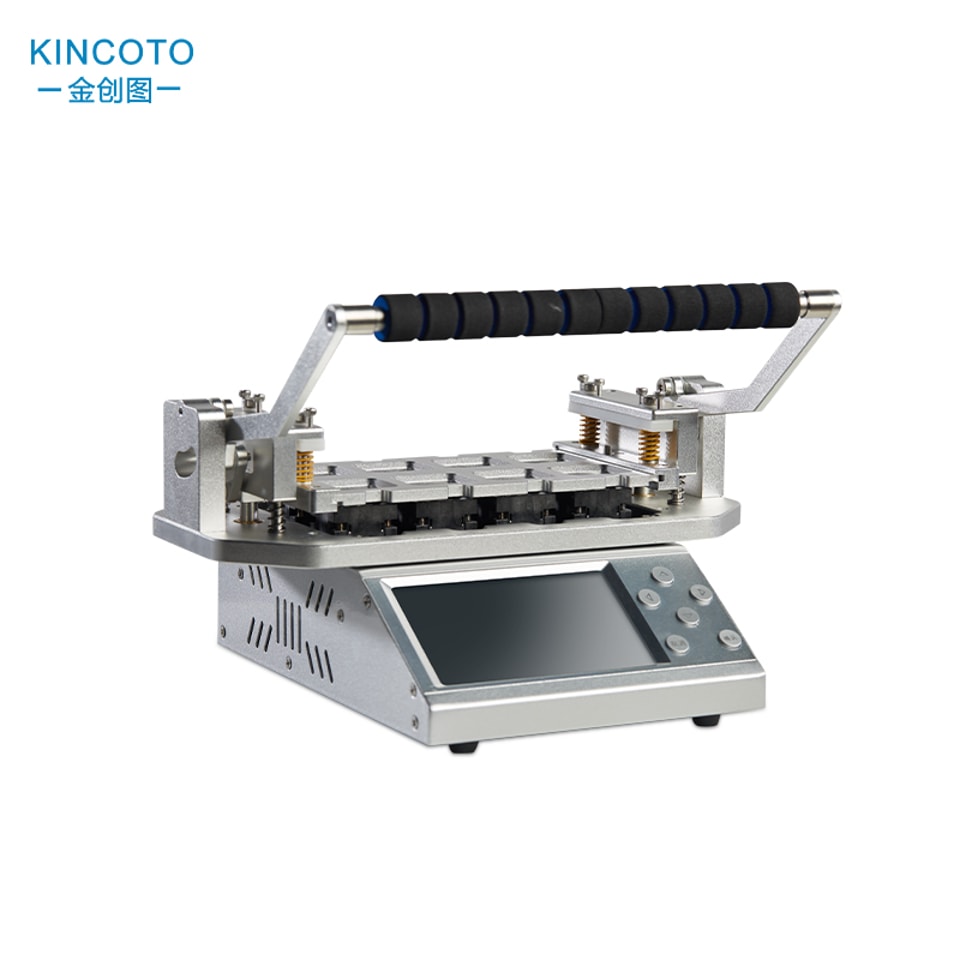

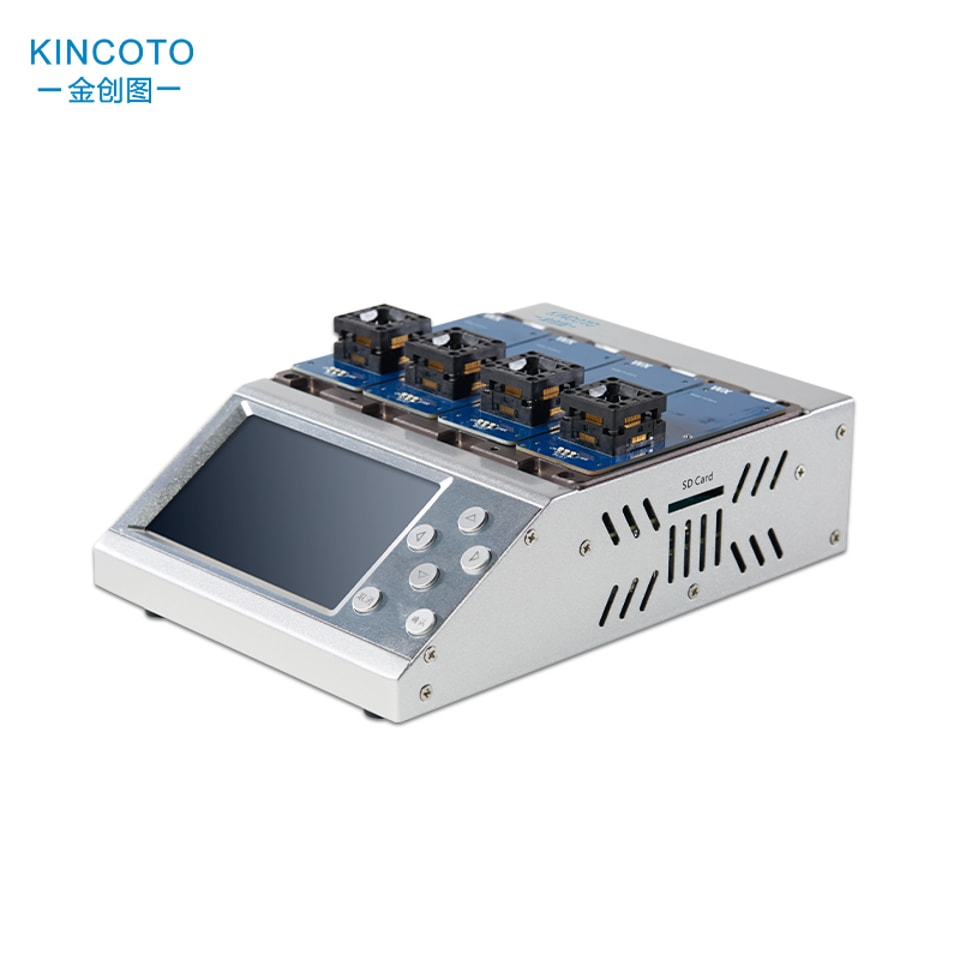

ET9800 Universal Programmer
Type: Universal production programmer with online / offline / copy programming modes
Programming Architecture: 1‑to‑8 parallel channels, ARM + FPGA, 1.6Gb/s bandwidth
Display & Storage: 4.3‑inch LCD touchscreen, 128GB built‑in eMMC storage
Supported IC Types: eMMC, MCU, TI DSP, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROM, and more
Supported Packages: BGA, FBGA, QFN, DFN, WSON, QFP, TQFP, SOP, TSOP, TSSOP, SOIC, DIP, PLCC, JLCC, and more
Software: Lifetime free updates; supports dynamic data (rolling codes, keys) and secure project encryption
Please include the IC model, package, input format and target UPH.
ET9800 Universal Programmer
♦1‑to‑8 Parallel Programming – Programs up to 8 chips simultaneously for maximum throughput
♦Three Operating Modes – Supports online, offline, and copy programming to fit any production scenario
♦High‑Speed Hardware Architecture – ARM + FPGA with 1.6Gb/s programming bandwidth for faster, more stable performance
♦128GB Built‑in Storage – Large‑capacity eMMC module enables efficient offline operations and master chip copying
♦4.3″ LCD Touchscreen – Intuitive offline operation with project selection, execution, and data statistics at your fingertips
♦Rich Interface Options – Ethernet, USB2.0 Device, SD card, and RS‑232 for versatile applications
♦Wide IC Type Support – eMMC, MCU, TI DSP, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROM, and more
♦Wide Package Support – BGA, FBGA, QFN, DFN, WSON, QFP, TQFP, SOP, TSOP, TSSOP, SOIC, DIP, PLCC, JLCC, and more
♦Lifetime Free Software Updates – Ongoing support for new chip models with no extra cost
♦Dynamic Data Programming – Supports auto‑increment serial numbers (rolling codes), keys, and other dynamic data
♦Secure Engineering – Projects can be encrypted or bound to a specific programmer for data protection
♦Multiple File Format Support – Bin, Hex, S19, jed, pof, elf, and more
Technical parameters：
| Type | Universal production programmer |
| Display | 4.3″ LCD touchscreen |
| Programming Architecture | 1-to-8 parallel channels |
| Programming Bandwidth | 1.6Gb/s |
| Built-in Storage | 128GB eMMC module |
| Supported IC Types | eMMC, MCU, TI DSP, SPI Nor/Nand Flash, Parallel Nor/Nand Flash, EEPROM, and more |
| Supported Packages | BGA, FBGA, QFN, DFN, WSON, QFP, TQFP, SOP, TSOP, TSSOP, SOIC, DIP, SDIP, PLCC, JLCC, and more |
| File Formats | Bin, Hex, S19, jed, pof, elf, and more |
| Interfaces | Ethernet, USB2.0 Device, SD card, RS 232 |
| Standard Accessories | ET9800 programmer × 1, USB cable × 1, power adapter × 1 |
| Dimensions (L×W×H) | 225 × 160 × 59 mm (excluding socket and foot pads) |
| Weight | 1.85 KG |
| Operating Voltage | 110 – 240VAC |
| Power Consumption | 40W |
| Frequency | 50 – 60Hz |
| Operating Temperature | 0 – 50℃ |
| Operating Humidity | 70% RH (Non condensing) |
| Storage Temperature | –10 – 70℃ |
| Storage Humidity | 80% RH (Non condensing) |
| Center Distance | 39.00 mm |
| Warranty | 1-year free repair; lifetime free software updates |
Suitable for programming chip packaging:

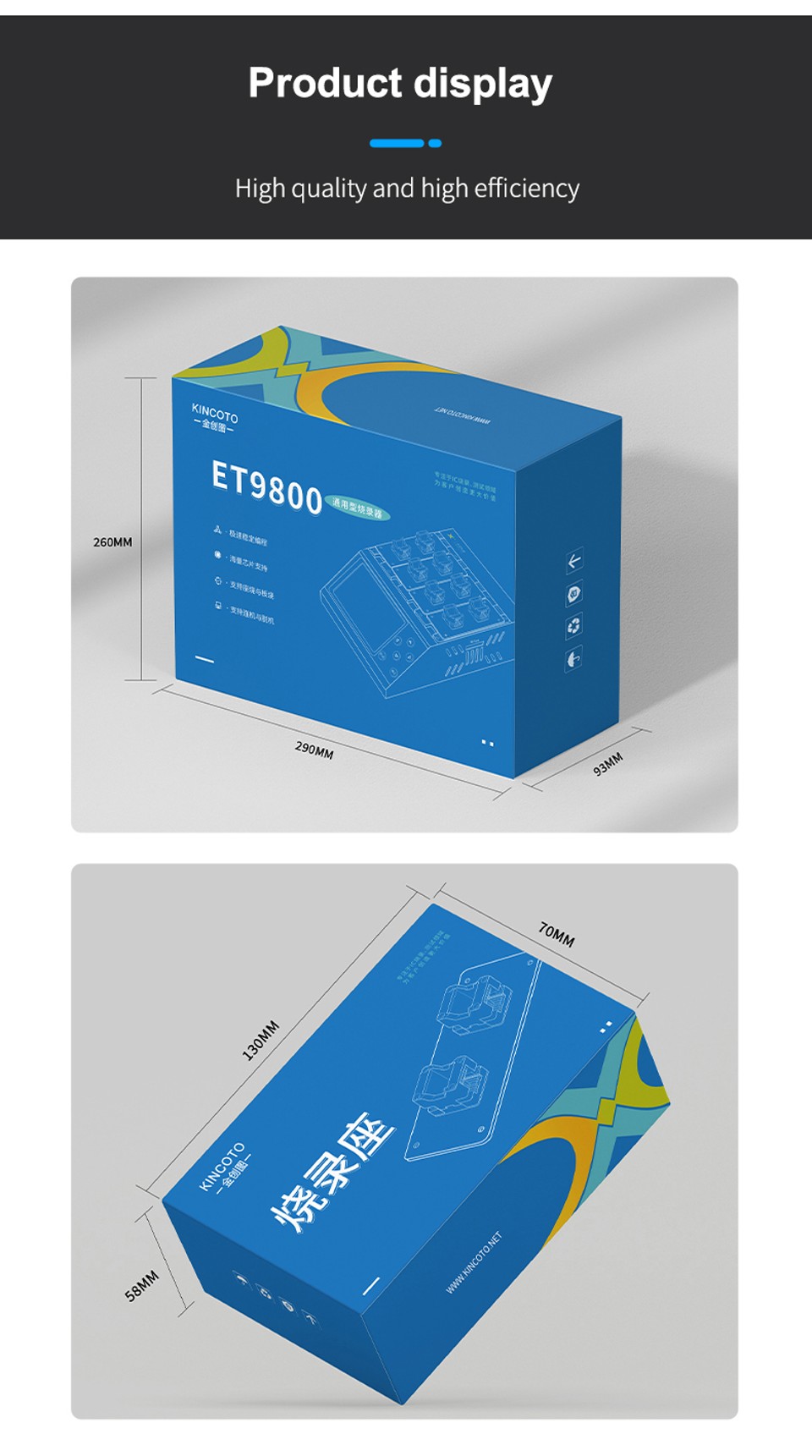

Product packaging dimensions:

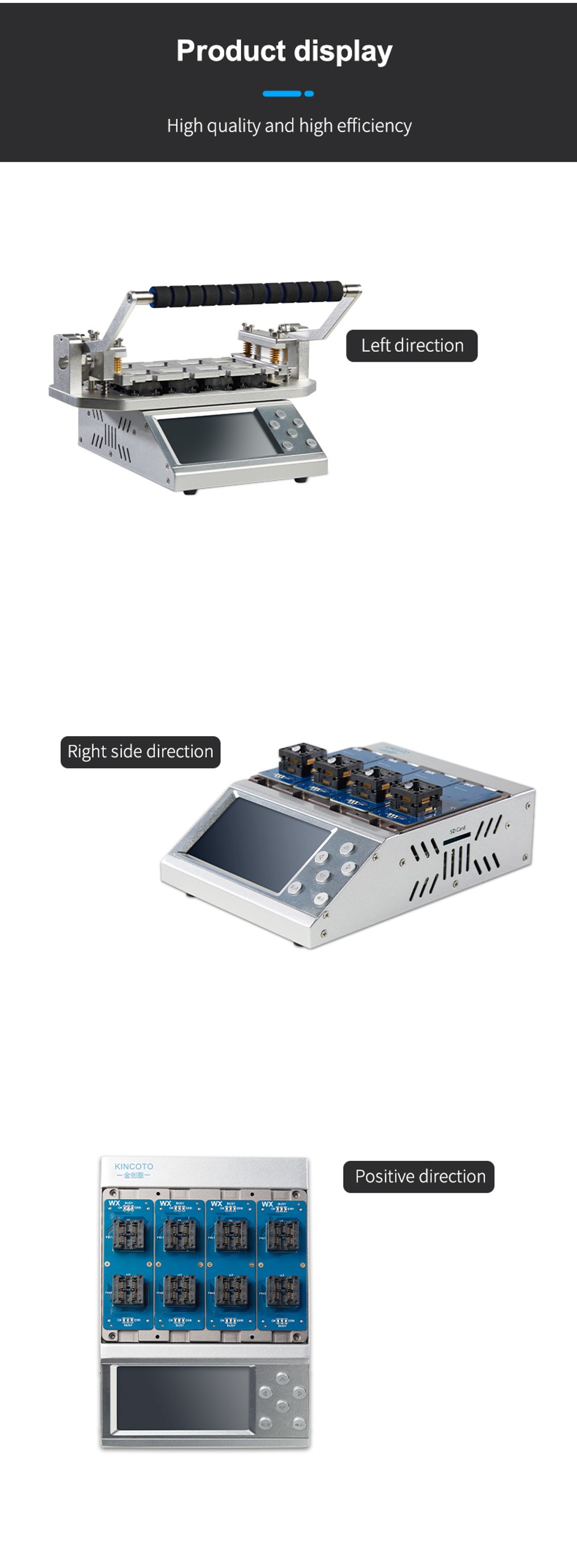

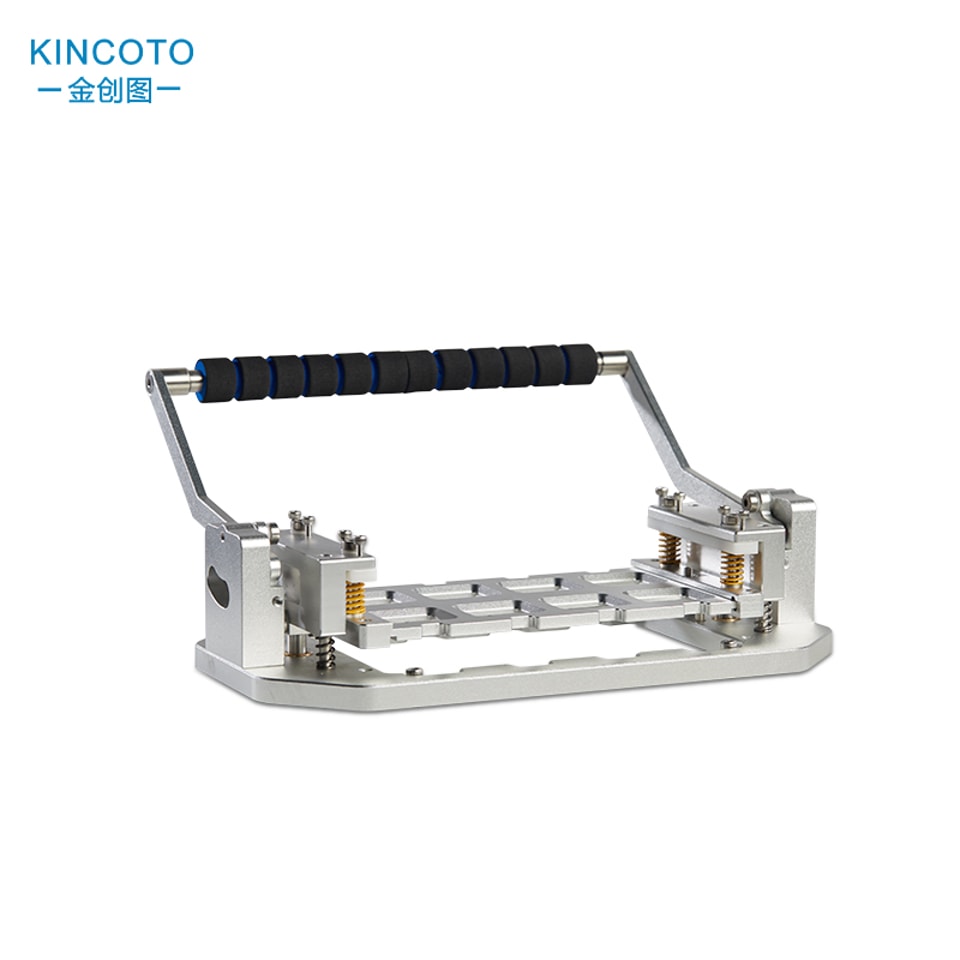

Product Structure：
