KINCOTO EQUIPMENT

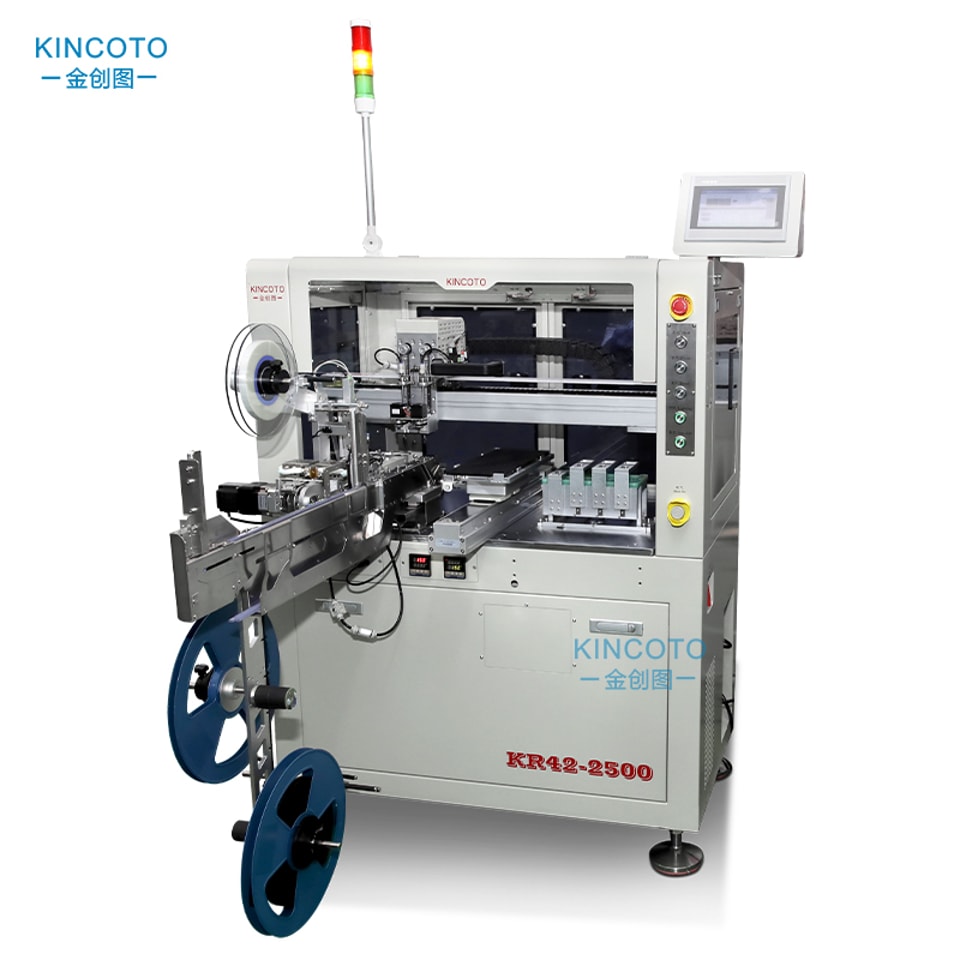

Tray and tape and tube integrated programming machine KR42-2500RUA
1.Supports tape‑and‑reel, manual tray and tube IC feeding, covering multiple common IC packaging formats.
2.4 programming stations in total; 1‑4 stations configurable for flexible capacity adjustment.
3.Automatically records OK/NG quantities for production traceability, simple‑to‑operate for operators.
4.Six input‑output modes available: tape‑in & tray‑out, tray‑in & tape‑out, tape‑in & tape‑out, tray‑in & tray‑out, tube‑in & tray‑out, tube‑in & tape‑out.
5.Realizes diverse packaging conversion without extra auxiliary equipment.
6.Stable mechanical performance to sustain long‑time continuous production.
Please include the IC model, package, input format and target UPH.
1.Supports tape‑and‑reel, manual tray and tube IC feeding, covering multiple common IC packaging formats.
2.4 programming stations in total; 1‑4 stations configurable for flexible capacity adjustment.
3.Automatically records OK/NG quantities for production traceability, simple‑to‑operate for operators.
4.Six input‑output modes available: tape‑in & tray‑out, tray‑in & tape‑out, tape‑in & tape‑out, tray‑in & tray‑out, tube‑in & tray‑out, tube‑in & tape‑out.
5.Realizes diverse packaging conversion without extra auxiliary equipment.
6.Stable mechanical performance to sustain long‑time continuous production.
Technical parameters：
| Output efficiency | 2500UPH |
| Overall size | 1000*1080*1450mm |
| Supports ic packaging | SOP/QFN/SSOP/QFP/TSSOP..... |
| Programmming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | Motion control card |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Total weight | 300 KG |
Suitable for programming chip packaging:
Product dimensions:

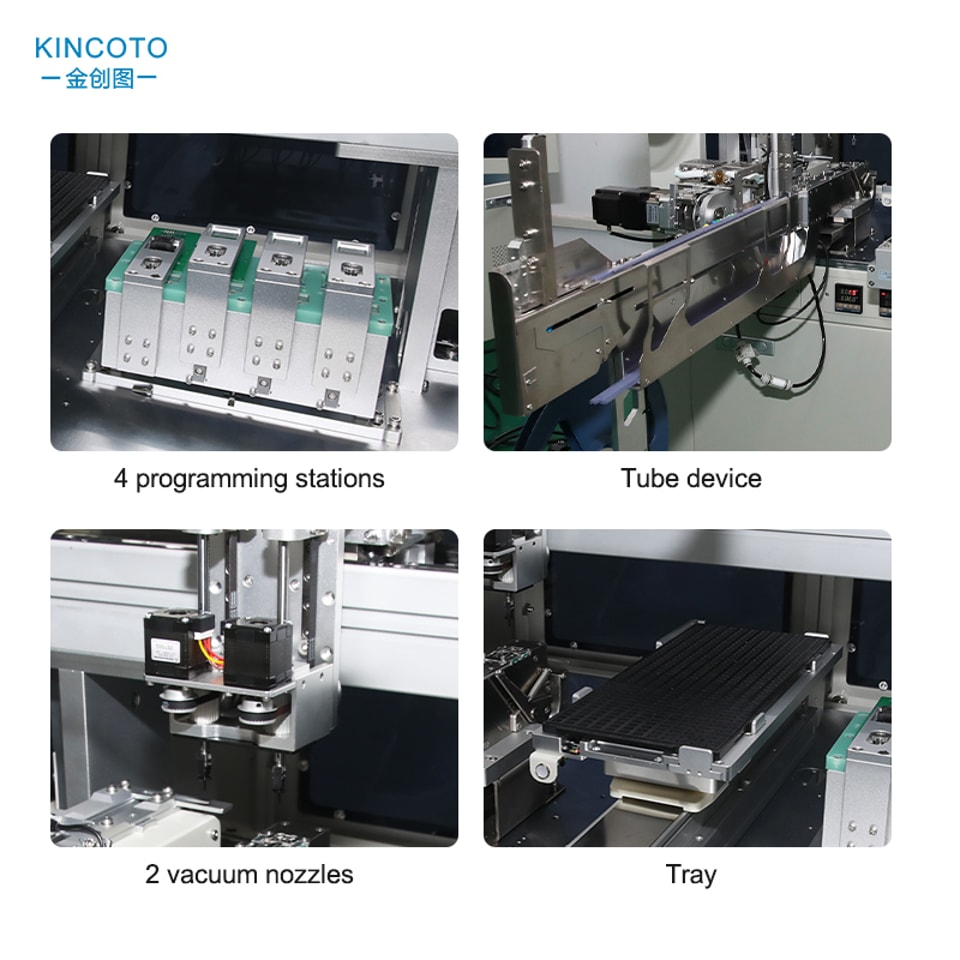

Product Structure：
Package：
Group photo during factory visit：
