IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
Tray and tape integrated programming machine KA2000-GS2
Output Efficiency: 2000 – 2500 UPH
Supported IC Packages: QFP, QFN, SOP, SSOP, TSSOP, and more
Operation Modes: tape in/tape out, tape in/tray out, tray in/tape out, and tray in/tray out.
Programming Channels: Up to 32 stations (1–32 independently selectable)
Built-in Programmer: Universal programmer (supports SPI Flash, E-PROM, EEPROM, MCU, MPU, eMMC, PLCC, etc.)
Please include the IC model, package, input format and target UPH.
Tray and tape integrated programming machine KA2000-GS2

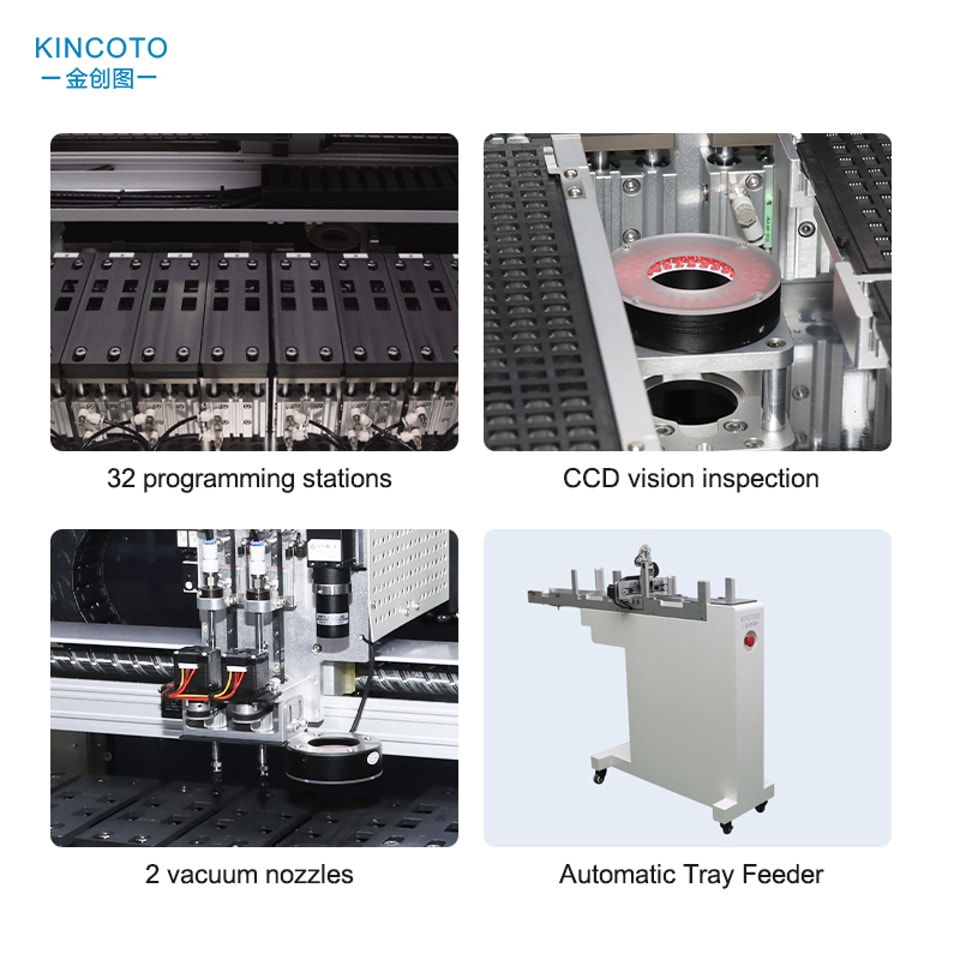

♦Up to 32 Programming Stations – Highest station count in its class. Up to 4 built-in programmers support 1–32 channels for maximum throughput
♦Built-in Universal Programmer – No external programmer needed. Supports SPI Flash, E-PROM, EEPROM, MCU, MPU, eMMC, PLCC, and more – all in one machine
♦4-in-1 Operation Modes – Tape in/tape out, tape in/tray out, tray in/tape out, tray in/tray out – one machine for all packaging combinations
♦±0.03mm High Precision – Linear motor + CCD vision alignment for accurate placement of fine-pitch packages (QFP/QFN/BGA)
♦Plug-in Programming Sockets – Quick changeover between different IC types. Pre-configure sockets in advance for flexible production
♦Automatic Tray Feeder – Supports up to 20 trays for hours of unattended continuous operation
♦MES System Integration – Full production traceability and data logging for quality control
♦Large-Capacity File Support – Handles large-capacity programming files for complex ICs
♦19" LCD Touchscreen – Easy to use, store and recall programming settings
♦Optional Functions – Dot marking, altimeter, and AOI detection for enhanced quality control
Technical parameters：
| Output Efficiency | 2000 – 2500 UPH |
| Host Size (L×W×H) | 1200 × 950 × 1365 mm |
| Overall Size (L×W×H) | 1690 × 1800 × 1600 mm |
| Supported IC Packages | QFP, QFN, SOP, SSOP, TSSOP, and more |
| Programming Channels | Up to 32 stations (1–32 independently selectable) |
| Pick & Place Device | 2 vacuum nozzles |
| Monitor | 19" LCD touchscreen |
| Control Mode | Motion control card |
| X-axis Drive | Linear motor |
| Programming Mode | Down-pressure socket (plug-in type for quick changeover) |
| Positioning System | CCD vision alignment |
| Tray Loading/Unloading | Automatic tray feeder – supports up to 20 trays |
| Tape Feeder | Standard 12–16 mm, optional 8/24/32/44mm |
| Tape Discharging | Adjustable automatic hot-pressing film sealing device |
| Input Voltage | AC220V / 50Hz |
| Power | 1.3 KW |
| Air Source | 0.4–0.6 MPA |
| Total Weight | 650 KG |
| Optional Functions | Dot marking, Altimeter, AOI detection |

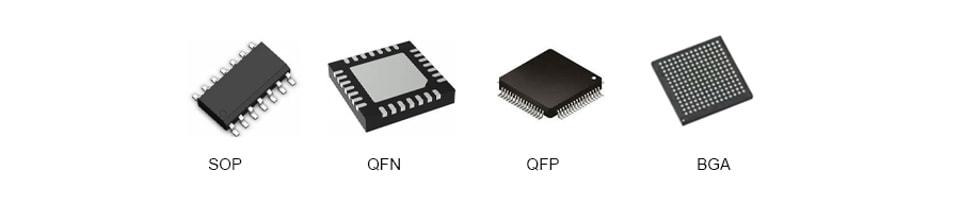

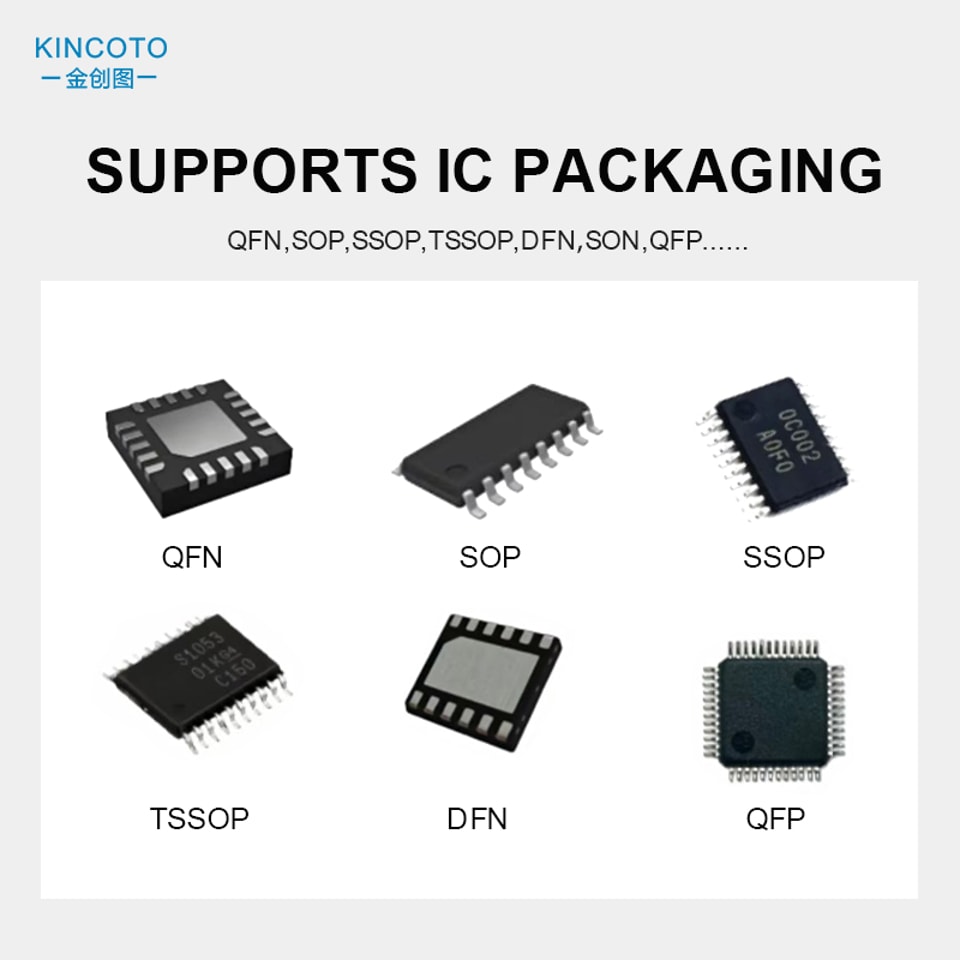

Suitable for programming chip packaging:

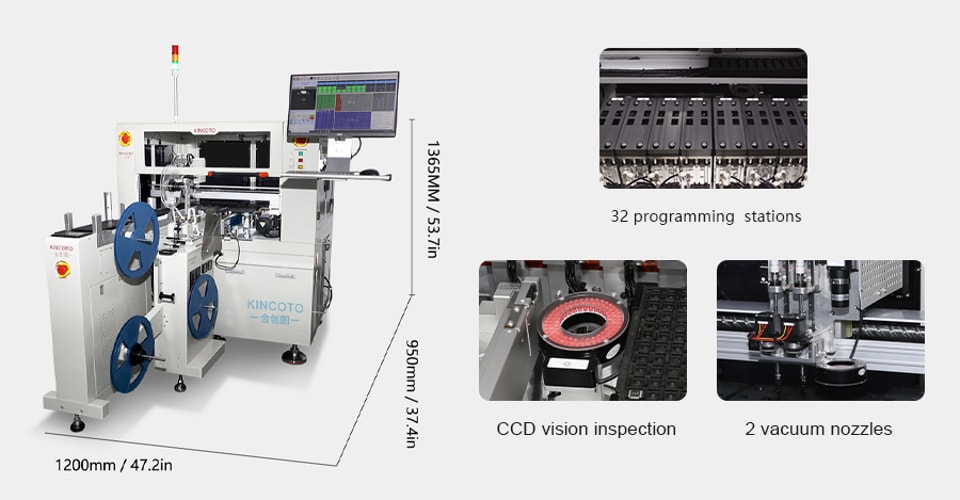

Product dimensions:

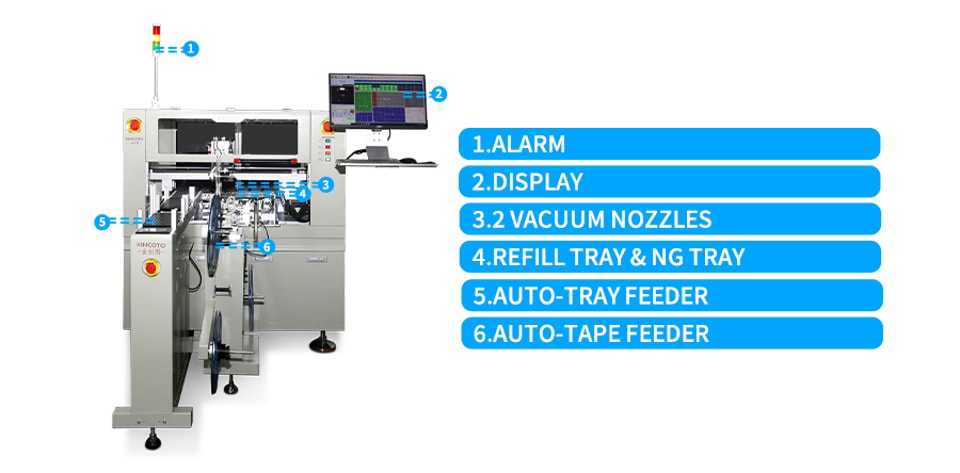

Product Structure：
Package：
Group photo during factory visit：
