KINCOTO EQUIPMENT

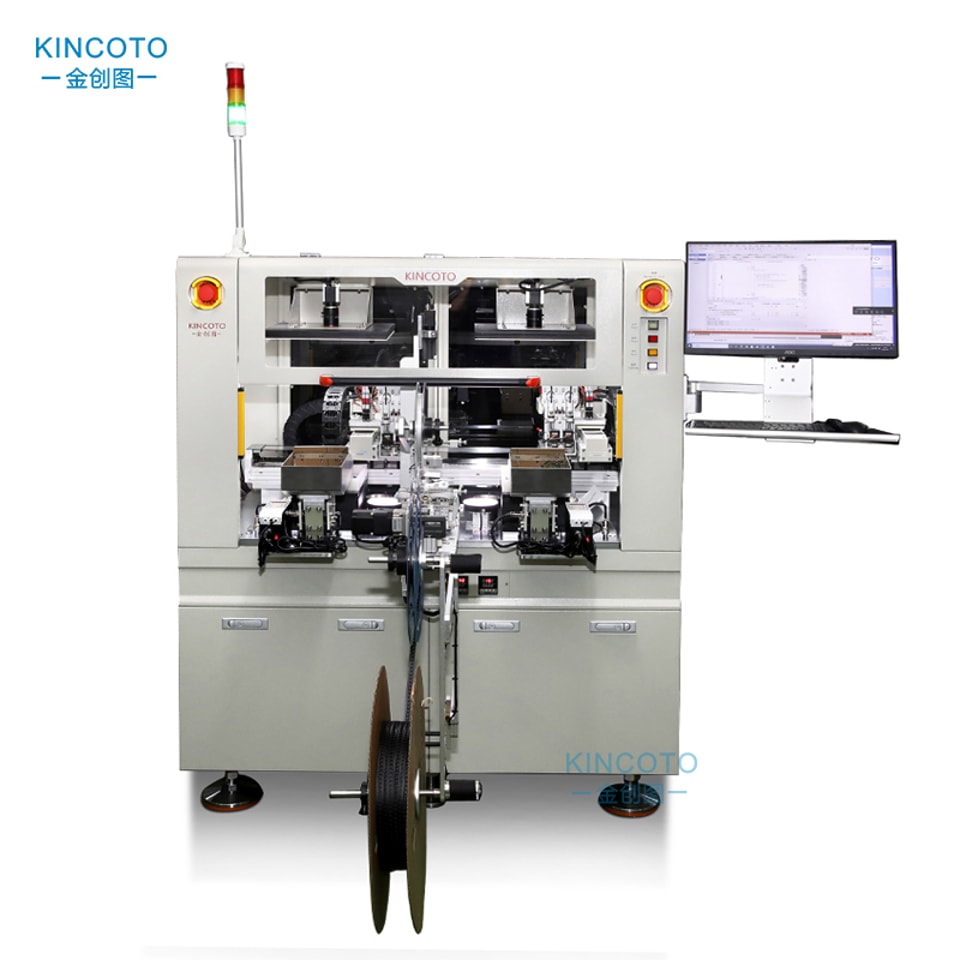

Bulk to Tape Packaging Machine (Dual Head)
Output Efficiency: 4000 UPH
Supported IC Packages: QFN, SOP and more
Operation Modes: loose bulk in/tape out
Machine function: packaging conversion
Visual System: high-precision CCD vision system
Configuration: Dual-head, 4-nozzle design, dual flexible vibratory feeders and dual feeding bins
Please include the IC model, package, input format and target UPH.
Bulk to Tape Packaging Machine (Dual Head)

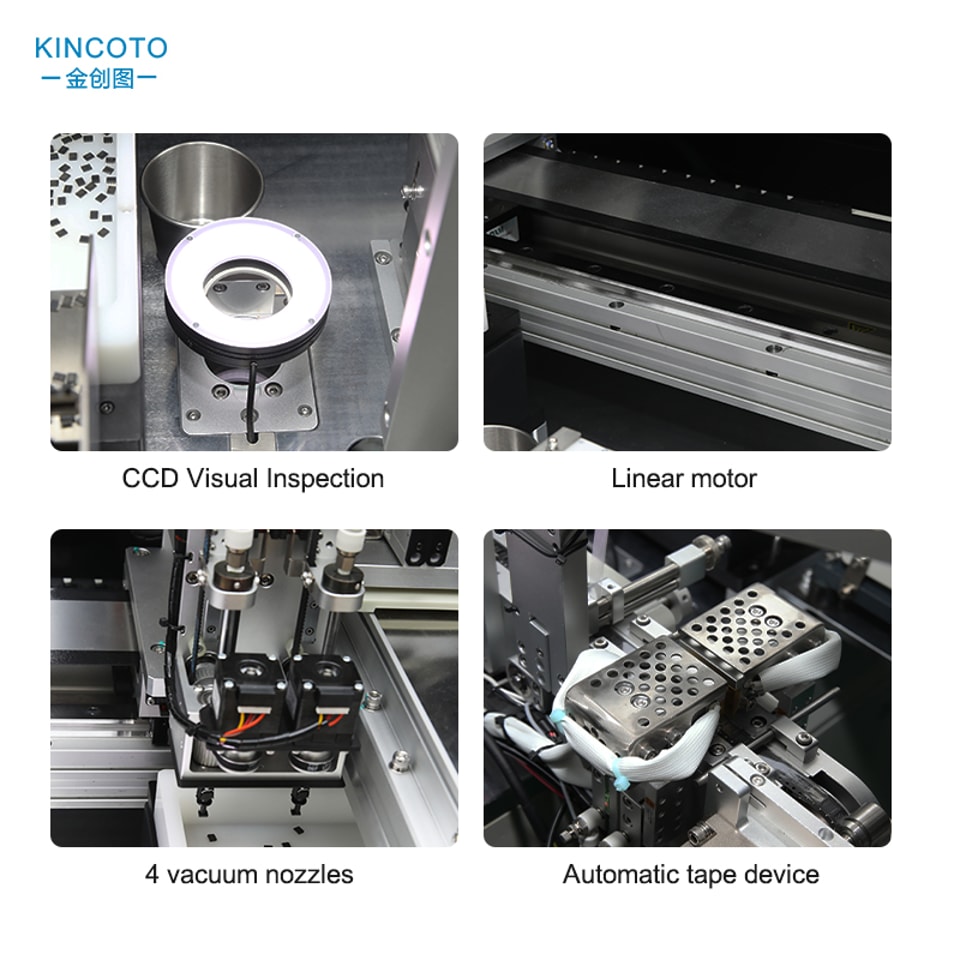

♦Dual-Head, 4-Nozzle Design – 4 vacuum nozzles for significantly higher throughput – 4,000 UPH
♦Dual Flexible Vibratory Feeders + Dual Feeding Bins – Dual feeding system for continuous bulk material supply and higher efficiency
♦Intelligent CCD Vision System – Upper CCD (2000W) and lower CCD (130W) for precise angle, orientation, and defect detection
♦All-in-One Process – Bulk feed → orientation detection → pick & place → heat sealing → reel winding – fully automated continuous operation
♦Double the Capacity – 4,000 UPH output – twice the capacity of single-head models
♦Wide Tape Compatibility – Supports 8–44mm carrier tape widths for flexible packaging options
♦Heat Sealing Only – Stable and reliable heat sealing for consistent packaging quality
♦High-Precision Linear Motor Drive – ±0.05mm accuracy with smooth, reliable operation
♦Pure Packaging Solution – Dedicated packaging machine with no programming, no marking, no printing – focused exclusively on high-speed packaging conversion
Technical parameters：
| Output Efficiency | 4000 UPH |
| Host Size (L×W×H) | 1250 × 680 × 1475 mm |
| Host + Ribbon + Monitor (L×W×H) | 1740 × 1380 × 1560 mm |
| Voltage | AC220V / 50Hz |
| Supported IC Packages | QFN, SOP and more |
| Feeding Device | Flexible Vibratory Feeder × 2,Feeding Hopper × 2 |
| Discharge Device | Tape output |
| Sealing Type | Heat sealing |
| Support Tape Specification | 8 – 44 mm |
| Visual System | Upper CCD (2000W) + Lower CCD (130W) |
| Pick & Place Device | 4 vacuum nozzles |
| Control Mode | PLC |
| Monitor | 19" LCD |
| Drive Structure | Linear motor |
| Pick & Place Accuracy | ±0.05 mm |
| Air Source | 0.4 – 0.6 MPA |
| Total Weight | 690 KG |
| Power Consumption | 0.3 KW |

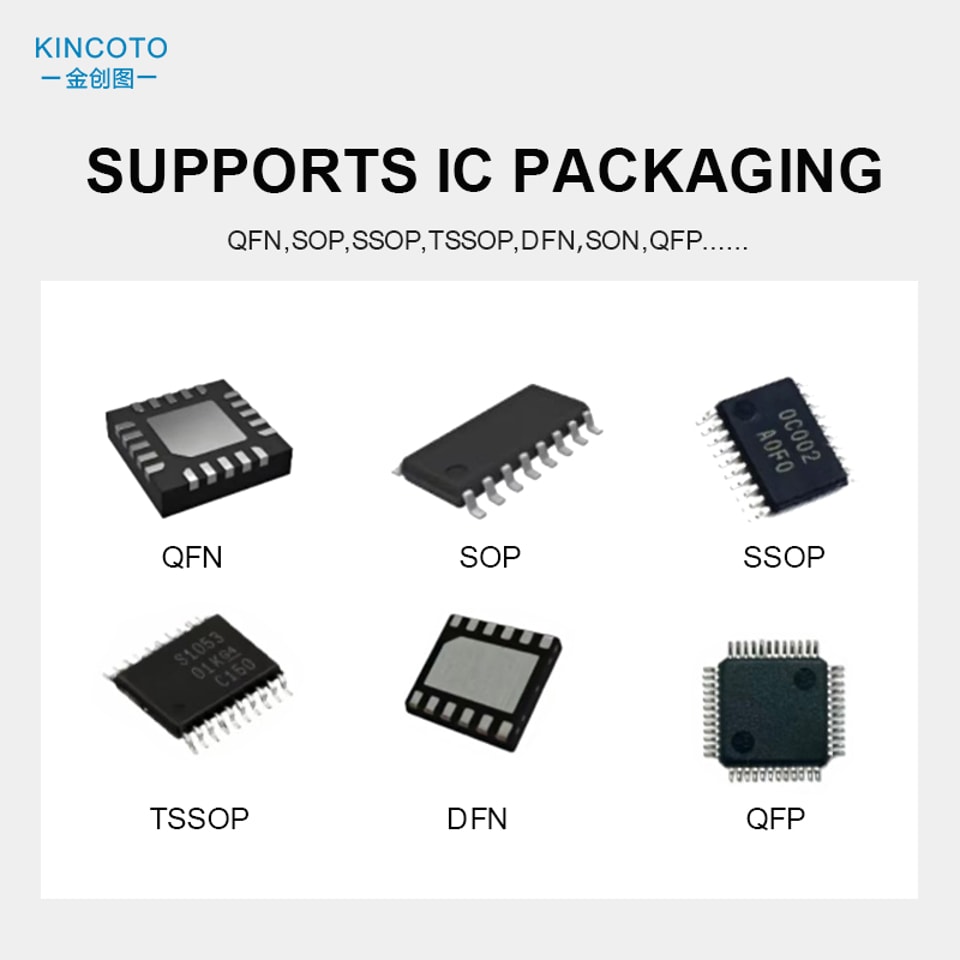

Suitable for programming chip packaging:

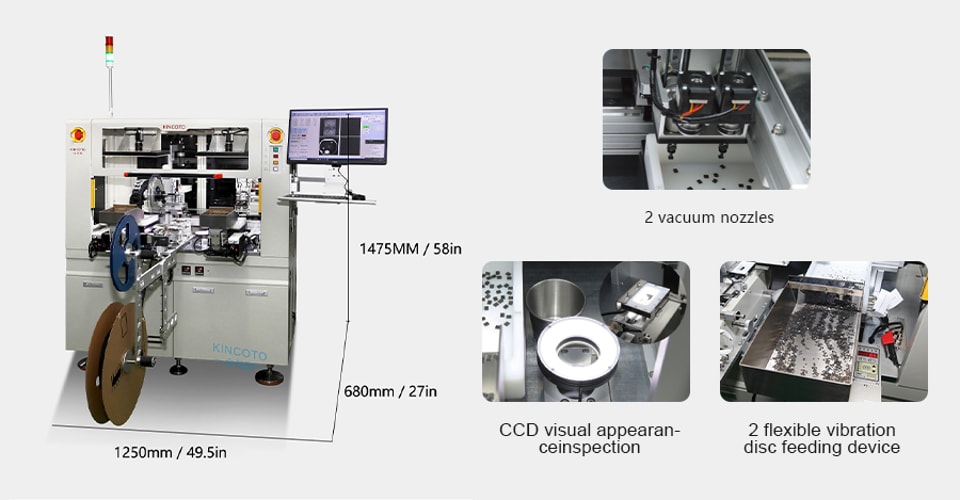

Product dimensions:

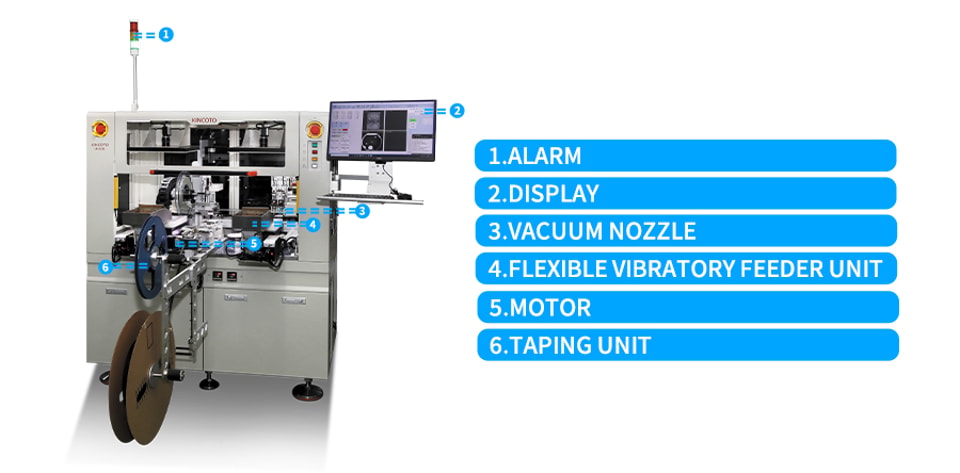

Product Structure：

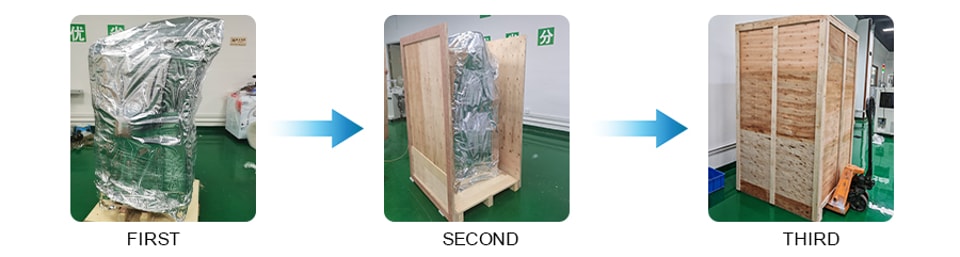

Package：
Group photo during factory visit：
