IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
Tape Laser Marking Machine A-30W
Output Efficiency: 12,000 UPH
Supported IC Packages: QFN, QFP, SOP, SSOP, TSSOP, and more
Operation Modes: Tape in/tape out
Machine function: Engraving Removal and Engraving
Please include the IC model, package, input format and target UPH.

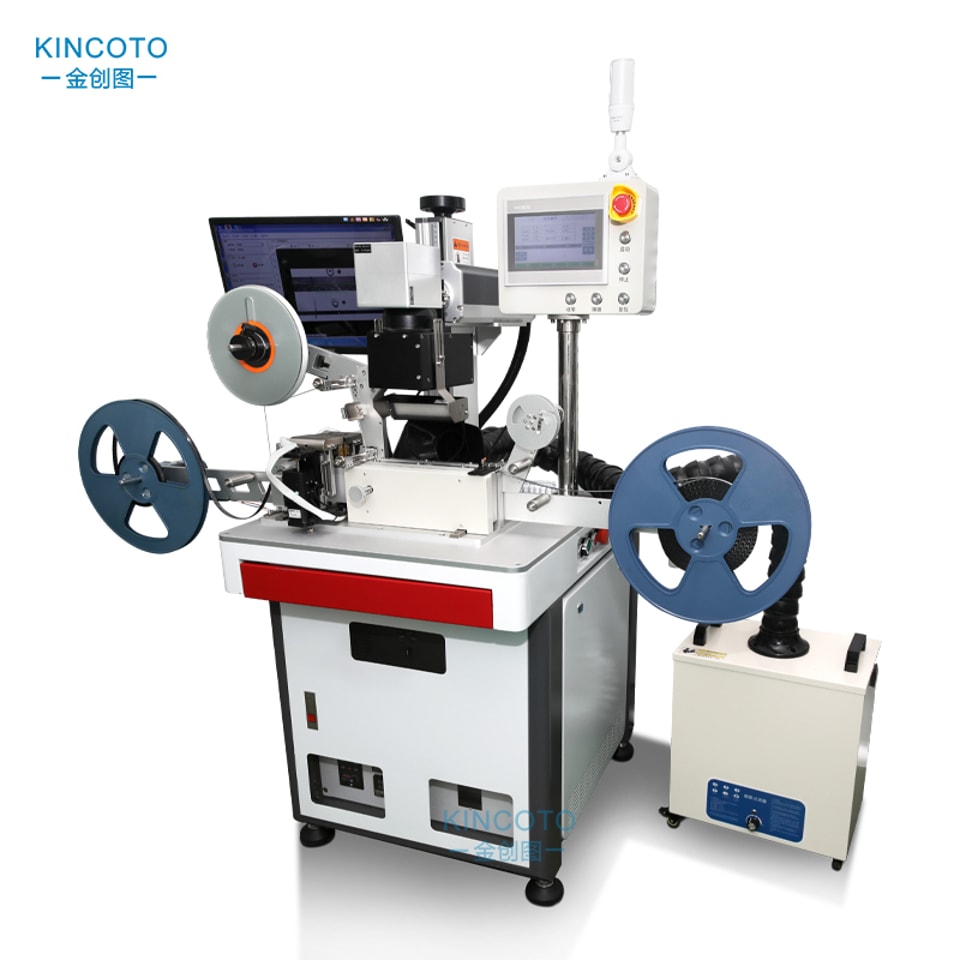

Tape Laser Marking Machine A-30W
♦Ultra-High Speed Marking – 12,000 UPH – ideal for high-volume production lines
♦Built-in CCD Vision Positioning – High-precision camera positioning ensures accurate marking positions every time, prevents offset and deviation errors
♦Adjustable Hot-Compression Sealing Film Braid Discharge Device – Supports 8–32mm tape widths with adjustable track for high compatibility
♦Dual-Mode Selection – Pneumatic or pure electric drive – choose according to your factory setup
♦Automatic Dust Suction Filter – Built-in dust extraction system for clean operation and laser safety

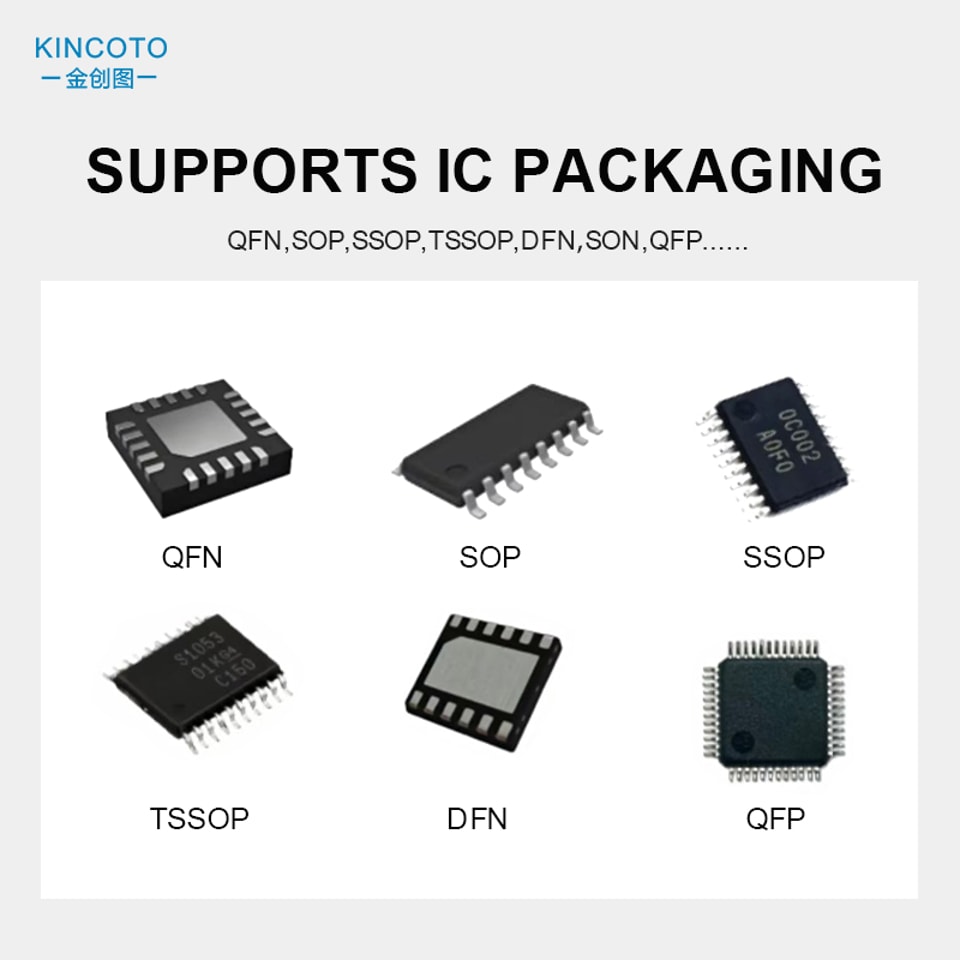

♦Supports Multiple IC Packages – QFN, QFP, SOP, SSOP, TSSOP, DFN, SON, and more
♦PLC Control – Reliable and easy-to-operate control system for consistent marking quality
♦Compact Space-Saving Design – Small footprint with host size of 600×820×1600mm – easy to integrate into existing lines
♦In-Line Operation – Directly processes tape-and-reel ICs without removing chips from tape
♦Pure Marking Solution – Dedicated laser marking machine – no programming/burning function – focused exclusively on high-speed laser marking
Technical parameters：
| Output Efficiency | 12000 UPH |
| Host Size (L×W×H) | 600 × 820 × 1600 mm |
| Overall Size (L×W×H) | 1250 × 820 × 1600 mm |
| Supported IC Packages | QFN, QFP, SOP, SSOP, TSSOP, and more |
| Function | Laser marking and typing |
| Control Method | PLC control |
| Supported Packaging | Tape (8–32mm tape width) |
| Type | Pneumatic / Pure electric (selectable) |
| Configuration | Automatic dust suction filter |
| Positioning System | CCD vision positioning |
| Total Weight | 300 KG |
| Marking Function | Laser marking only – No programming/burning function |

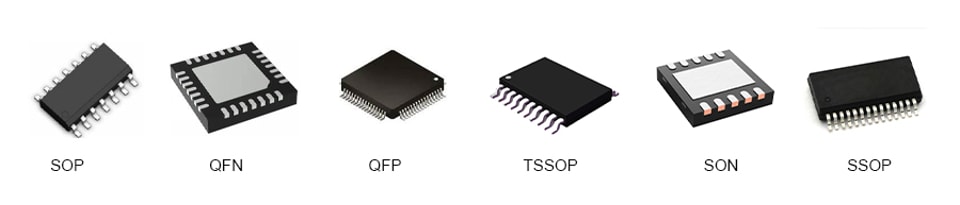

Suitable for programming chip packaging:

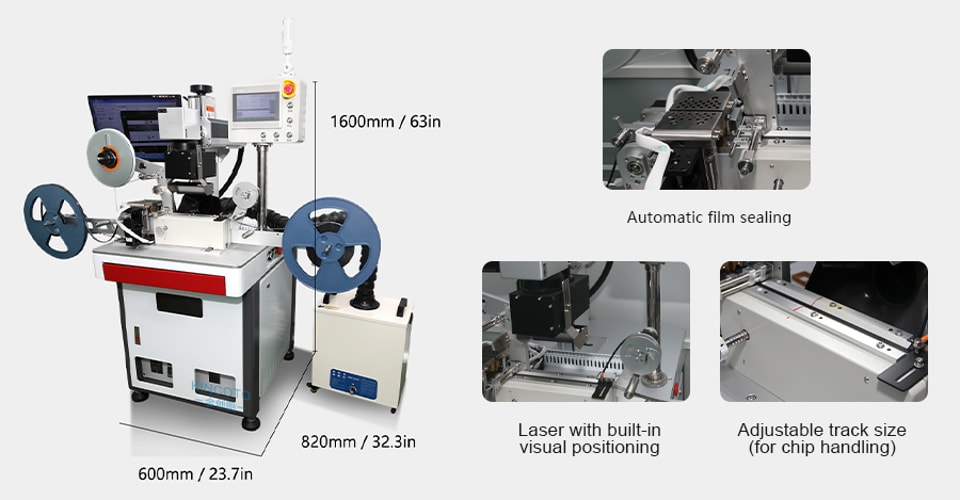

Product dimensions:

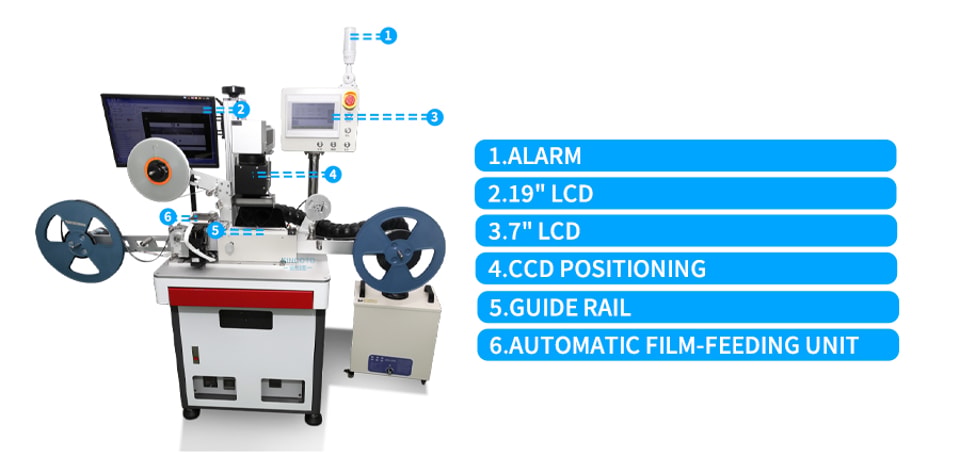

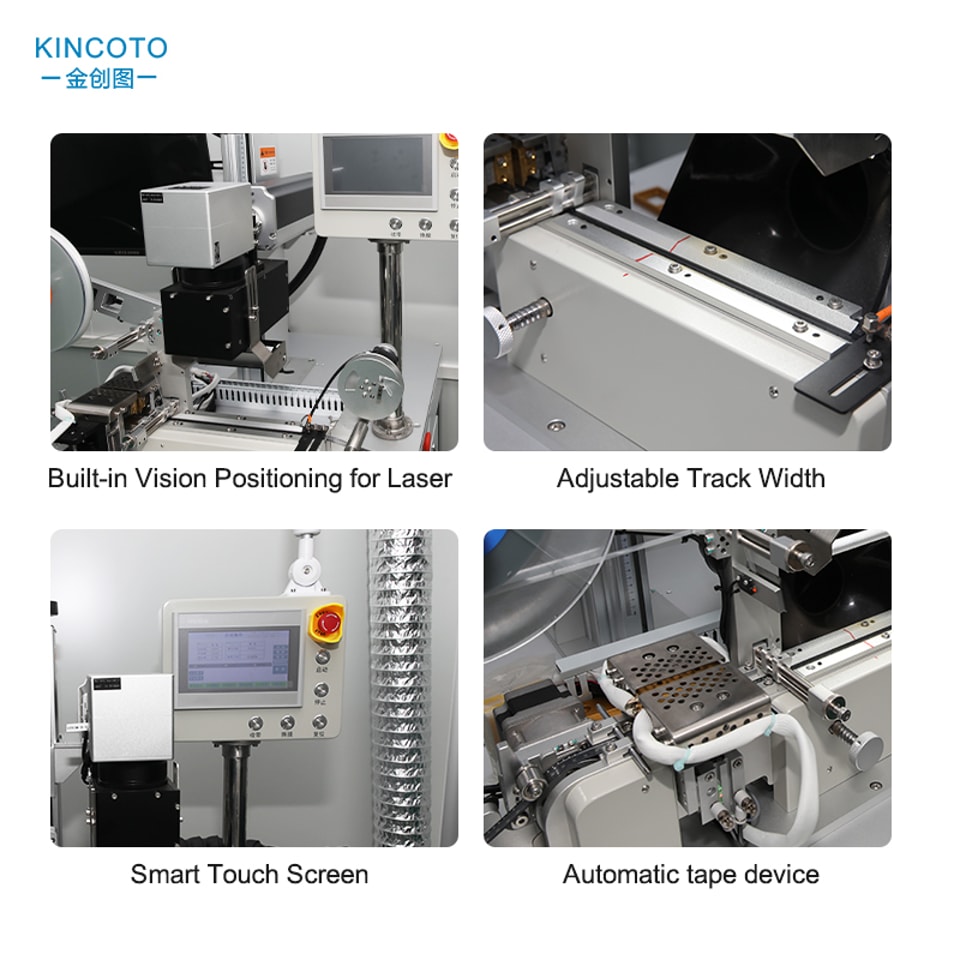

Product Structure：
Package：
Group photo during factory visit：
