IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
KA82-2500HPM Automatic Tape-to-Tape IC Programming Machine
1.Supports IC incoming packaging in tape and reel, tray, and fully automatic loading.
2. Eight programming stations, 1-8 programming stations can be customized to start.
3.The tray and tape can be converted to each other after programming.
4.Record the quantity of OK and NG, the operation is simple and convenient, and easy to use.
Please include the IC model, package, input format and target UPH.
KA82-2500HPM Tray Programming Machine
1.Supports IC incoming packaging in tape and reel, tray, and fully automatic loading.
2. Eight programming stations, 1-8 programming stations can be customized to start.
3.The tray and tape can be converted to each other after programming.
4.Record the quantity of OK and NG, the operation is simple and convenient, and easy to use.
5.It supports a wide range of chip packages, including QFN, SOP, BGA and QFP.It's very convenient to program chips of different packages.
6.Chip for marking and dotting function.A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange).
Technical parameters：
| output efficiency | 2500UPH |
| Overall size | 1600*600*1600mm |
| Supports ic packaging | QFP/QFN/SOP/BGA.... |
| Programmming station | 8 stations |
| pick-and-place device | 4 vacuum nozzles |
| Monitor | 19"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.3kw |
| Toal weight | 580kg |
Suitable for programming chip packaging:
Product dimensions:

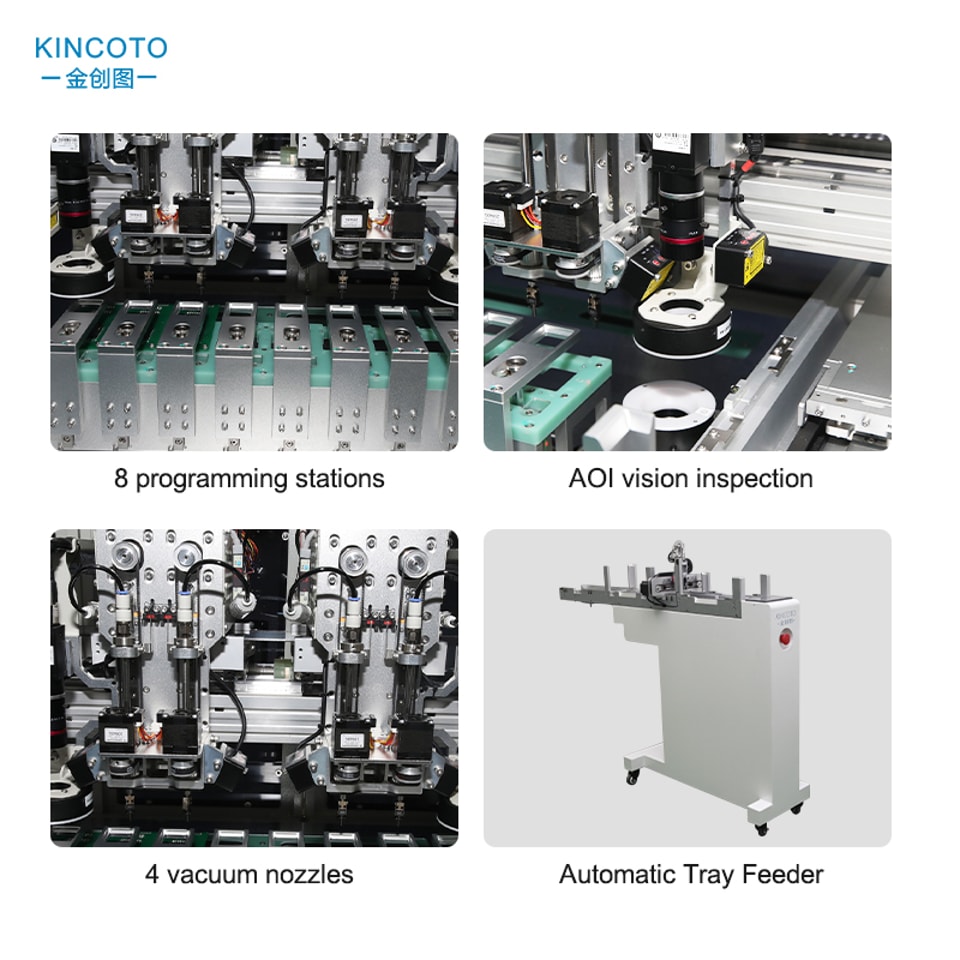

Product Structure：
Package：
Group photo during factory visit：
