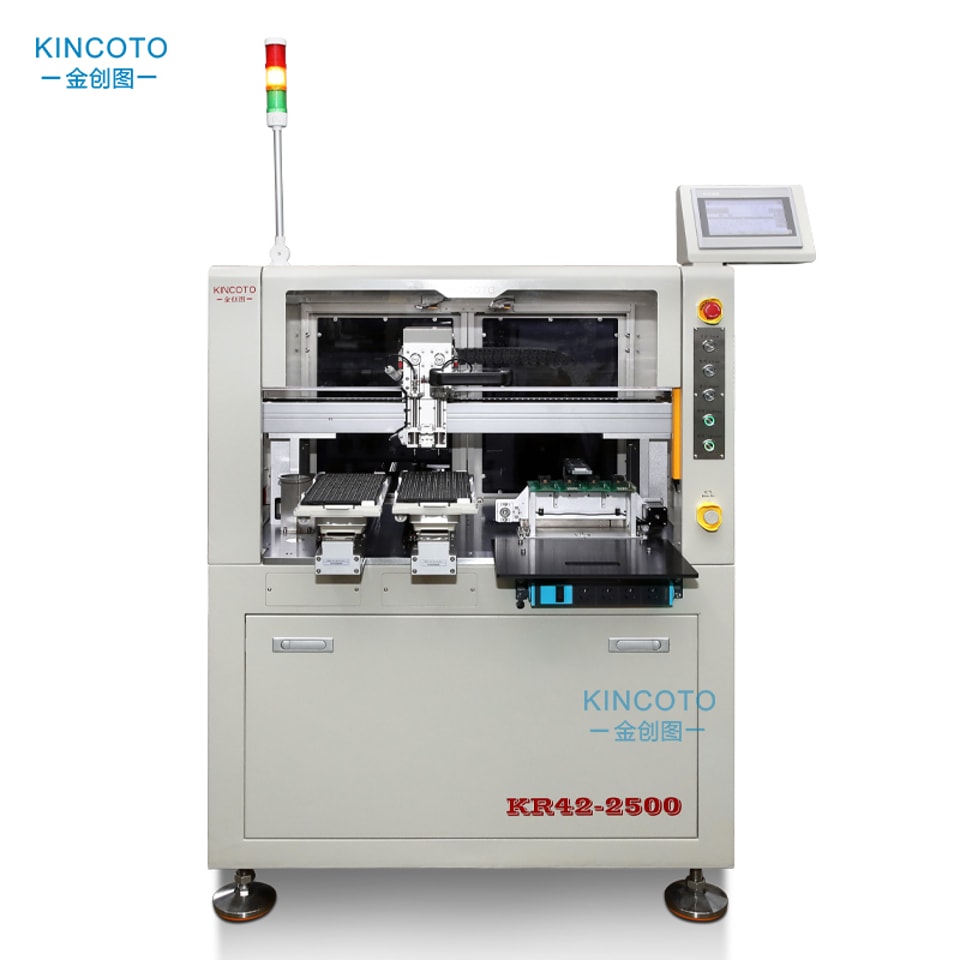

KR42-2500REV Automatic tray programming machine
1.Supports IC incoming materials in tray packaging as well as manual tray loading, flexible for tray‑based IC production scenarios.
2.Compatible with offline programmer, enabling pre‑processing of firmware files independently without relying on host computer.
3.Total 4 programming stations, 1‑4 stations configurable. Flexible setup to adapt to different output requirements for small‑to‑medium‑volume production.
4.All‑electric drive design with motor‑driven control, no air source required. Simply plug‑and‑play for easy installation and commissioning. Low‑noise operation brings quieter workshop environment.
5.Compact pure‑electric structure saves factory space, eliminates air‑pipe layout and air‑compressor investment cost.
6.Simple human‑machine interface, convenient for operators to finish setup and daily maintenance.
Please include the IC model, package, input format and target UPH.
1.Supports IC incoming materials in tray packaging as well as manual tray loading, flexible for tray‑based IC production scenarios.
2.Compatible with offline programmer, enabling pre‑processing of firmware files independently without relying on host computer.
3.Total 4 programming stations, 1‑4 stations configurable. Flexible setup to adapt to different output requirements for small‑to‑medium‑volume production.
4.All‑electric drive design with motor‑driven control, no air source required. Simply plug‑and‑play for easy installation and commissioning. Low‑noise operation brings quieter workshop environment.
5.Compact pure‑electric structure saves factory space, eliminates air‑pipe layout and air‑compressor investment cost.
6.Simple human‑machine interface, convenient for operators to finish setup and daily maintenance.
Technical parameters：
| Output efficiency | 2500UPH |
| Overall size | 1000*730*1450mm |
| Supports ic packaging | SOP/QFN/BGA/QFP..... |
| Programmming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | PLC |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Total weight | 280 KG |
Suitable for programming chip packaging:
Product dimensions:

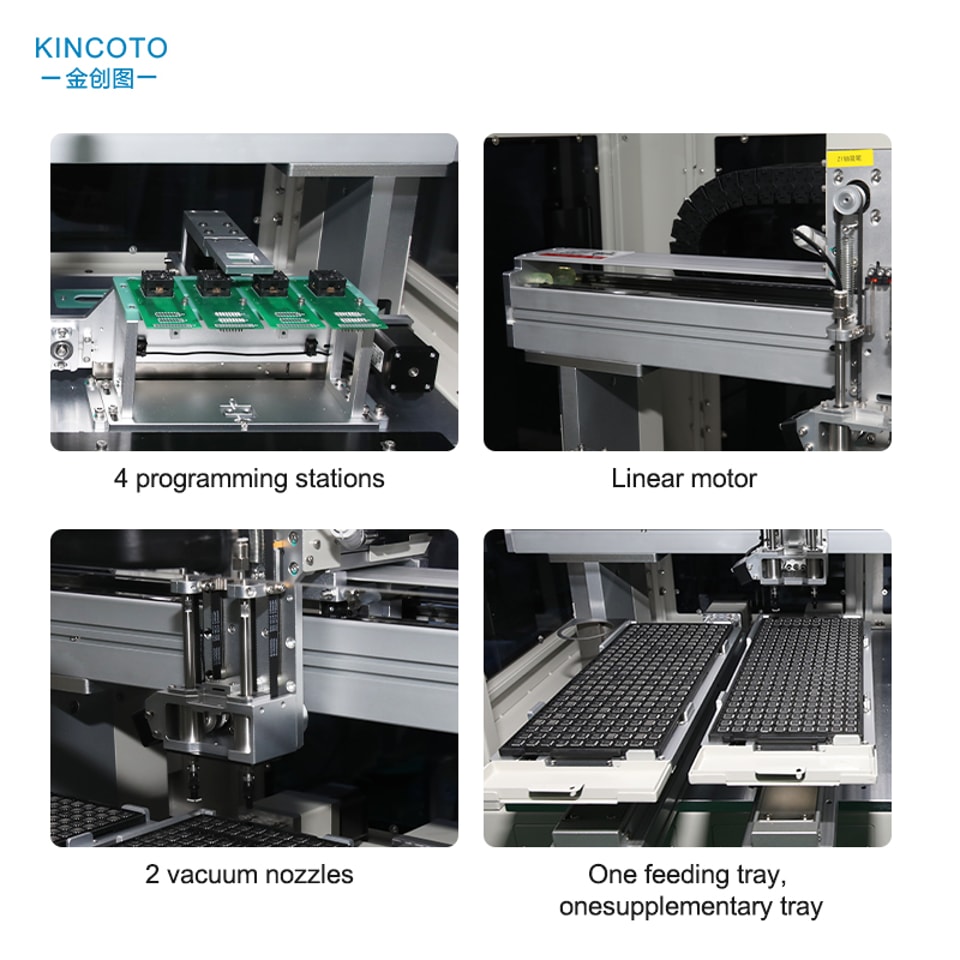

Product Structure：
Package：
Group photo during factory visit：
