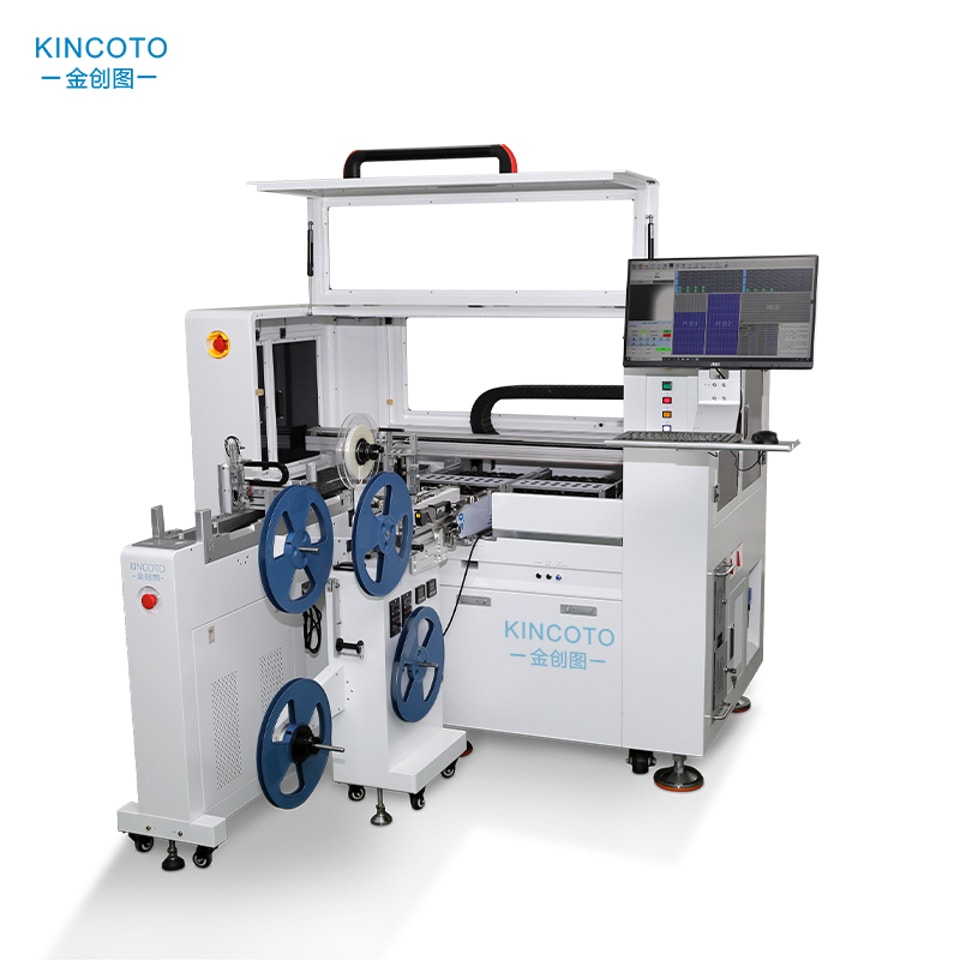

Tray and tape integrated programming machine KA3000-GS6
Output Efficiency:3000 – 3500 UPH
Supported IC Packages: QFP, QFN, SOP, SSOP, TSSOP, and more
Operation Modes: tape in/tape out, tape in/tray out, tray in/tape out, and tray in/tray out.
Programming Channels: 48–96 stations (1–96 independently selectable)
Built-in Programmer: Universal programmer (supports SPI Flash, E-PROM, EEPROM, MCU, MPU, eMMC, PLCC, etc.)
Please include the IC model, package, input format and target UPH.
Tray and tape integrated programming machine KA3000-GS6

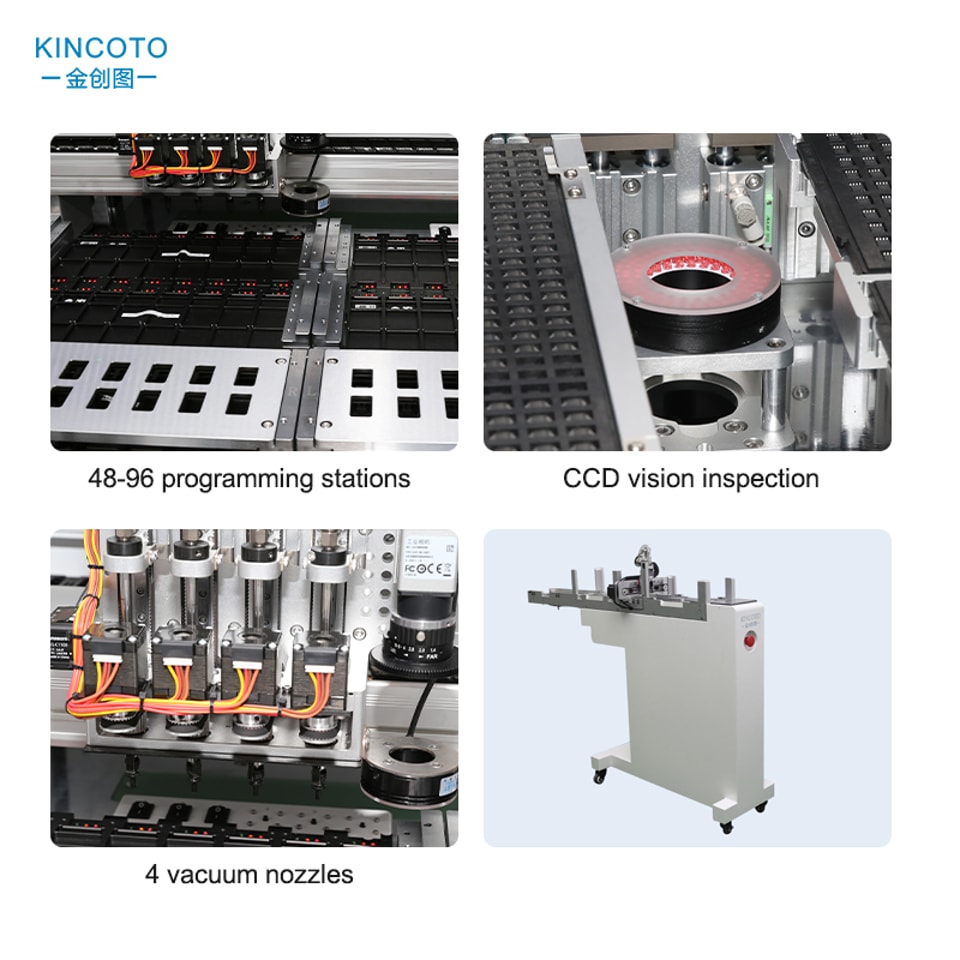

♦48–96 Programming Stations – The highest station count in its class. Supports 1–96 channels for maximum throughput and scalability
♦Built-in Universal Programmer – No external programmer needed. Supports SPI Flash, E-PROM, EEPROM, MCU, MPU, eMMC, PLCC, and more – all in one machine
♦4-in-1 Operation Modes – Tape in/tape out, tape in/tray out, tray in/tape out, tray in/tray out – one machine for all packaging combinations
♦±0.03mm High Precision – Linear motor + CCD vision alignment for accurate placement of fine-pitch packages (QFP, QFN, SOP, SSOP, TSSOP)
♦4 Vacuum Nozzles – Faster pick-and-place cycle times for ultra-high throughput
♦Plug-in Programming Sockets – Quick changeover between different IC types. Pre-configure sockets in advance for flexible production
♦Automatic Tray Feeder – Supports up to 20 trays for hours of unattended continuous operation
♦MES System Integration – Full production traceability and data logging for quality control
♦Large-Capacity File Support – Handles large-capacity programming files for complex ICs
♦19" LCD Touchscreen – Easy to use, store and recall programming settings
♦Optional Functions – Dot marking, altimeter, and AOI detection for enhanced quality control
Technical parameters：
| Output Efficiency | 3000 – 3500 UPH |
| Host Size (L×W×H) | 1730 × 980 × 1400 mm |
| Overall Size (L×W×H) | 2220 × 2000 × 1580 mm |
| Supported IC Packages | QFP, QFN, SOP, SSOP, TSSOP, and more |
| Programming Channels | 48–96 stations (1–96 independently selectable) |
| Pick & Place Device | 4 vacuum nozzles |
| Monitor | 19" LCD touchscreen |
| Control Mode | Motion control card |
| X-axis Drive | Linear motor |
| Programming Mode | Down-pressure socket (plug-in type for quick changeover) |
| Positioning System | CCD vision alignment |
| Tray Loading/Unloading | Automatic tray feeder – supports up to 20 trays |
| Tape Feeder | Standard 12–16 mm, optional 8/24/32/44mm |
| Tape Discharging | Adjustable automatic hot-pressing film sealing device |
| Input Voltage | AC220V±10% / 50Hz（3wires） |
| Power | 1.3 KW |
| Air Source | 0.2–0.6 MPA |
| Total Weight | 950 KG |
| Optional Functions | Dot marking, Altimeter, AOI detection |

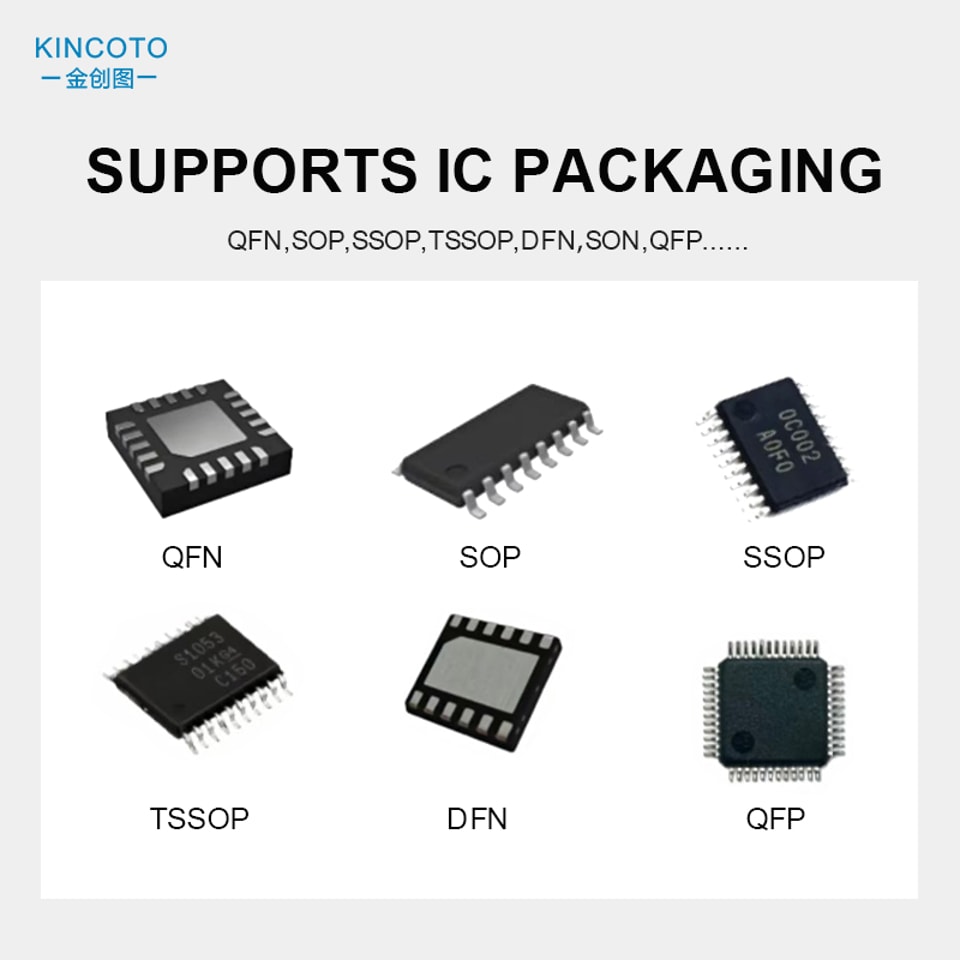

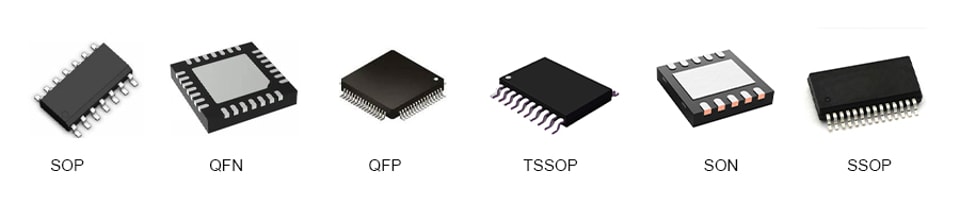

Suitable for programming chip packaging:

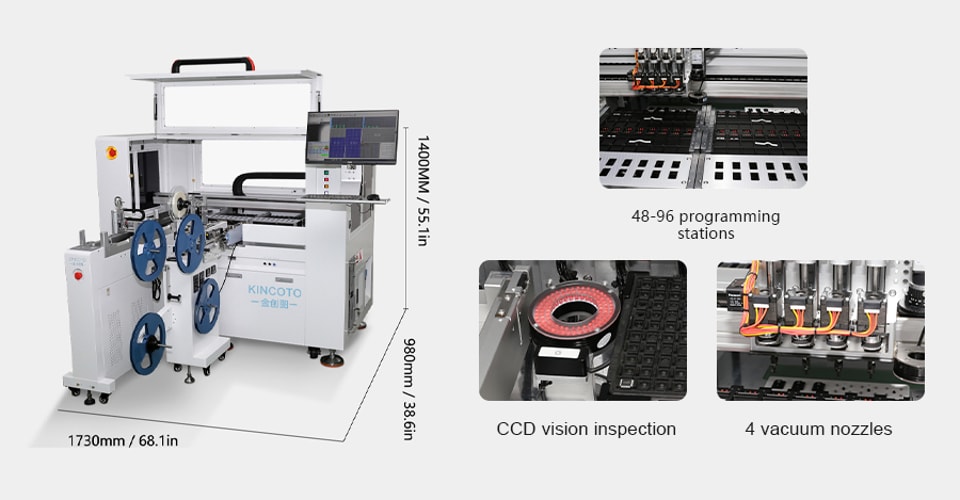

Product dimensions:

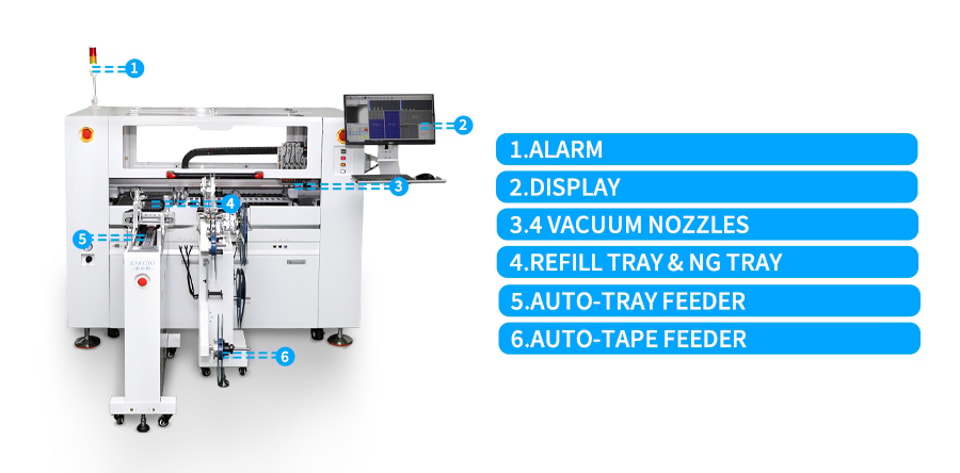

Product Structure：
Package：
Group photo during factory visit：
