KINCOTO EQUIPMENT

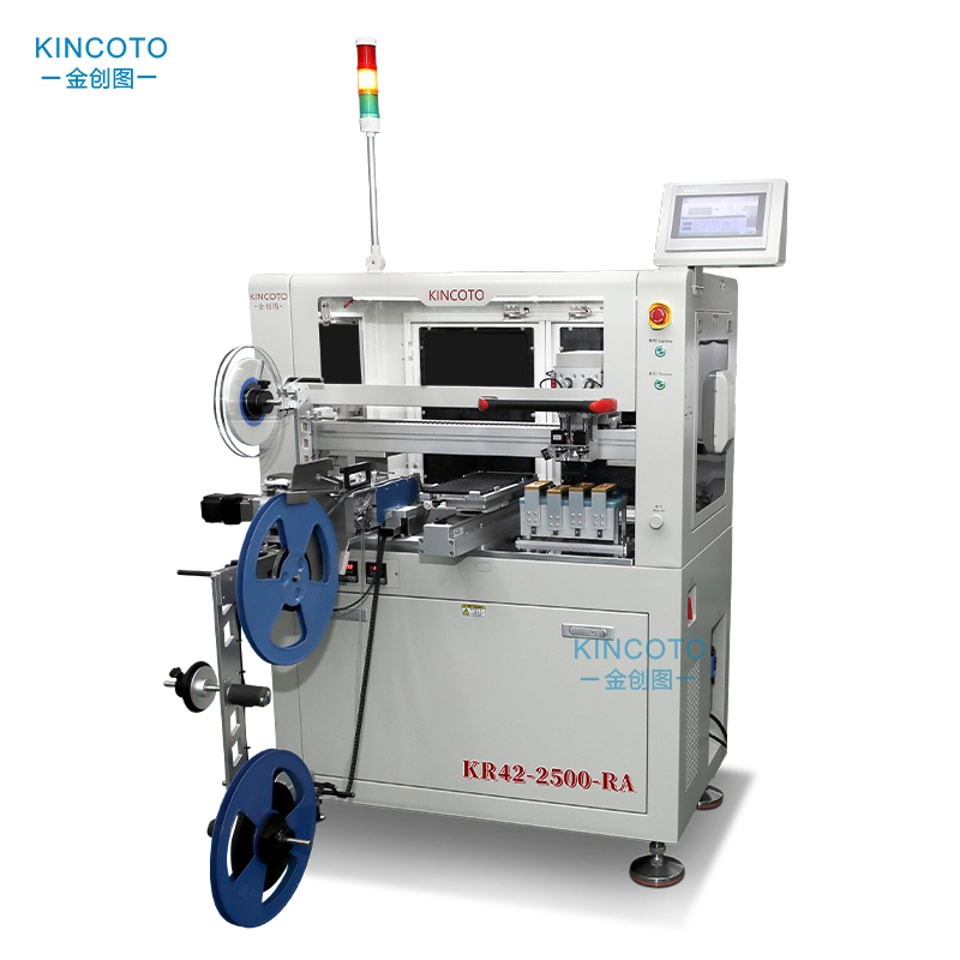

KR42-2500RA Tray and tape integrated programming machine
1.Supports tape‑and‑reel feeding and manual tray loading, compatible with multiple IC packaging types.
2.4 programming stations total; 1‑4 stations configurable for flexible throughput adjustment.
3.Automatically records OK/NG counts for production traceability, user‑friendly for easy operation.
4.Four‑mode input‑output: tape‑in & tray‑out, tray‑in & tape‑out, tape‑in & tape‑out, tray‑in & tray‑out.
5.Enables packaging‑format conversion without extra auxiliary equipment.
6.Reliable mechanical structure for stable long‑run production.
Please include the IC model, package, input format and target UPH.
1.Supports IC feeding from tape‑and‑reel as well as manual tray loading. Handles multiple IC packaging forms to adapt to diverse production materials.
2.Equipped with 4 programming stations in total. 1‑4 stations are configurable, allowing flexible setup to match different throughput demands for medium‑low volume production.
3.Automatically counts and records OK & NG chip quantities, realizing full‑process production traceability for quality audit. Intuitive operating interface brings simple‑to‑use experience for operators.
4.Supports four flexible input‑output modes: tape‑in & tray‑out, tray‑in & tape‑out, tape‑in & tape‑out, tray‑in & tray‑out. Freely switch modes to satisfy various packaging conversion requirements.
5.Flexible material conversion capability, helps customers complete packaging format conversion without extra auxiliary equipment.
6.Stable mechanical performance ensures consistent output quality during long‑term continuous operation.
Technical parameters：
| Output efficiency | 2500UPH |
| Overall size | 1000*1080*1450mm |
| Supports ic packaging | SOP/QFN/SSOP/QFP..... |
| Programmming station | 4 stations |
| Pick-and-place device | 2 vacuum nozzles |
| Pick and place accuracy | ±0.03MM |
| Control mode | Motion control card |
| programming mode | Lower pressure socket |
| Input voltage | AC220/50HZ |
| Total weight | 255 KG |
Suitable for programming chip packaging:
Product dimensions:

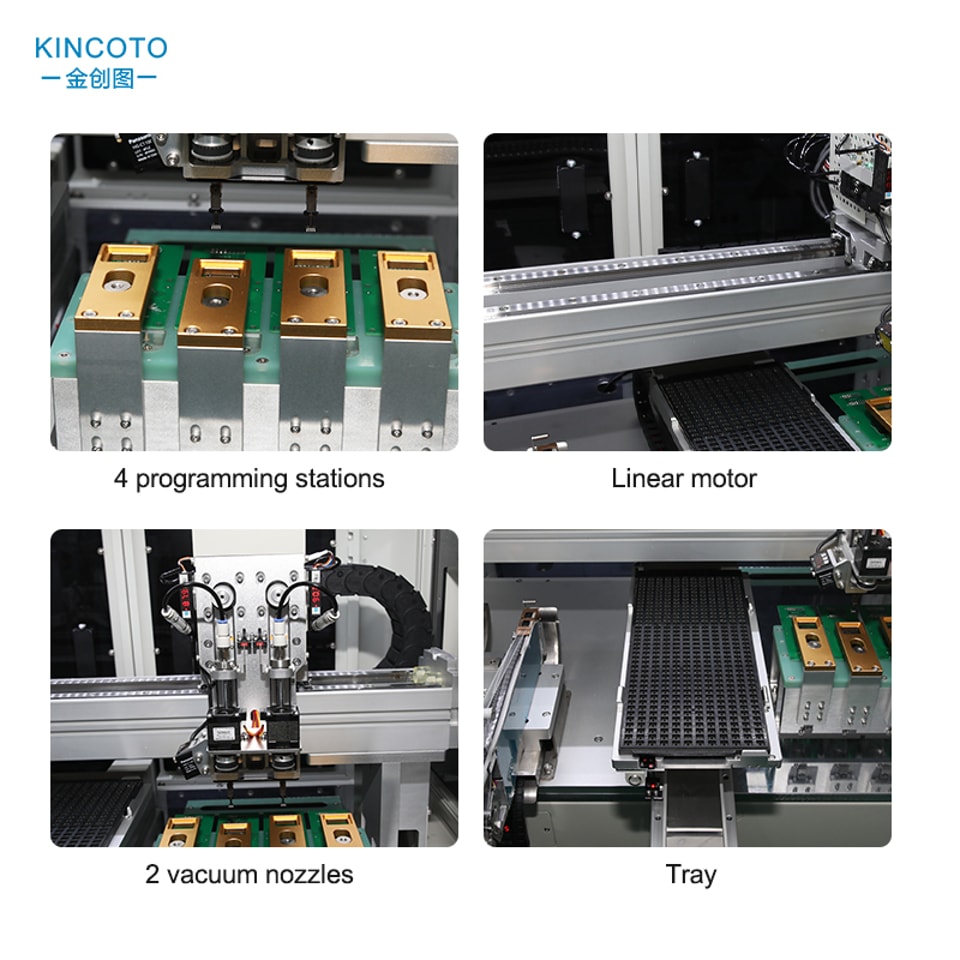

Product Structure：
Package：
Group photo during factory visit：
