IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT

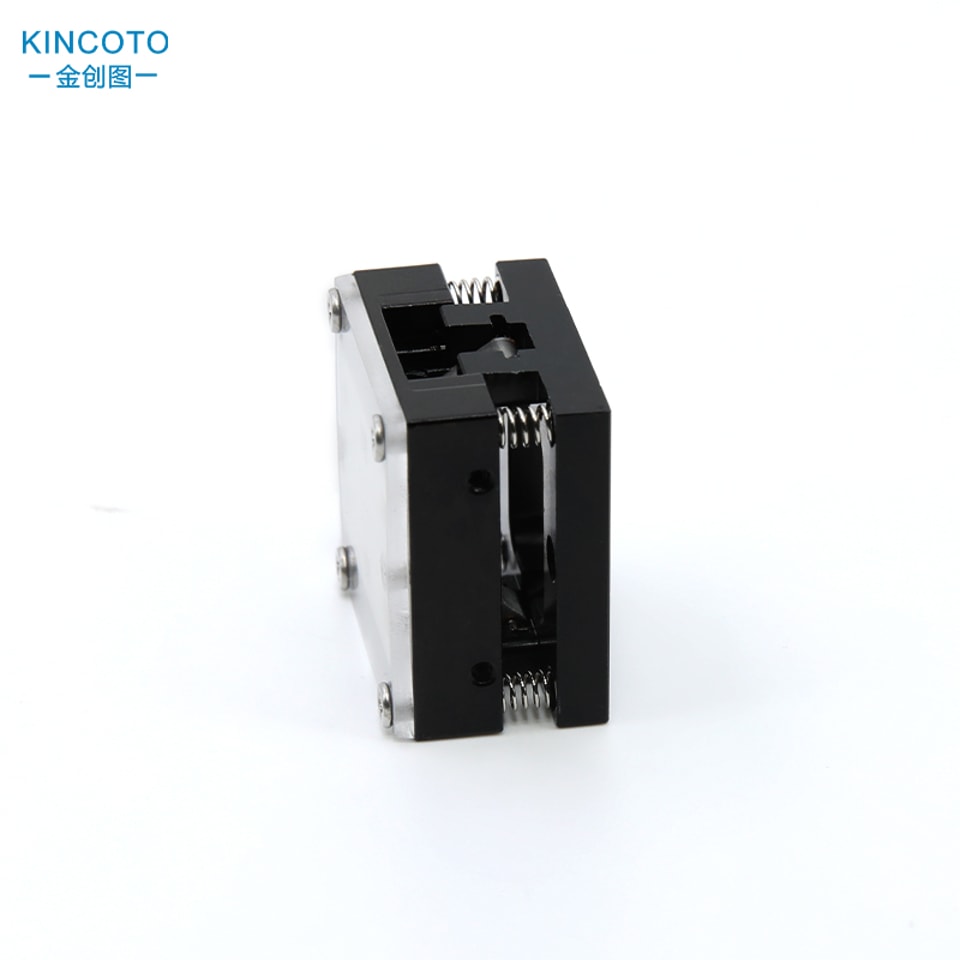

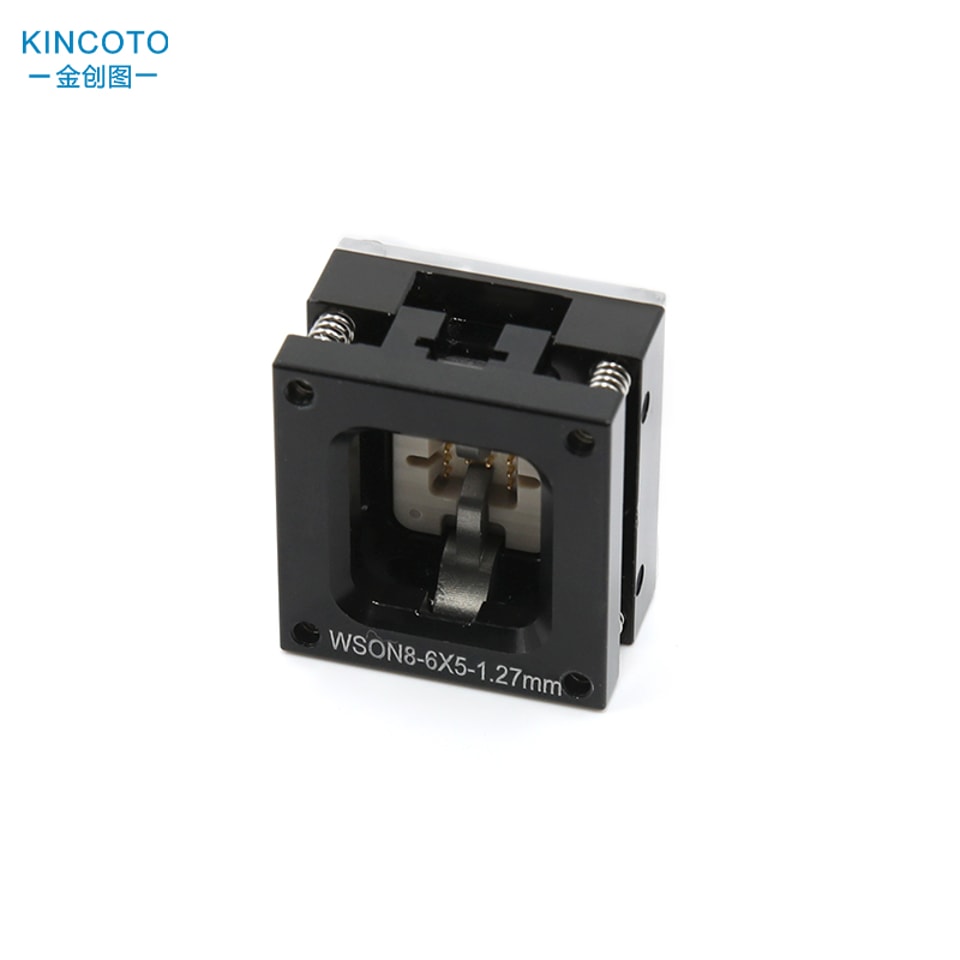

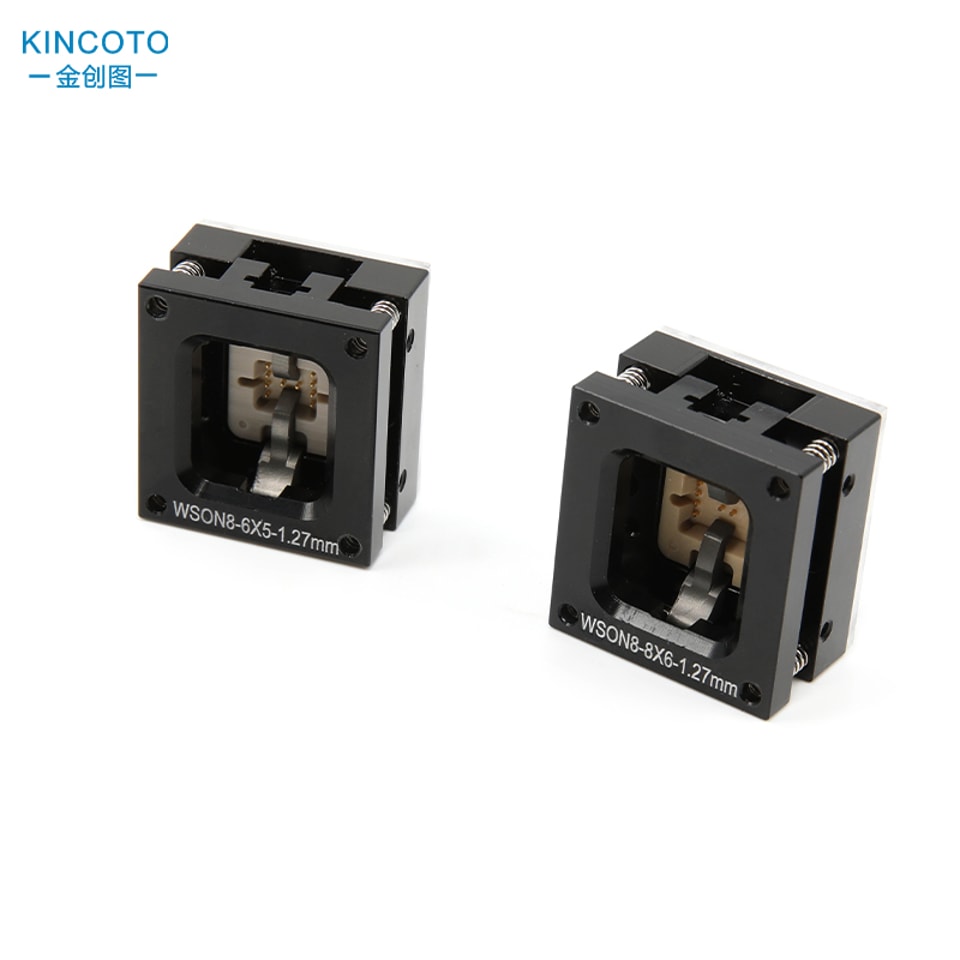

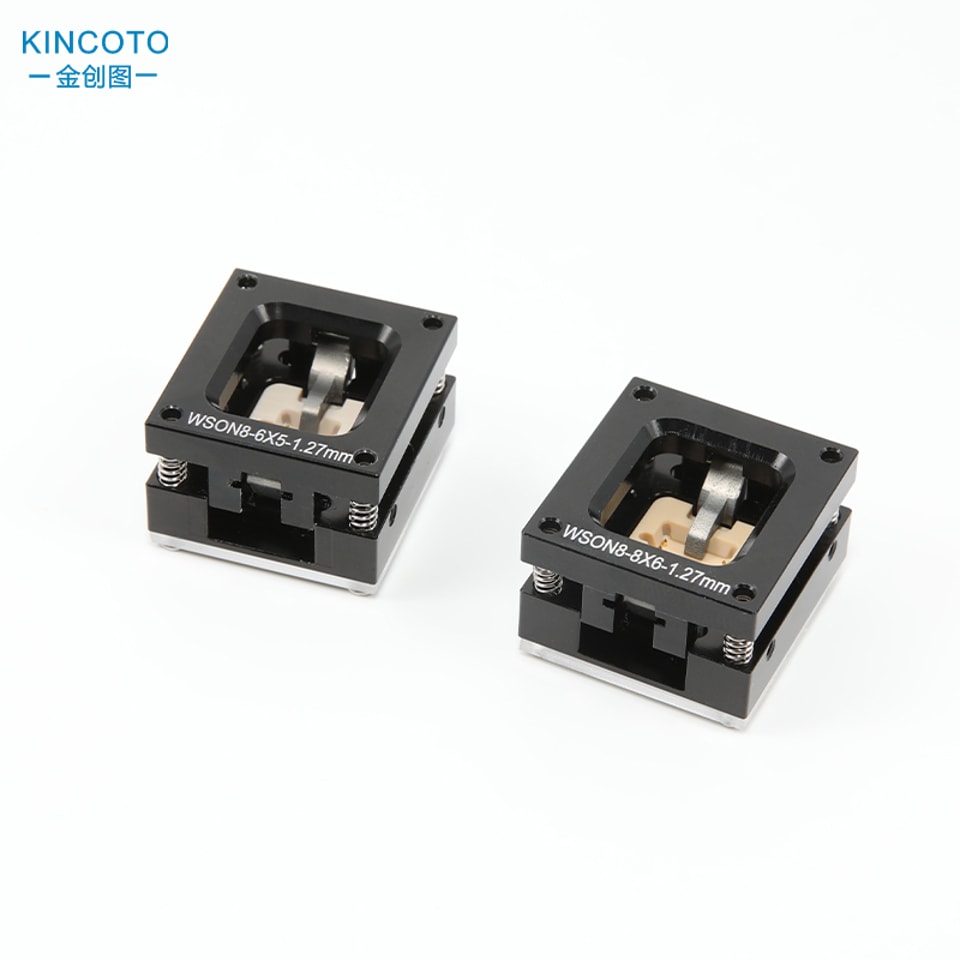

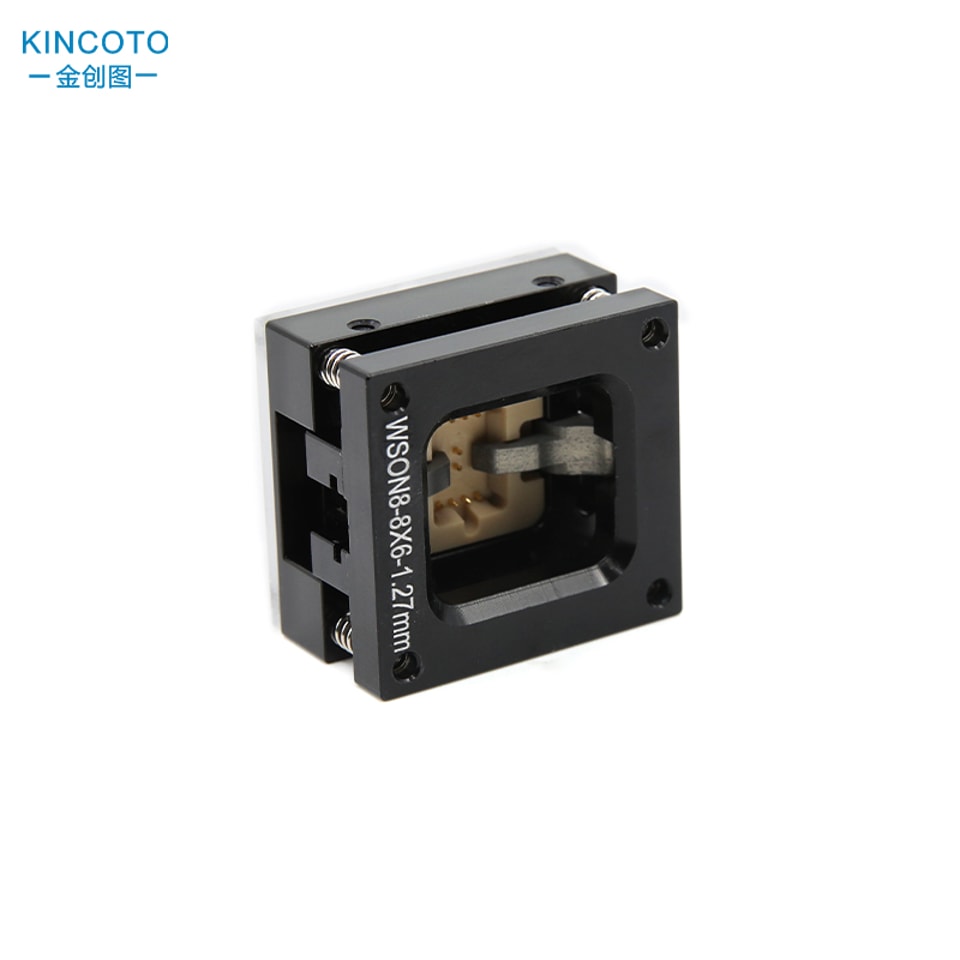

WSON Series IC Socket
Product: Programming Socket
Models: WSON8-6×5-1.27mm, WSON8-8×6-1.27mm
Test Method: Push-down programming
Key Features: Various specifications, stable performance, simple operation
Shell Material: Special engineering aluminum material with high strength
Contact Technology: Dual-contact / dual-trigger point technology for stable and reliable connection
Probe Design: Replaceable probes for extended service life and cost savings
Please include the IC model, package, input format and target UPH.
WSON Series IC Socket

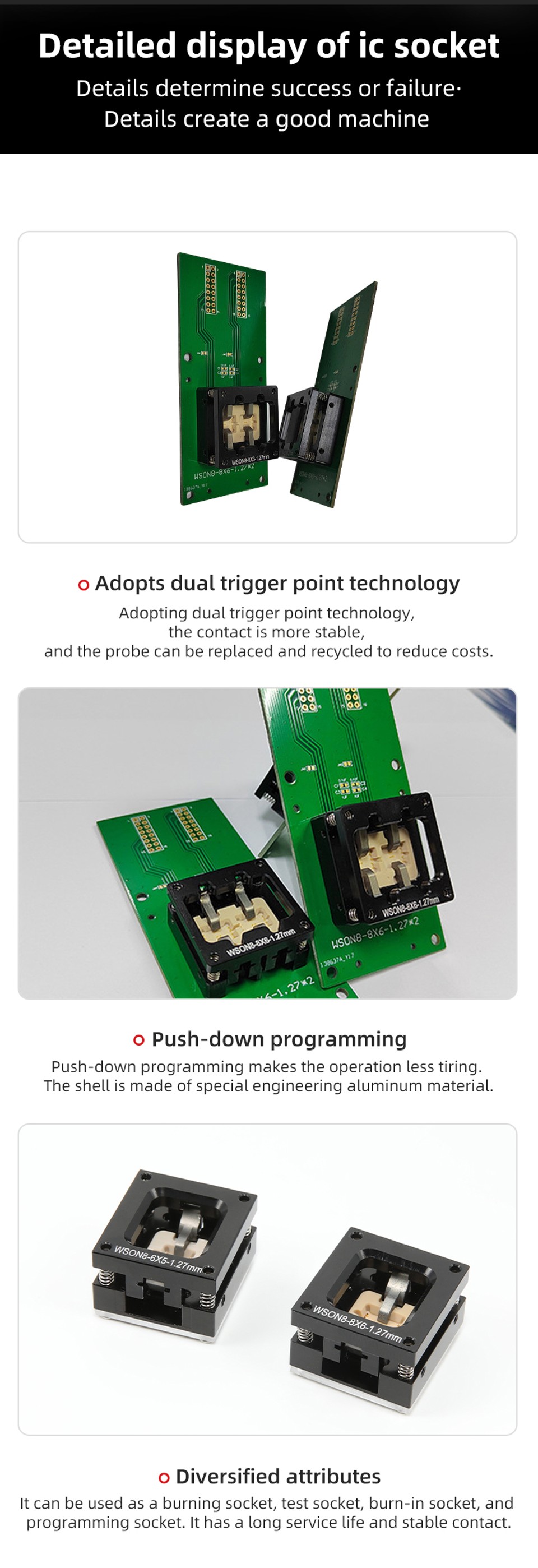

♦Replaceable Probe Design – Adopts dual-contact technology for more stable contact; probes can be replaced and recycled to reduce long-term costs
♦Push-down Programming – Comfortable push-down feel, reduces operator fatigue during extended use
♦Durable Shell Material – Made of special engineering aluminum material with high strength and excellent wear resistance
♦Wide Application – Can be used as programming socket, test socket, burn-in socket, and adapter socket
♦Strong Compatibility – Specifically designed for WSON8 package ICs with different chip sizes
♦Easy to Install – Simple installation process, no complex tools required
♦Fast Delivery & Reliable After-Sales – Quick shipping with full after-sales support
Technical parameters：
| Model | Chip Size | Pin Pitch | Test Method |
| WSON8-6×5-1.27mm | 6 × 5 mm | 1.27 mm | Push-down programming |
| WSON8-8×6-1.27mm | 8 × 6 mm | 1.27 mm | Push-down programming |
More models and custom specifications available upon request.

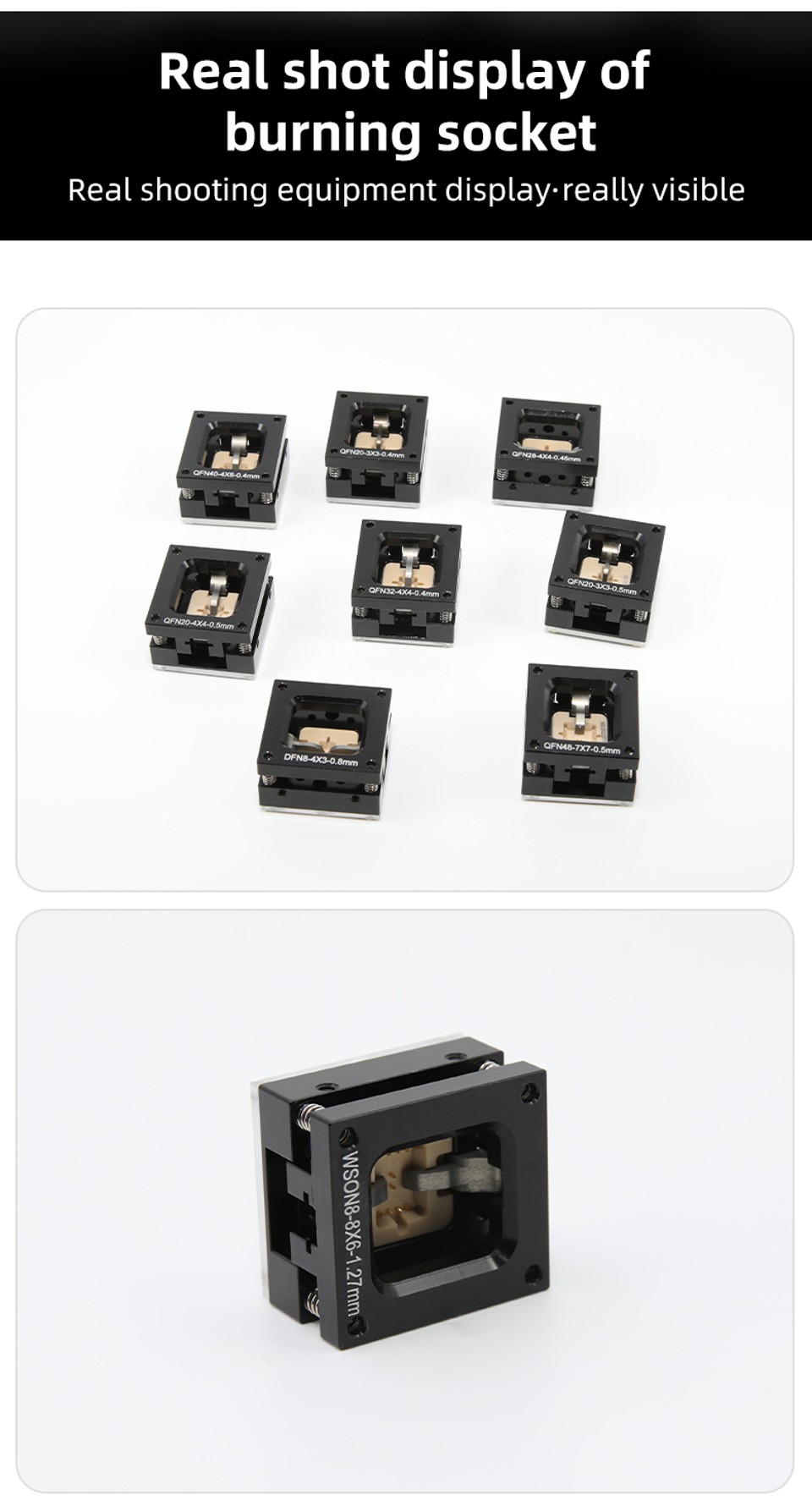

Application Showcase：
Group photo during factory visit：
