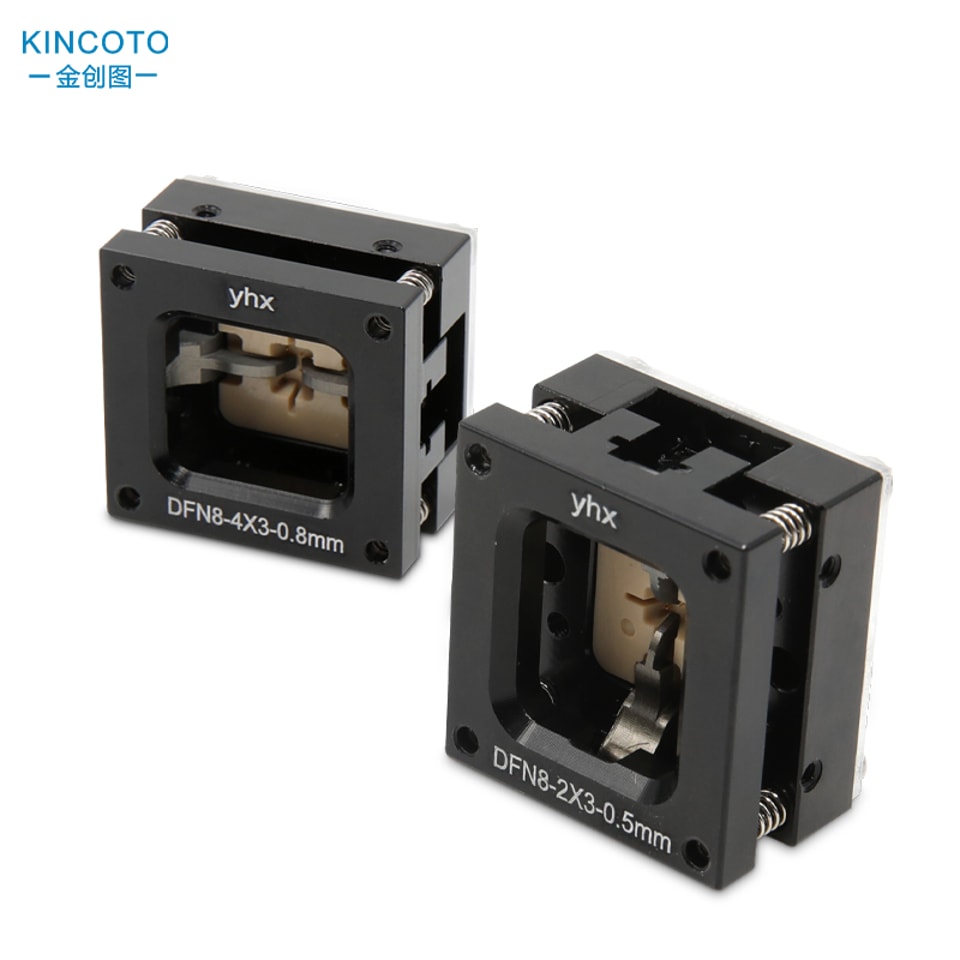

DFN Series IC Socket
Product: Programming Socket
Applications: IC programming, testing, burn-in, and adapter applications
Test Method: Push-down programming
Key Features: Various specifications, stable performance, simple operation
Shell Material: Special engineering aluminum material with high strength
Contact Technology: Dual-contact / dual-trigger point technology for stable and reliable connection
Probe Design: Replaceable probes for extended service life and cost savings
Please include the IC model, package, input format and target UPH.
DFN Series IC Socket

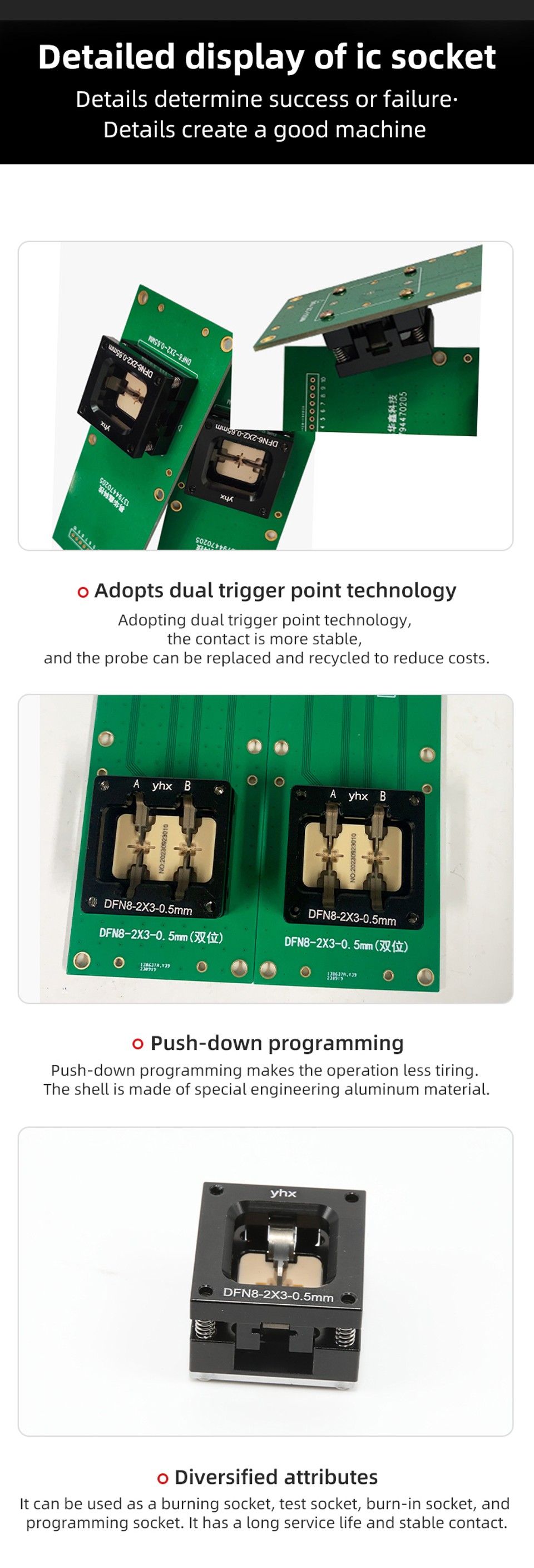

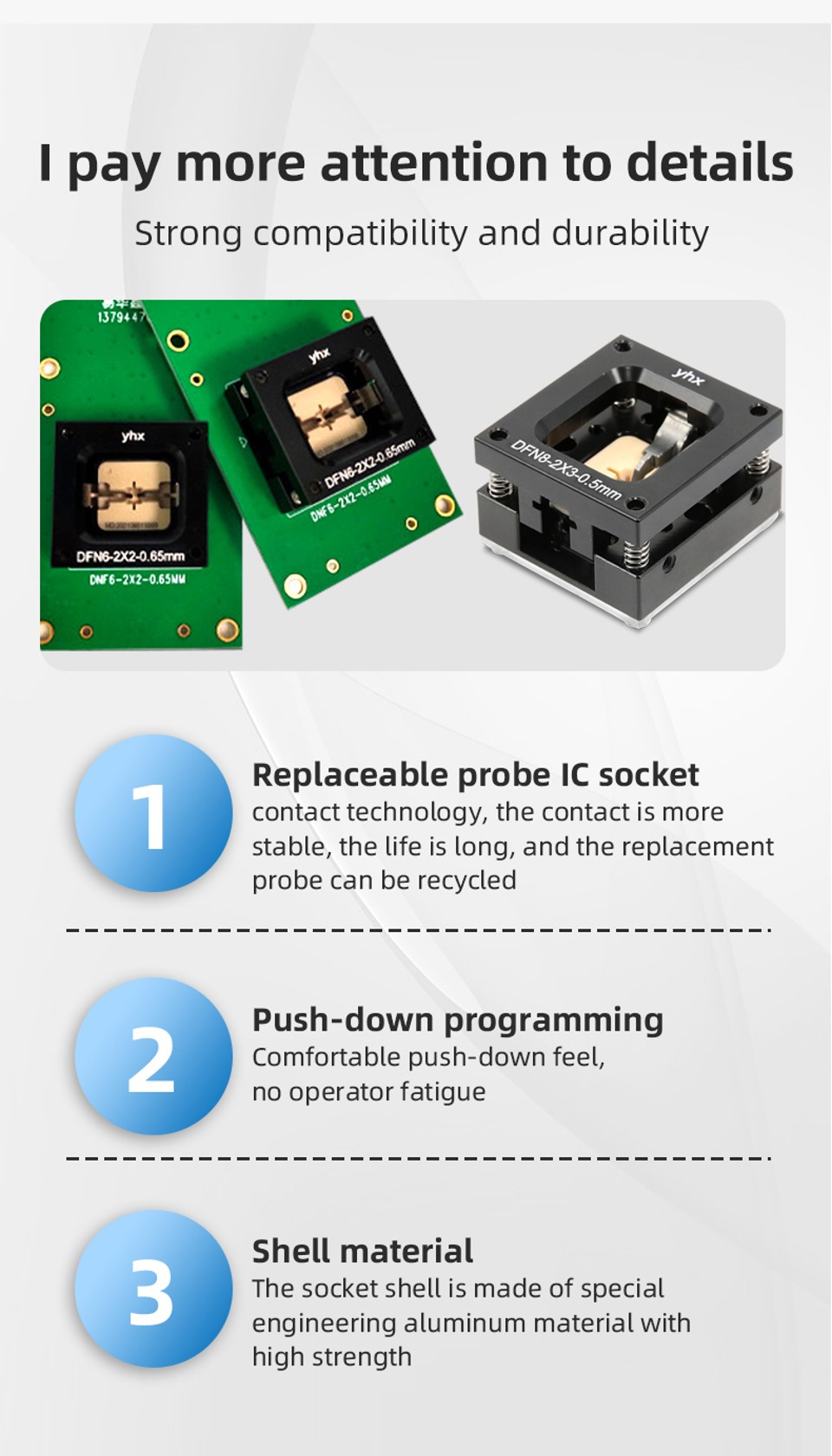

♦Replaceable Probe Design – Adopts dual‑contact technology for more stable contact; probes can be replaced and recycled to reduce long‑term costs
♦Push‑down Programming – Comfortable push‑down feel, reduces operator fatigue during extended use
♦Durable Shell Material – Made of special engineering aluminum material with high strength and excellent wear resistance
♦Long Service Life – Stable and durable construction ensures reliable performance over extended periods
♦Wide Application – Can be used as programming socket, test socket, burn‑in socket, and adapter socket

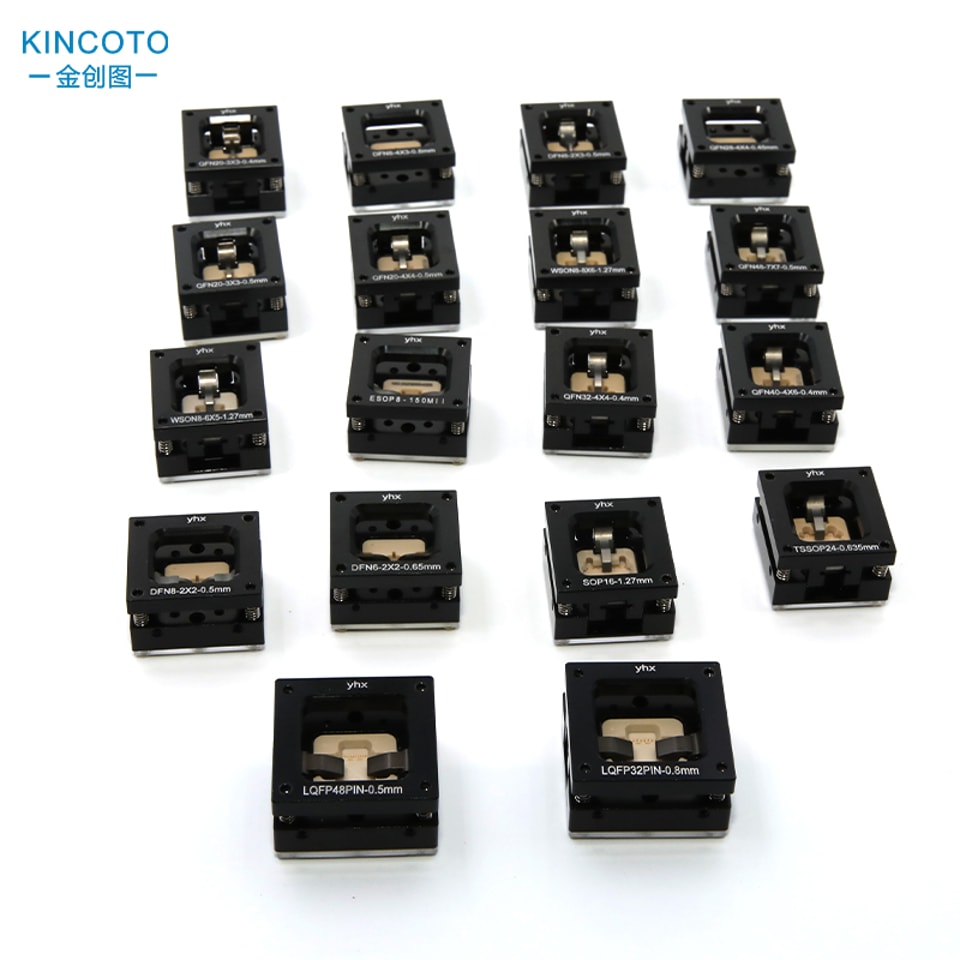

♦Strong Compatibility – Suitable for various DFN package ICs with different pin counts and sizes
♦Easy to Install – Simple installation process, no complex tools required
♦Fast Delivery & Reliable After‑Sales – Quick shipping with full after‑sales support
Technical parameters：
| Model | Chip Size | Pin Pitch | Test Method |
| DFN6-2×2-0.65 | 2 × 2 mm | 0.65 mm | Push-down |

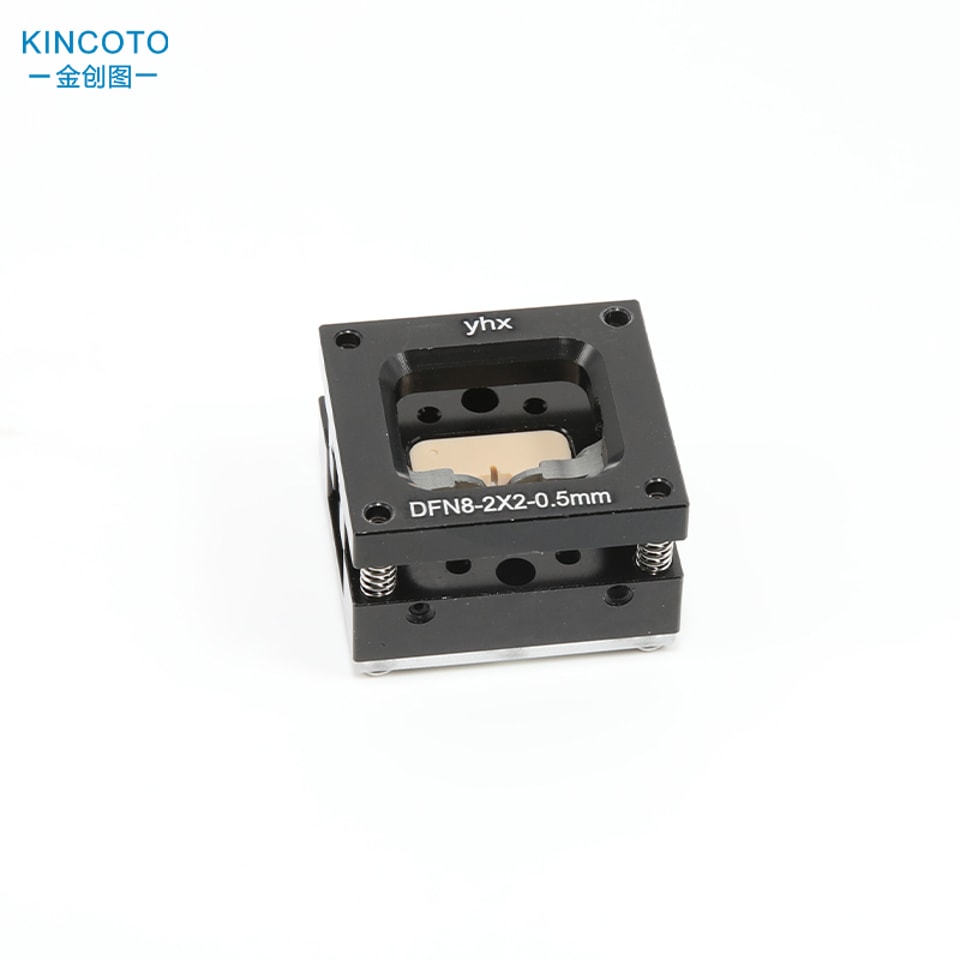

| DFN8-2×2-0.5 | 2 × 2 mm | 0.50 mm | Push-down |

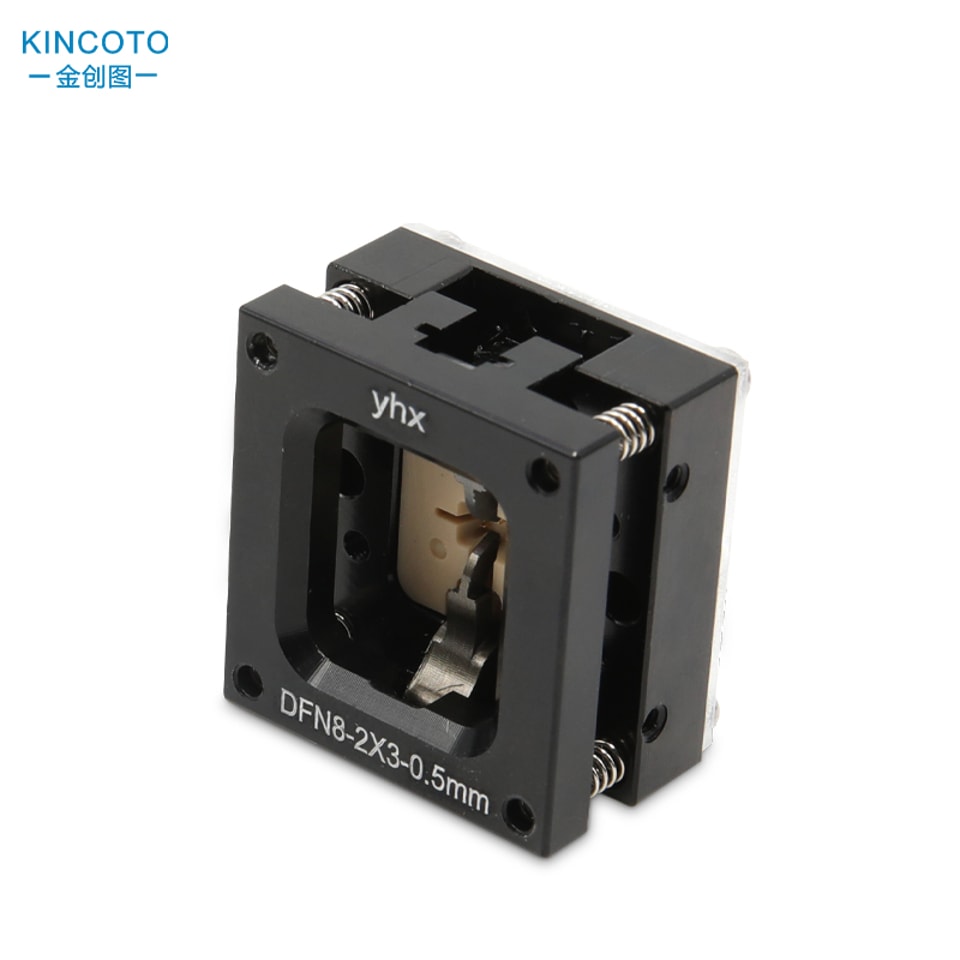

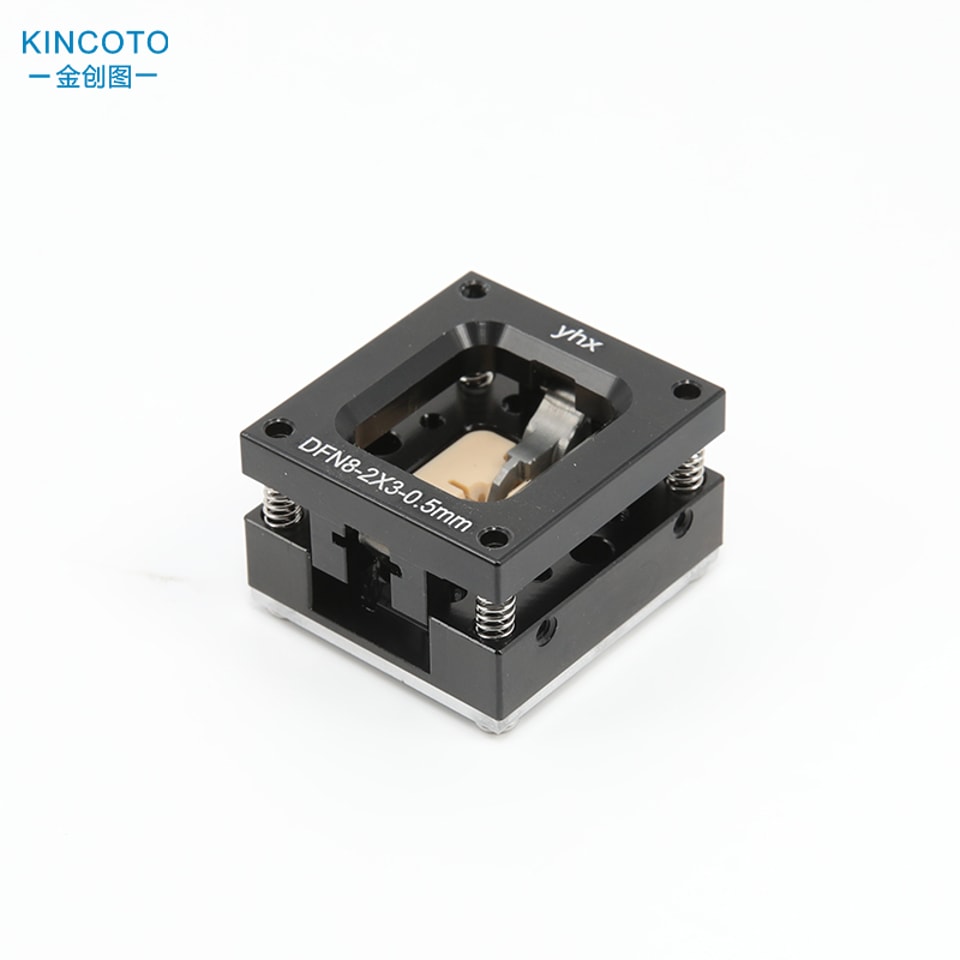

| DFN8-2×3-0.5 | 2 × 3 mm | 0.50 mm | Push-down |
| DFN8-3×3-0.65 | 3 × 3 mm | 0.65 mm | Push-down |

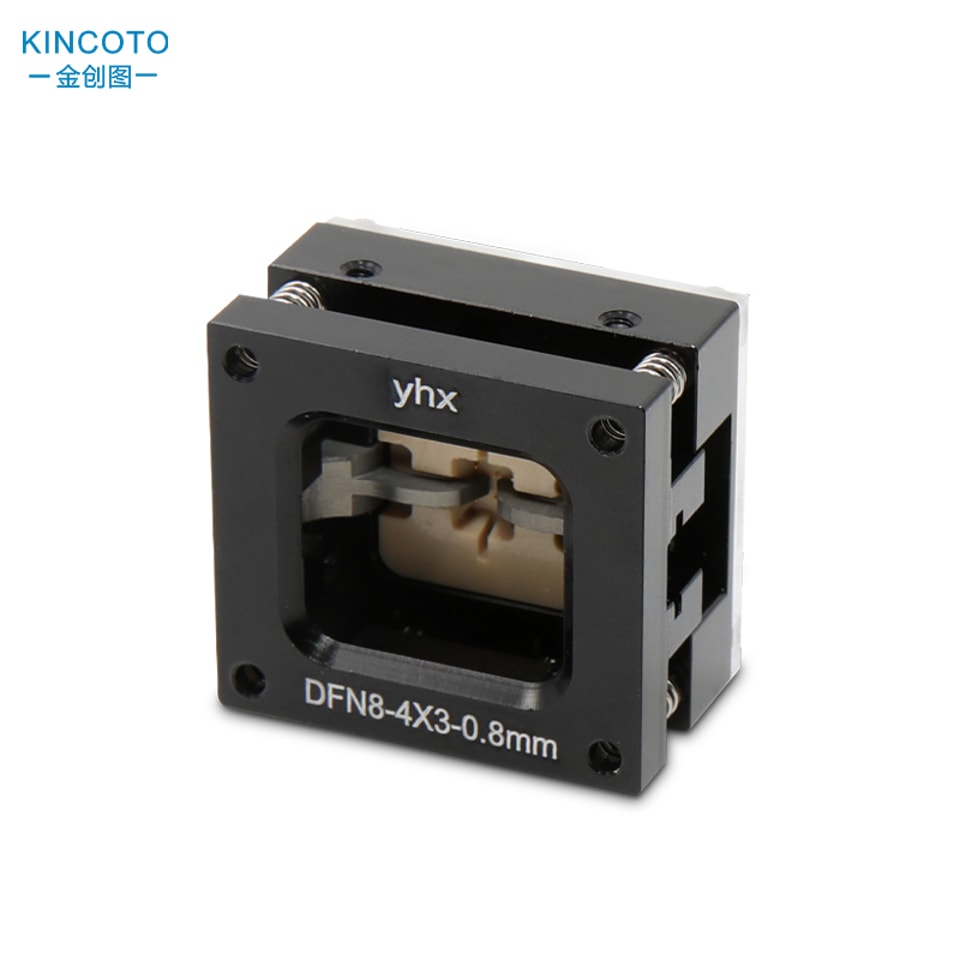

| DFN8-4×3-0.8 | 4 × 3 mm | 0.80 mm | Push-down |
More models and custom specifications available upon request.
