KINCOTO EQUIPMENT

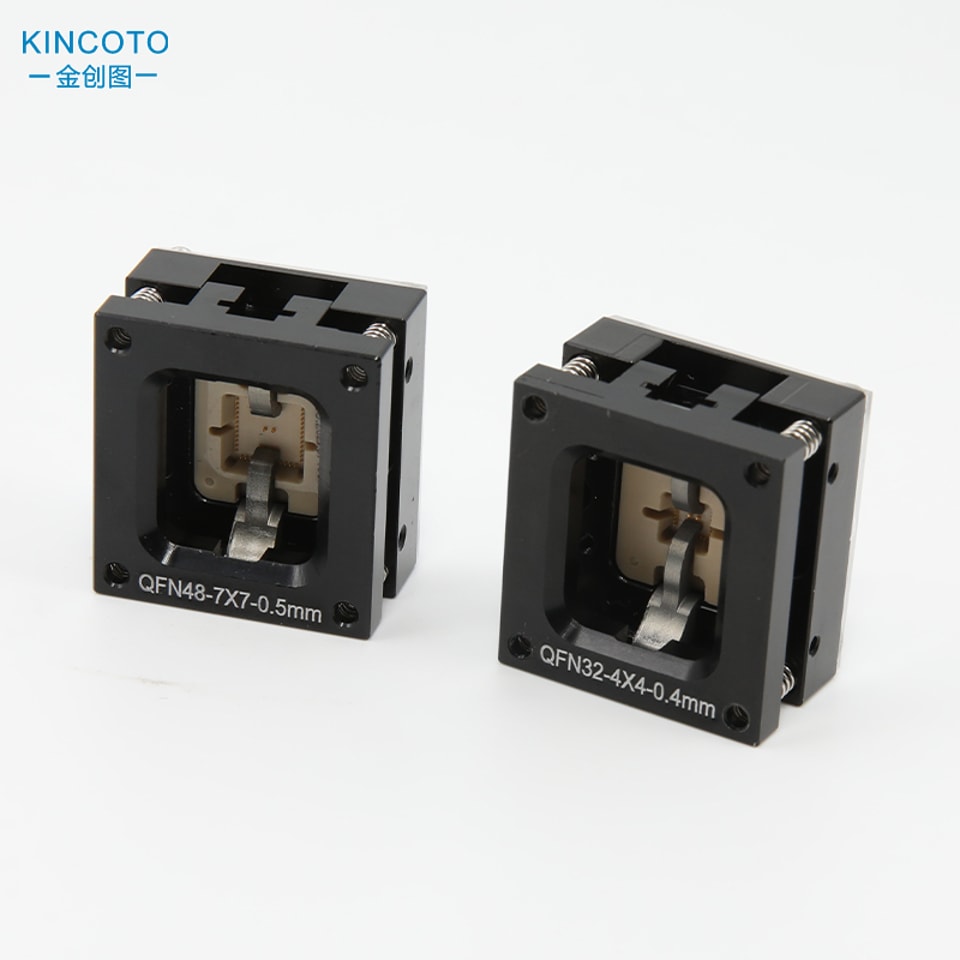

QFN Series IC Socket
Product Name: QFN Series IC Socket / Programming Socket

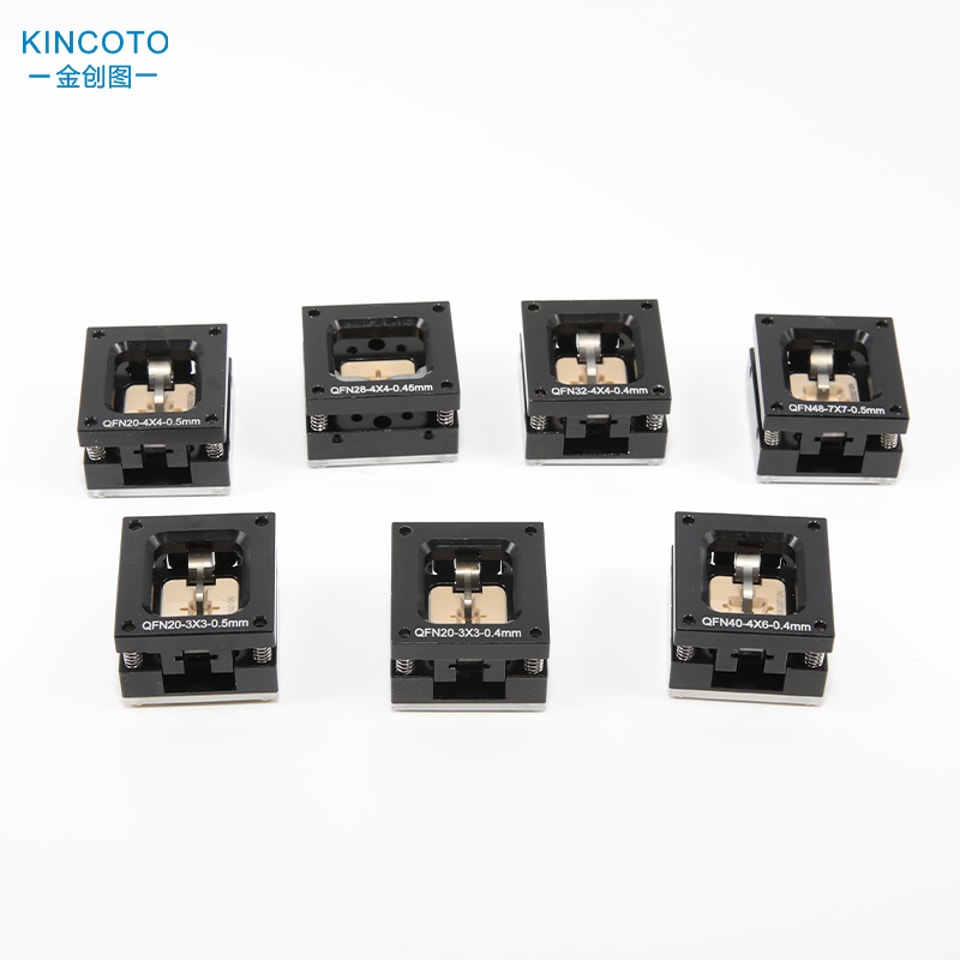

Models: QFN20-3×3-0.4, QFN20-4×4-0.5, QFN28-4×4-0.45, QFN28-4×4-0.4, QFN40-4×6-0.4, QFN16-4×4-0.65
Test Method: Push-down programming
Key Features: Various specifications, stable performance, simple operation
Shell Material: Special engineering aluminum material with high strength
Contact Technology: Dual-contact / dual-trigger point technology for stable and reliable connection
Probe Design: Replaceable probes for extended service life and cost savings
Please include the IC model, package, input format and target UPH.
QFN Series IC Socket
♦Replaceable Probe Design – Adopts dual-contact technology for more stable contact; probes can be replaced and recycled to reduce long-term costs
♦Push-down Programming – Comfortable push-down feel, reduces operator fatigue during extended use

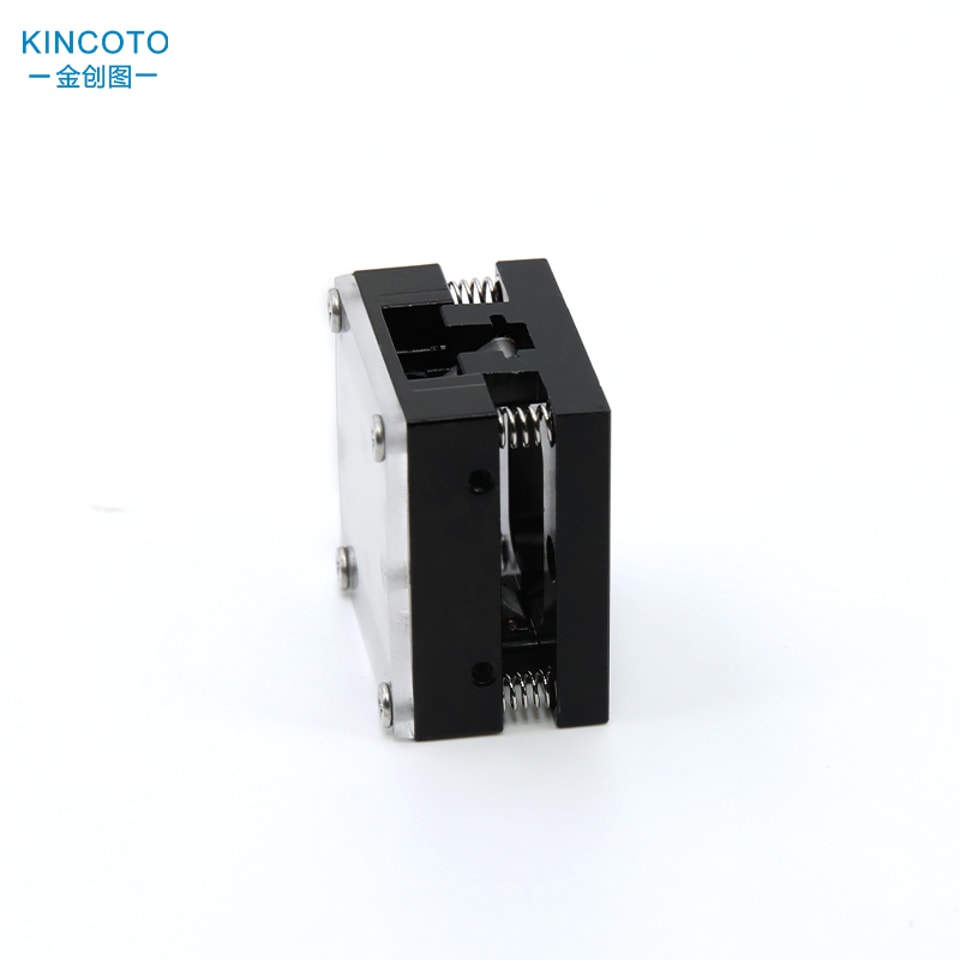

♦Durable Shell Material – Made of special engineering aluminum material with high strength and excellent wear resistance
♦Wide Application – Can be used as programming socket, test socket, burn-in socket, and adapter socket
♦Strong Compatibility – Suitable for various QFN package ICs with different pin counts and sizes
♦Easy to Install – Simple installation process, no complex tools required
♦Fast Delivery & Reliable After-Sales – Quick shipping with full after-sales support
Technical parameters：
| Model | Chip Size | Pin Pitch | Test Method |
| QFN16-4×4-0.65 | 4 × 4 mm | 0.65 mm | Push-down programming |
| QFN20-3×3-0.4 | 3 × 3 mm | 0.40 mm | Push-down programming |
| QFN20-4×4-0.5 | 4 × 4 mm | 0.50 mm | Push-down programming |
| QFN28-4×4-0.4 | 4 × 4 mm | 0.40 mm | Push-down programming |

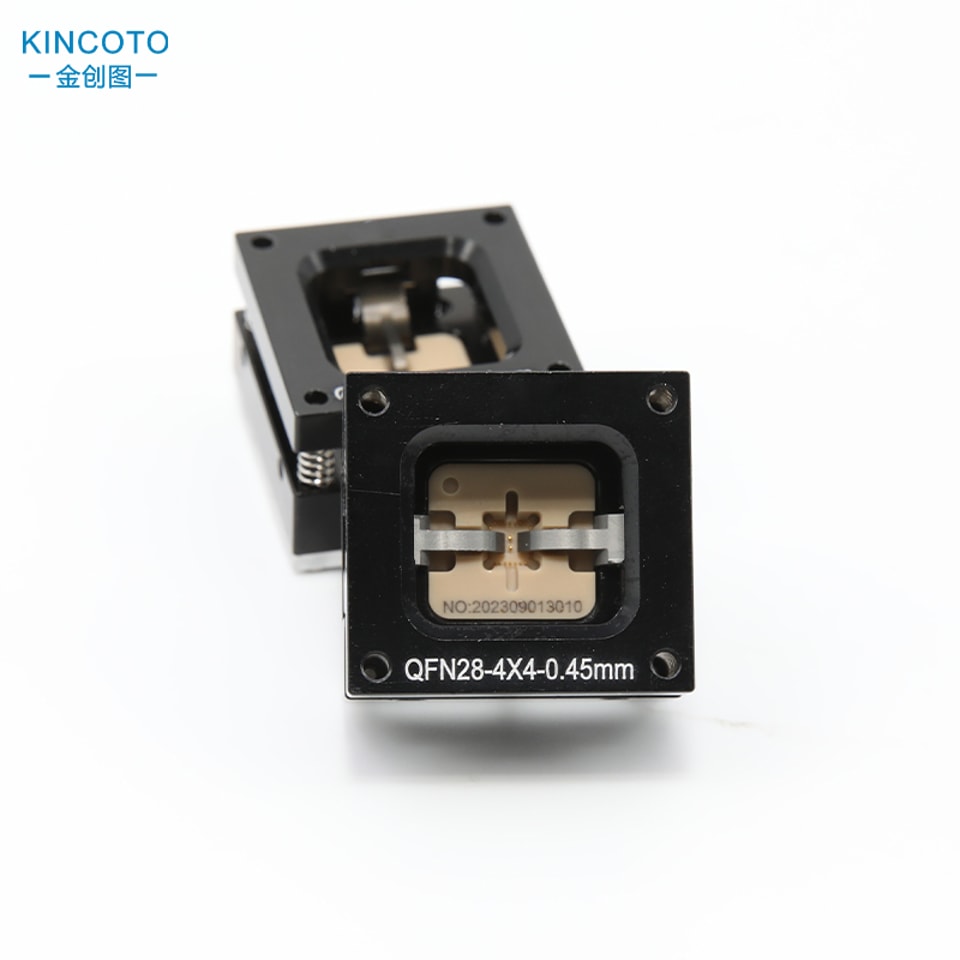

| QFN28-4×4-0.45 | 4 × 4 mm | 0.45 mm | Push-down programming |
| QFN40-4×6-0.4 | 4 × 6 mm | 0.40 mm | Push-down programming |
More models and custom specifications available upon request.
