KINCOTO EQUIPMENT

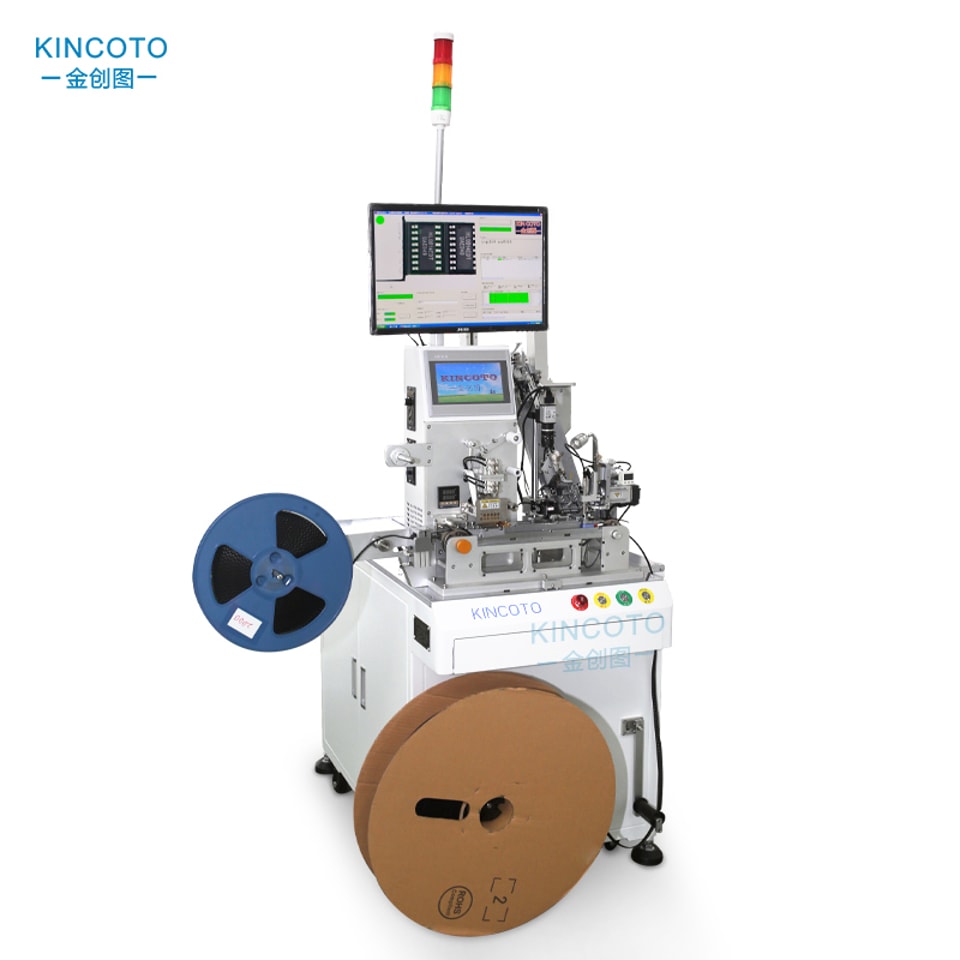

UA18000 Tube to Tape Packaging Machine
Output Efficiency: 12,000 – 18,000 UPH
Supported IC Packages: SOP150 (dedicated) / TSSOP173 (dedicated) – package-specific, not interchangeable
Feed System: Auto tube feeding – supports up to 50 tubes at a time (refillable during operation)
Output System: tape&reel, 13", 15", 22", 27" plastic and paper reels
Machine Type: Tube-to-Tape IC Packaging Machine (NO programming, NO marking, NO printing)
Please include the IC model, package, input format and target UPH.
UA18000 Tube to Tape Packaging Machine
♦Ultra-High Speed Packaging – 12,000–18,000 UPH output – one machine replaces multiple manual workers
♦50-Tube Auto Feed System – Load up to 50 tubes at once; refillable during operation without stopping production
♦Integrated CCD Vision Inspection – 1-megapixel industrial camera with fill light for defect detection and quality control
♦All-in-One Process – Tube input → pick & place → tape sealing → reel winding – fully automated continuous operation
♦Flexible Sealing Options – Supports both self-adhesive and heat-seal tape sealing methods
♦Multi-Reel Compatibility – Supports 13", 15", 22", and 27" plastic and paper reels
♦Precise Temperature Control – Single-head adjustable PID thermostat with precise 120–200°C control for consistent sealing quality
♦Accurate Counting System – Internal pulse counting for precise production tracking and inventory control
♦Space-Saving Compact Design – Small footprint with host size of 1080×1080×2000mm
♦Pure Packaging Solution – Dedicated packaging machine with no programming, no marking, no printing – focused exclusively on high-speed packaging conversion
Technical parameters：
| Output Efficiency | 12,000–18,000 UPH |
| Host Size | 1080 × 1080 × 2000 mm |
| Appearance Size | 1160 × 1110 × 1800 mm |
| Supported Packages | SOP150 dedicated / TSSOP173 dedicated |
| Voltage | 220 V |
| Tube Feed | Up to 50 tubes |
| Carrier Standard | EIA-481A-compatible return wheel and matching cover tape |
| Temperature Control | Single-head adjustable PID, 120–200 °C |
| Tape Range | Width ≤16 mm; pocket depth ≤3 mm |
| Sealing | Self-adhesive / heat seal |
| Reels | 13, 15, 22, 27 inch plastic or paper |
| Vision | 1-megapixel industrial camera with light source |
| Pressure Detection | −50 kPa to +50 kPa |
| Weight | 350 kg |

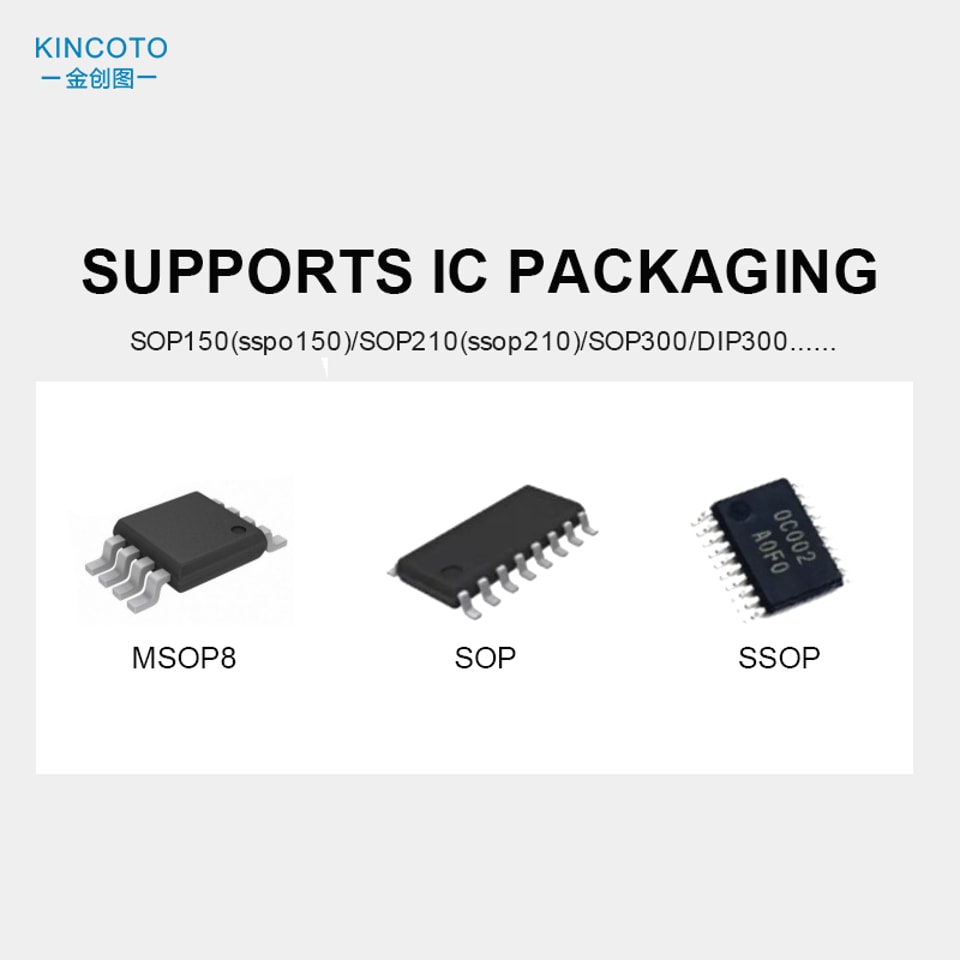

Suitable for programming chip packaging:

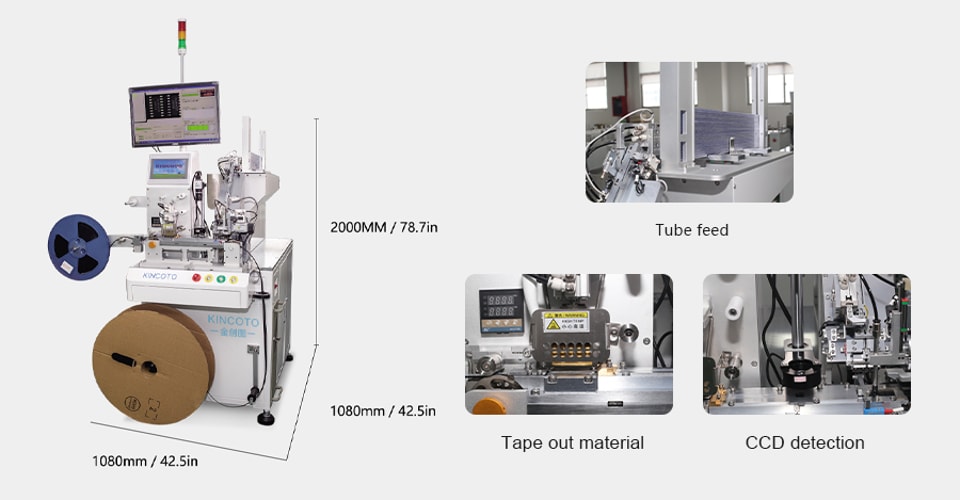

Product dimensions:

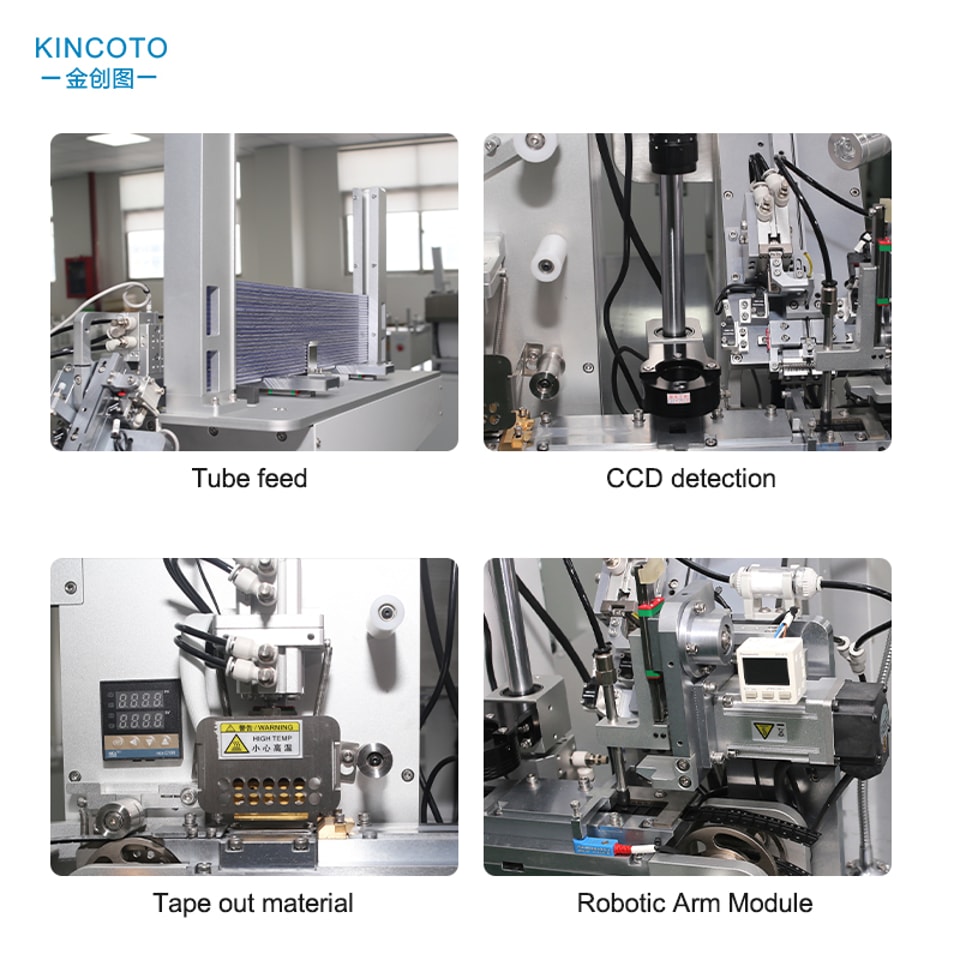

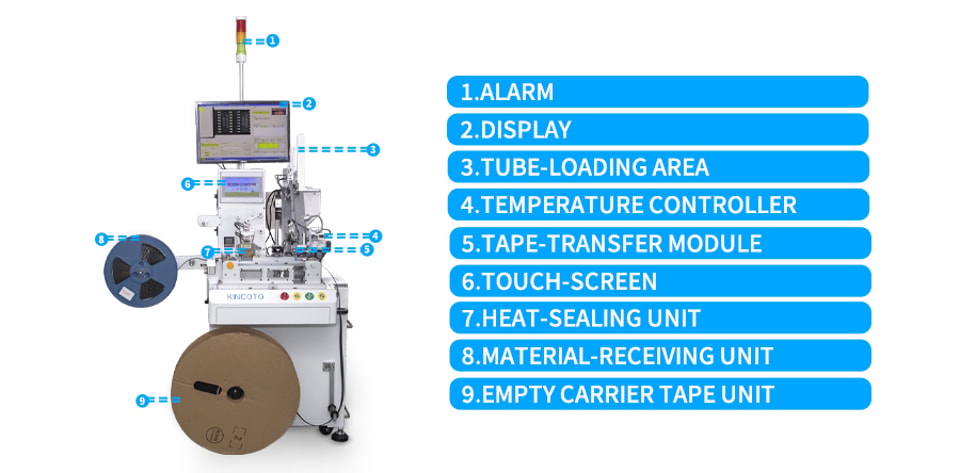

Product Structure：
Package：
Group photo during factory visit：
