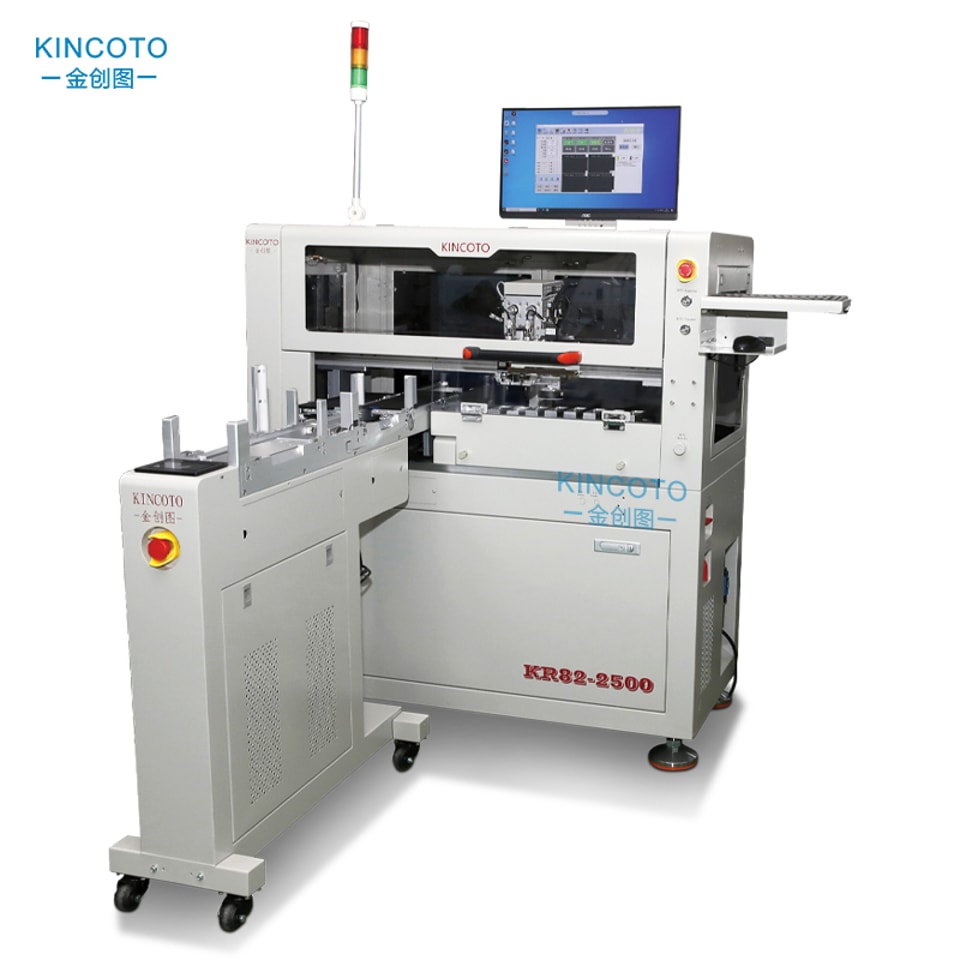

Full Auto Tray Programming Machine KR82-2500H
- Support IC incoming materias packaging into trays,automatic tray feeding can support 20 trays.
- Support offline programmer.
- 8 programming stations, 1-8 programming stations can be customized to start.
- Optional dotting function, simple and convenient operation, easy to use.
- Adopt high-precision mechanical structure, ensuring stable and efficient operation.
Sales engineeringsale@kincoto.com
Please include the IC model, package, input format and target UPH.

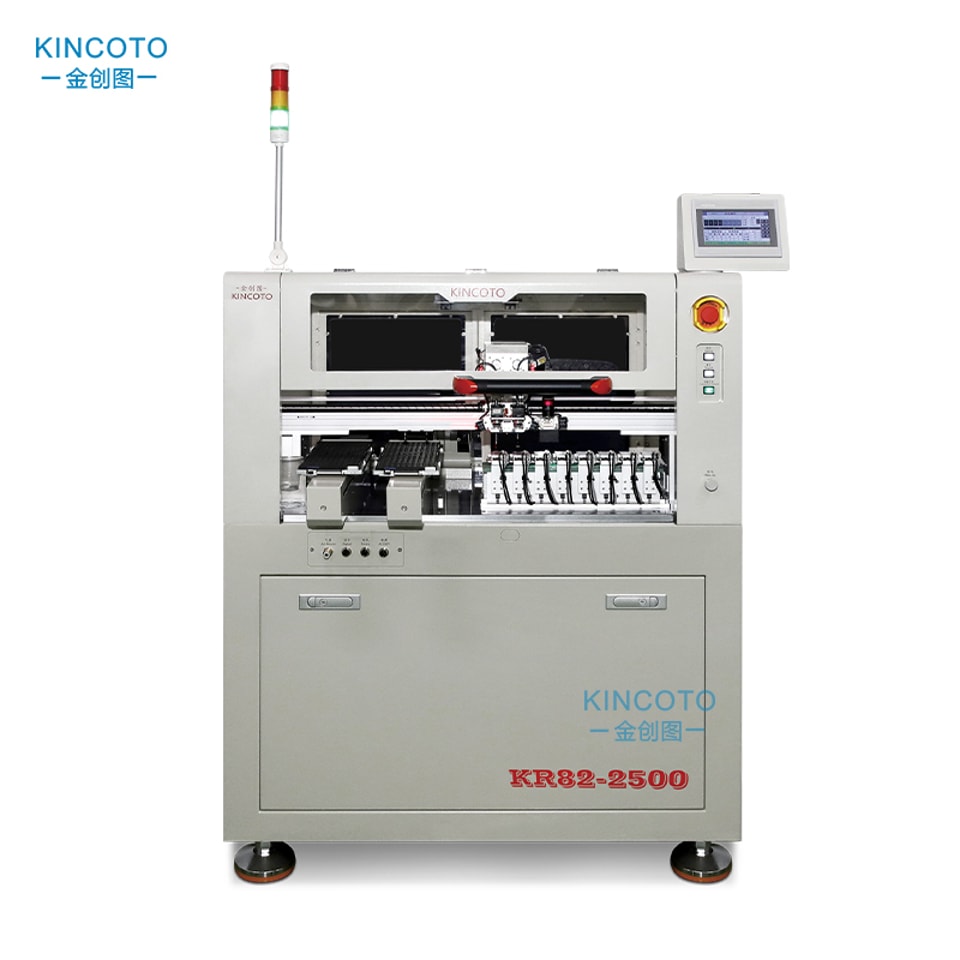

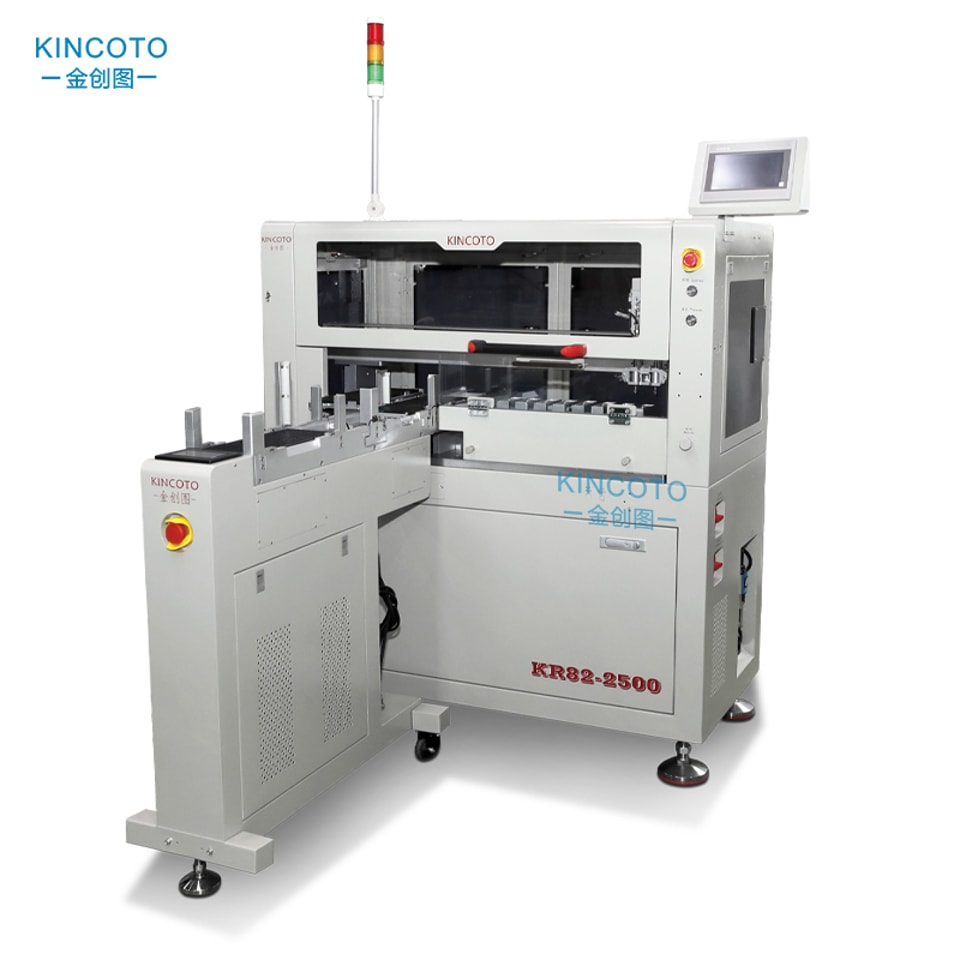

KR82-2500H Tray Programming Machine
- Support IC incoming materias packaging into trays,automatic tray feeding can support 20 trays.
- Support offline programmer.
- 8 programming stations, 1-8 programming stations can be customized to start.
- Optional dotting function, simple and convenient operation, easy to use.
- Adopt high-precision mechanical structure, ensuring stable and efficient operation.
- Equipped with complete production data record, convenient for production management and traceability.
- Chip for marking and dotting function
- A dot function can be added when the tape is woven out.(Red, blue, yellow, green, orange)
Technical parameters：
| output efficiency | 2500UPH |
| Overall size | 1200*580*1450mm |
| Supports ic packaging | QFP/QFN/SOP/BGA.... |
| Programmming station | 8 stations |
| pick-and-place device | 2 vacuum nozzles |
| Monitor | 7"LCD |
| Pick and place accuracy | 0.03mm |
| Control mode | Motion contral card |
| X-axis | Linear motor |
| programming mode | Lower preassure socket |
| Feeding device | Standard 12-16mm optional 8-32mm feeder |
| Input voltage | AC220/50HZ |
| power | 0.25kw |
| Toal weight | 426kg |
Suitable for programming chip packaging:
Product dimensions:

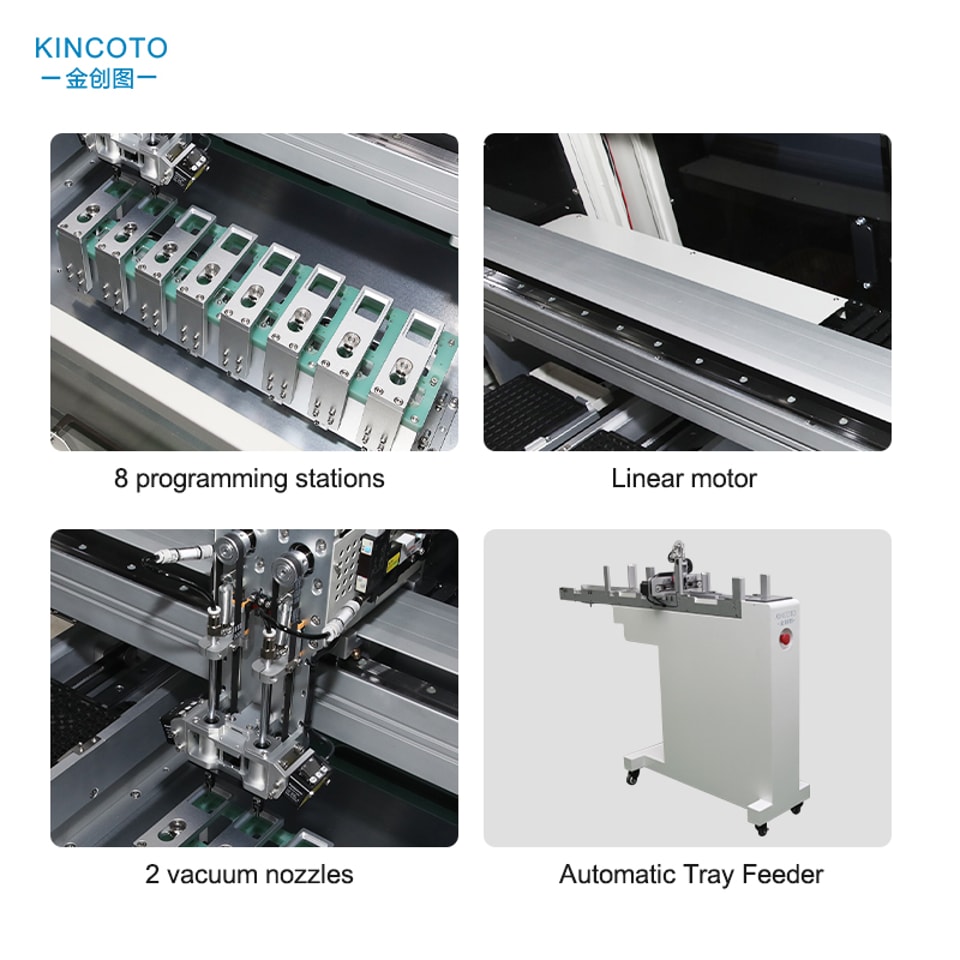

Product Structure：
Package：
Group photo during factory visit：
