IC programming automation
Review the equipment configuration, application fit and validation requirements.
KINCOTO EQUIPMENT
1213D tube programming machine
•Supportis ic packaging:sop150/sop210/sop300/DIP300
•Output efficiency:3000UPH
•Programming station:4 stations
•Feeding mode: Automatic receiving 12 tubes
•Receiving method:Automatic receiving 13 tubes of which 1tube NG
Please include the IC model, package, input format and target UPH.
1213D tube programming machine
♦The feed is 12 tubes, and there are 4 programming stations. After the programming, the output is
divided into 12 tubes OK and 1 tube NG.
♦During the programming proces,the IC is automaticaly judged as OK or NG, and the IC is
♦For different package quantities, you can set the number of ICs filled in each tube.
♦Automatically record the number of OK and NG of the programmed IC. This data will not be lost
even if the power is turned off.
♦Supports commercially available offline programming programmers or self-made programmers.
The equipment only uses power and does not require an air source
Technical parameters：
| Qutput efficiency | 3000UPH |
| Host size | 460*410*730MM（length,width and height) |
| Supports ic packaging | SOP150/SSOP150/SOP210/SSOP210/SOP300/DIP300.. |
| Programming station | 4 sations(probe) |
| Air humidity | 10-95%(no condensation) |
| Feeding mode | Automatic receiving 12 tubes |
| Receiving method | Automatic receiving 13 tubes of which 1 tube NG |
| Operating interface | LCD |
| Programming mode | Embedded control panel |
| Input voltage | AC220/50HZ |
| Power | 0.18KW |
| Total weight | 26kg |
| Support programmer | SINOMCU/HOLYCHIP/SONIX/ELAN/HOLTEK/PADAUK/HYUNDAI... |

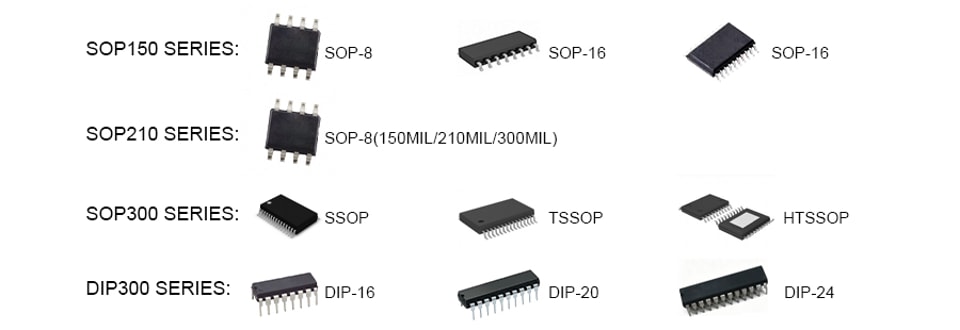

Suitable for programming chip packaging:
♦Note: Please send us your chip dimensions so we can determine if the machine is compatible.

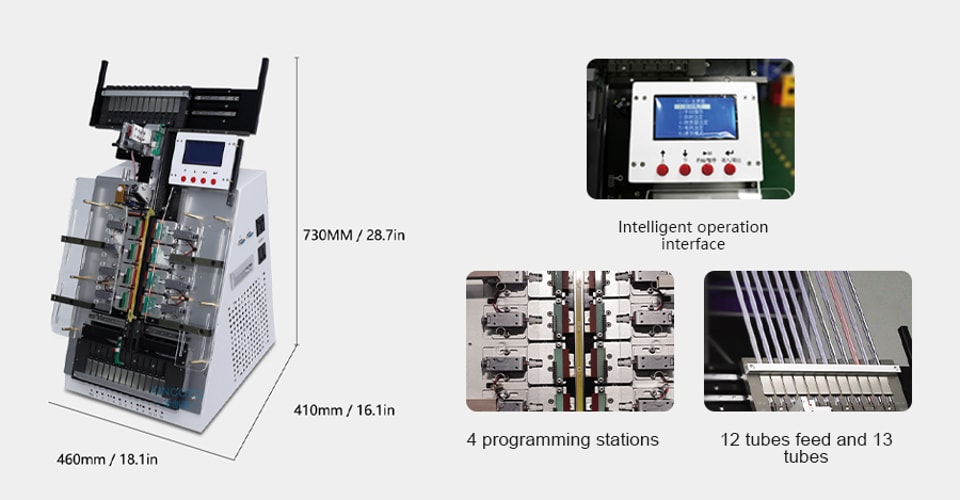

Product dimensions:

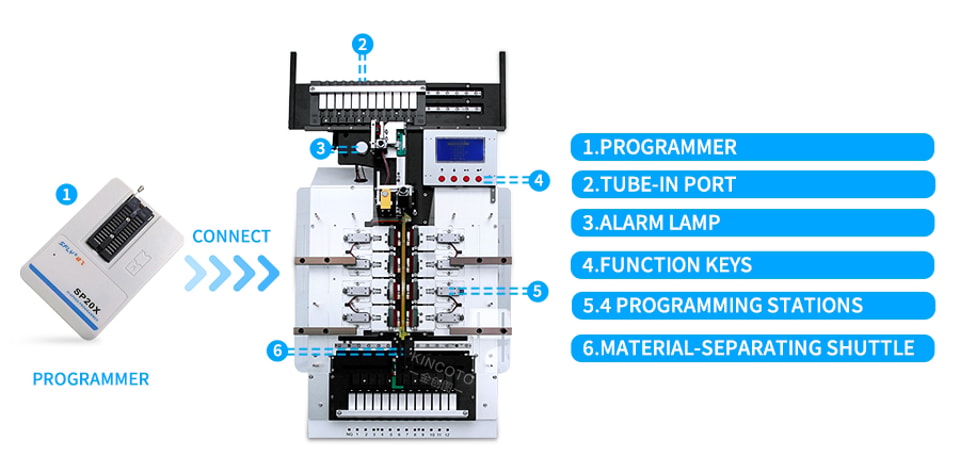

Product Structure：
Package：
