1213D tube programming machine
- High Precision Instrument
- ISO 17025 Certified
- Full Technical Support
Supportis ic packaging:sop150/sop210/sop300/DIP300
Output efficiency:3000UPH

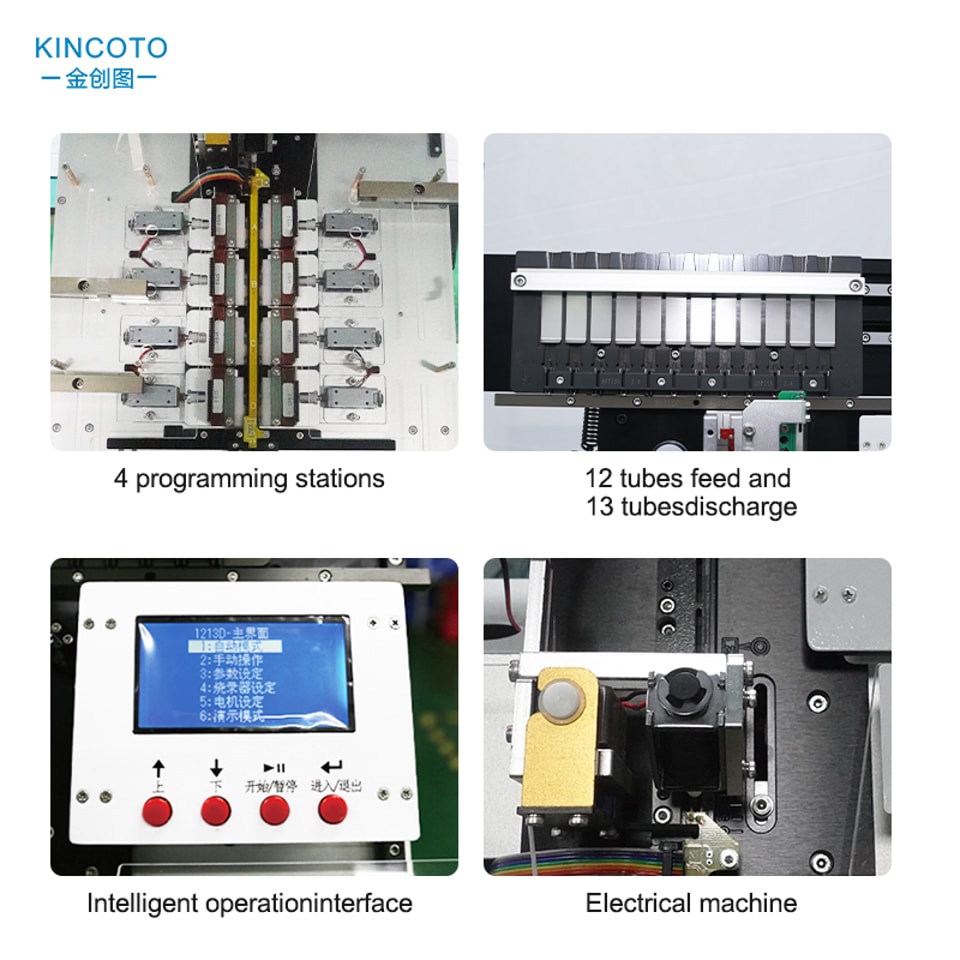

The feed is 12 tubes, and there are 4 programming stations. After the program-
ming, the output is divided into 12 tubes OK and 1 tube NG.
TO
During the programming process, the IC is automatically judged as OK or
NG, and the IC is automatically discharged to the discharge tube.
For different package quantities, you can set the number of ICs filled in each
tube.
Automatically record the number of OK and NG of the programmed IC. This
data will not be lost even if the power is turned off.
Supports commercially available offline programming programmers or
self-made programmers.
The equipment only uses power and does not require an air source.
| Qutput efficiency | |
| Host size | |
| Supports ic packaging | |
| Programming station | |
| Air humidity | |
| Feeding mode | |
| Receiving method | |
| Operating interface | |
| Programming mode | |
| Input voltage | |
| Power | |
| Total weight | |
| Power | |
| Total weight | |
| Support programmer |
