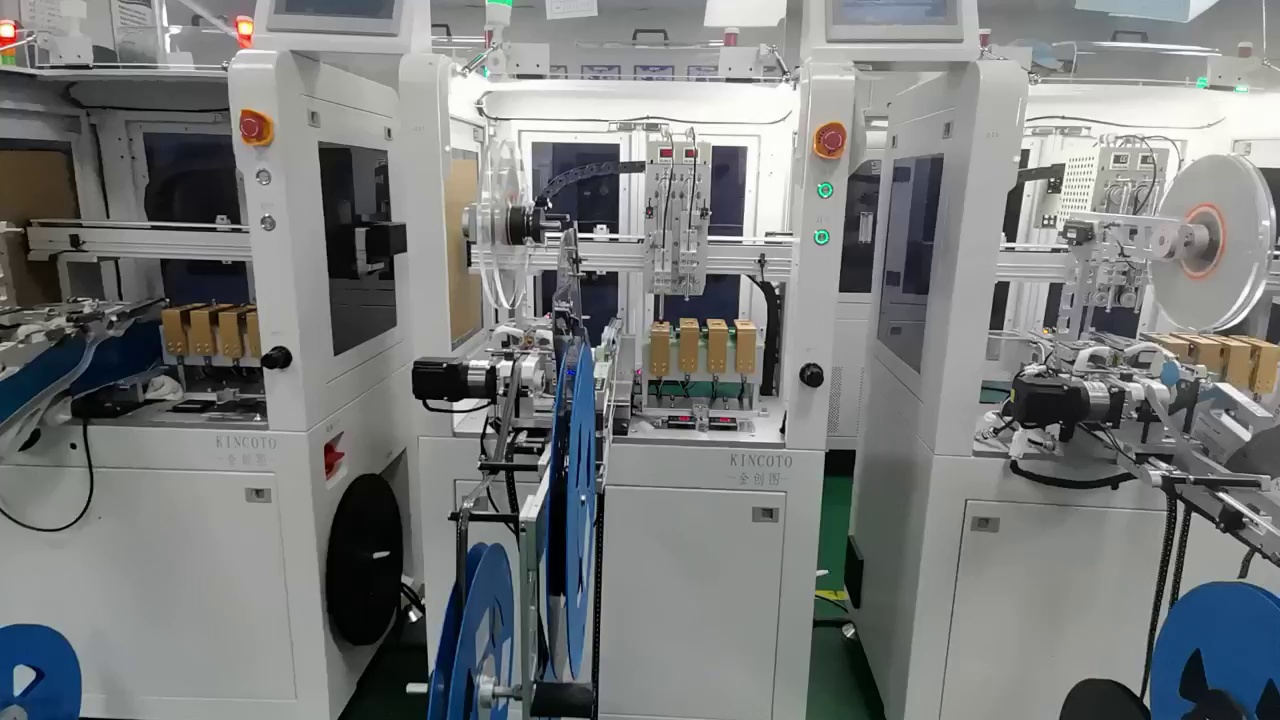

Automatic Tape Programming Machine KA42-2000
This is an IC automatic burning machine that supports the packaging of IC incoming materials into tape, realizes the tape in and out, automatic packaging after burning, and automatically distinguishes between OK and NG.
Product Features:
- Small size and high efficiency
For tape IC packaging
Electric feed feeder
Support bounce-type programming socket
X-axis with screw rod with higher precision
Technical Parameters:
|
Output Efficiency |
2000UPH |
|
Host Dimension |
870*560*1630mm(Length, width,height) |
|
Host + Taping Dimension |
870*1170*1630mm(Length, width,height) |
|
Support IC Package |
QFN,SOP,SSOP,TSSOP,SON,QFP... |
|
Pick & Place Device |
Vacuum nozzle*2 |
|
Programming Station |
4 |
|
Monitor |
7’’LCD |
|
Pick & place Accuracy |
±0.03mm |
|
Control Method |
Embedded control board |
|
Programming Method |
Down-press type IC socket |
|
Feeding Device |
Standard 12-16mm optional 8-32mm feeder |
|
Discharge Device |
Adjustable automatic hot-pressing film sealing device |
|
Input Voltage |
AC220/50Zhz |
|
Power |
0.25kw |
|
Air Source |
0.4-0.6MPA |
|
Total Weight |
140KG |
This is an IC automatic burning machine that supports the packaging of IC incoming materials into tape, realizes the tape in and out, automatic packaging after burning, and automatically distinguishes between OK and NG.
- X, Z axis manipulator, double nozzles:
Instead of manually picking and placing a single IC;
One pick-and-place suction pen design；
- Signal communication connection:
Support offline burner (subject to the actual function!);
When the programming is completed, the OK and NG ICs are automatically distinguished and placed in the corresponding position coordinates that have been set;
- Inbound and outbound packaging support:
Support roll-in and roll-out;
No-load can be recycled and reused;
- Burning station:
Can customize 1-4 burning stations to start;
Replace the corresponding programming socket for different packages;
The programming sockets of different packages can be pre-installed according to the needs, which is more convenient to use;
- UPH output:
The burning completion time of burning files is within 5 seconds, and the efficiency is 1500-1800 pieces/hour;
Reference. The general mcu efficiency is about 1800 pcs/h;
If the programming time is greater than 5 seconds, the efficiency will be relatively reduced;
- Data and formula:
Customizable programming OK and feed quantity, NG continuous alarm limit quantity, automatic recording of other production quantities;
The programming formula can be customized to facilitate the replacement of different content programming;
- Authority and operation:
Can be second-level authorization, standardized management;
LCD touch operation, convenient and easy to understand;
Overall size: 680*550*1400mm (length*width*height, almost the size of the ceiling);
Input voltage: AC220V/50Hz
Power: 0.25KW;
Air source: 0.4-0.6MPa
Total amount: 140KG
